Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
NEB2B100B

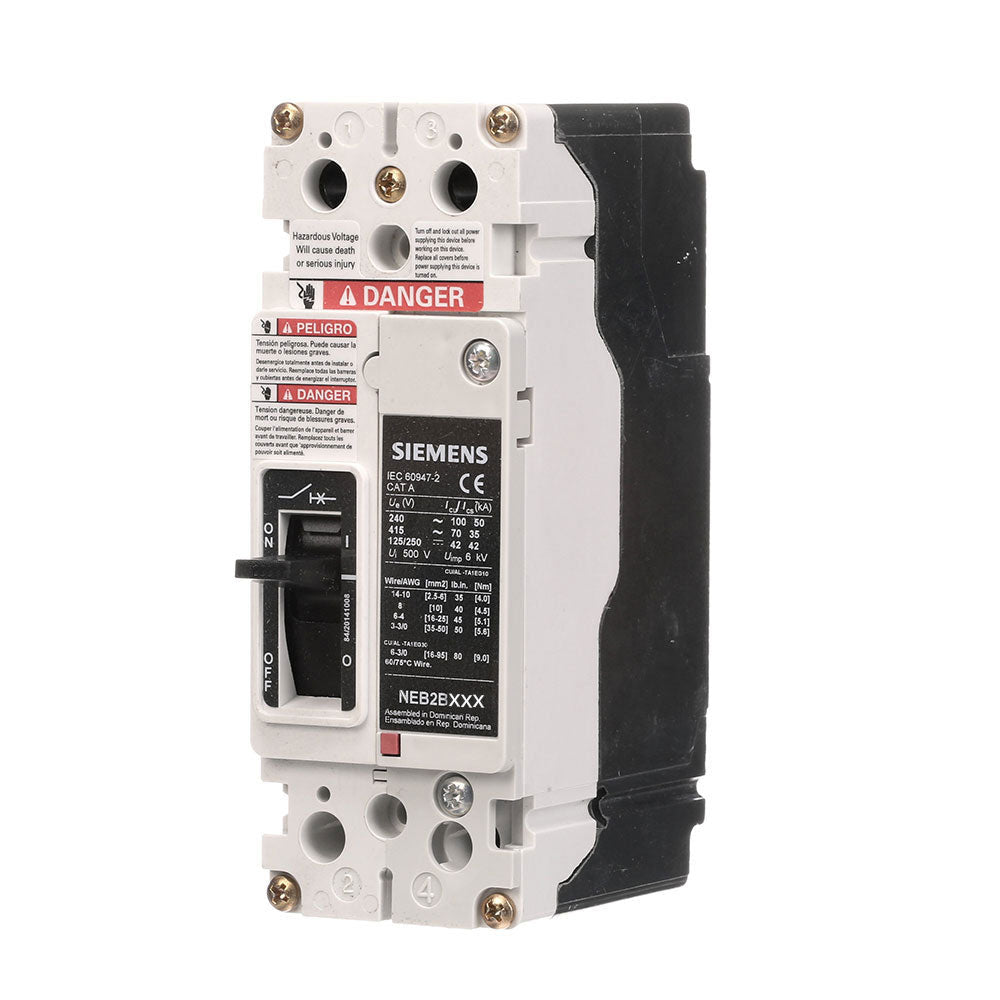

NEB2B100B is a Siemens 2-pole molded case circuit breaker rated for 100 amps and 600 volts with a bolt-on mounting type.This Siemens NEB2B100B circuit breaker features a 35kA interrupting rating at 480 volts, thermal magnetic trip unit, and is designed for panelboard applications. It supports single-phase operation and includes load side lug terminals. The breaker is UL and CSA certified and suitable for use in commercial and industrial electrical distribution systems.
- Amperage: 100A
- Voltage Rating: 600V
- Poles: 2
- Mounting Type: Bolt-On
- Interrupt Rating: 35kA @ 480V
- Trip Unit: Thermal Magnetic
- Phase: Single-Phase
- Series/Frame: NEB Series
- Certifications: UL, CSA
- Load Side Lug Terminals Included
- Standard Interrupting Capacity
- Ambient Temperature Rating: 40°C
Specifications
- Part Number: NEB2B100B
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : NEB Series
- Type : NEB
- Voltage : 600
- Amperage : 100
- Phase : 1
- Poles : 2
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous Trip
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783643558465
- GTIN : 00783643558465
- Country of Origin : Dominican Republic
- Dimensions : 3.543 x 6.693 x 3.937 inch
- Weight : 2.006
