Description
NEB1B020B

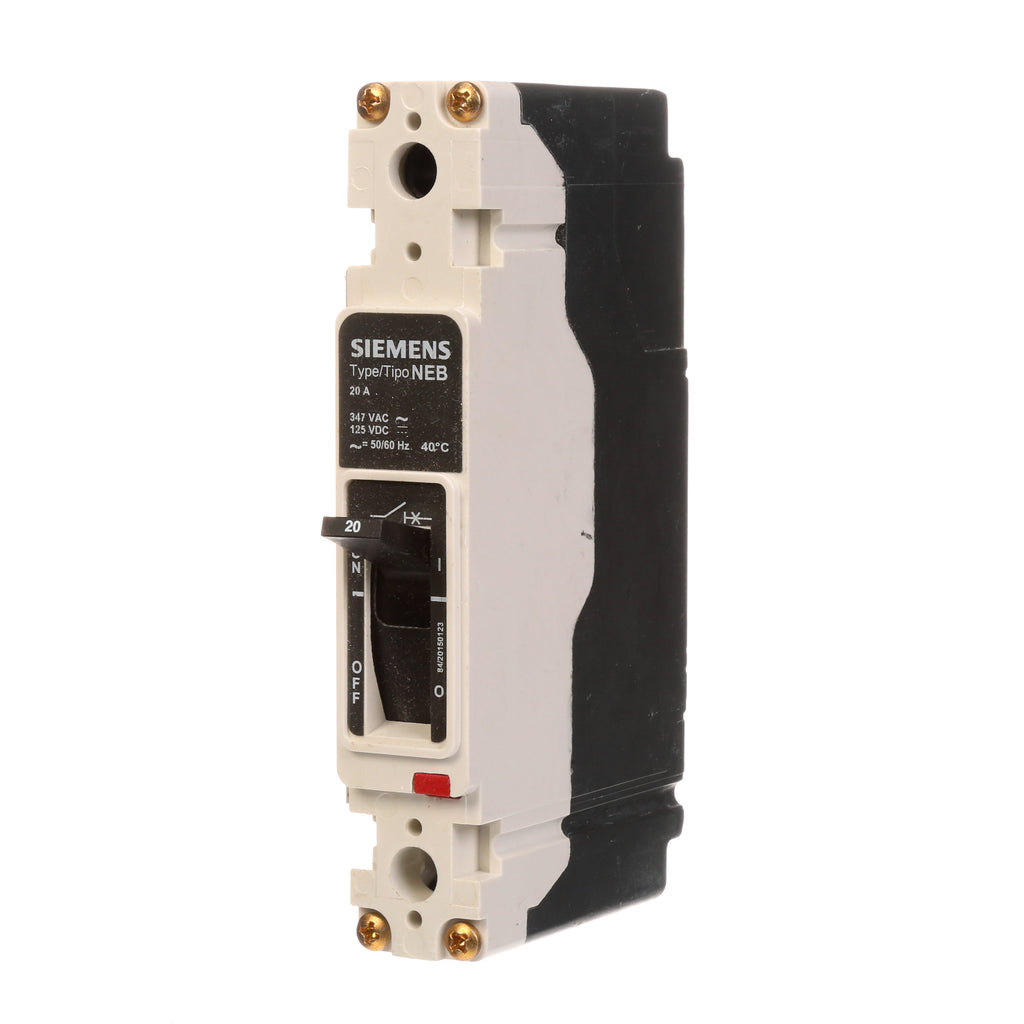

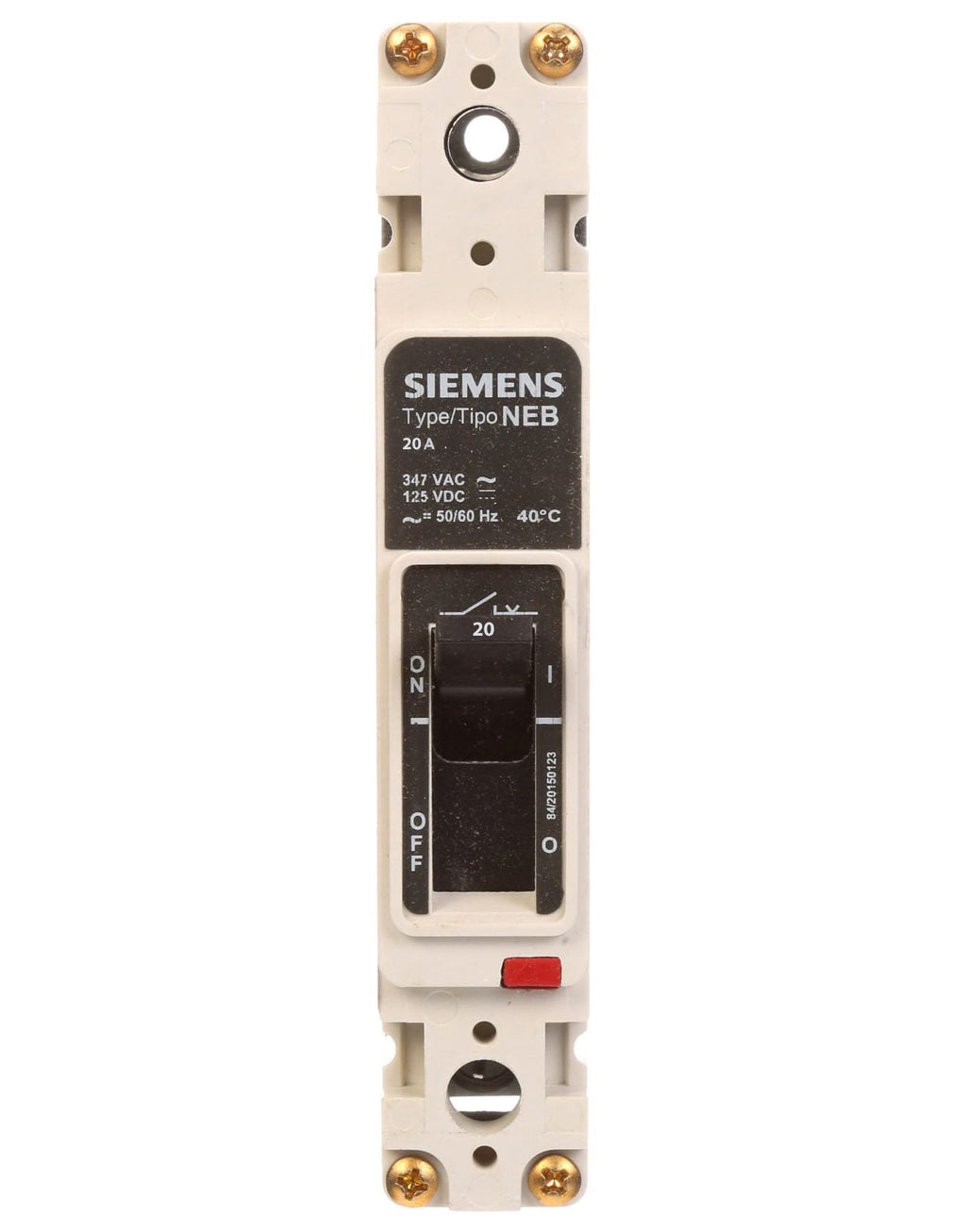

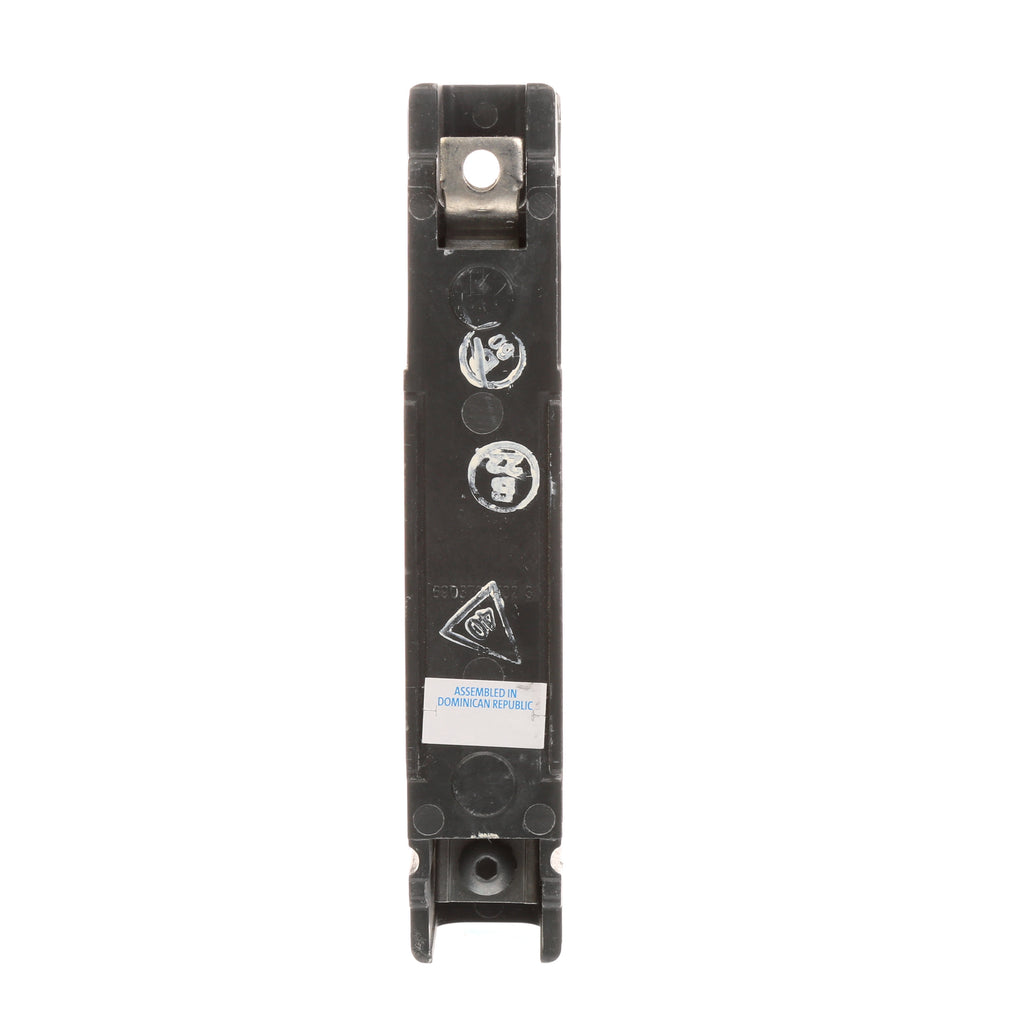

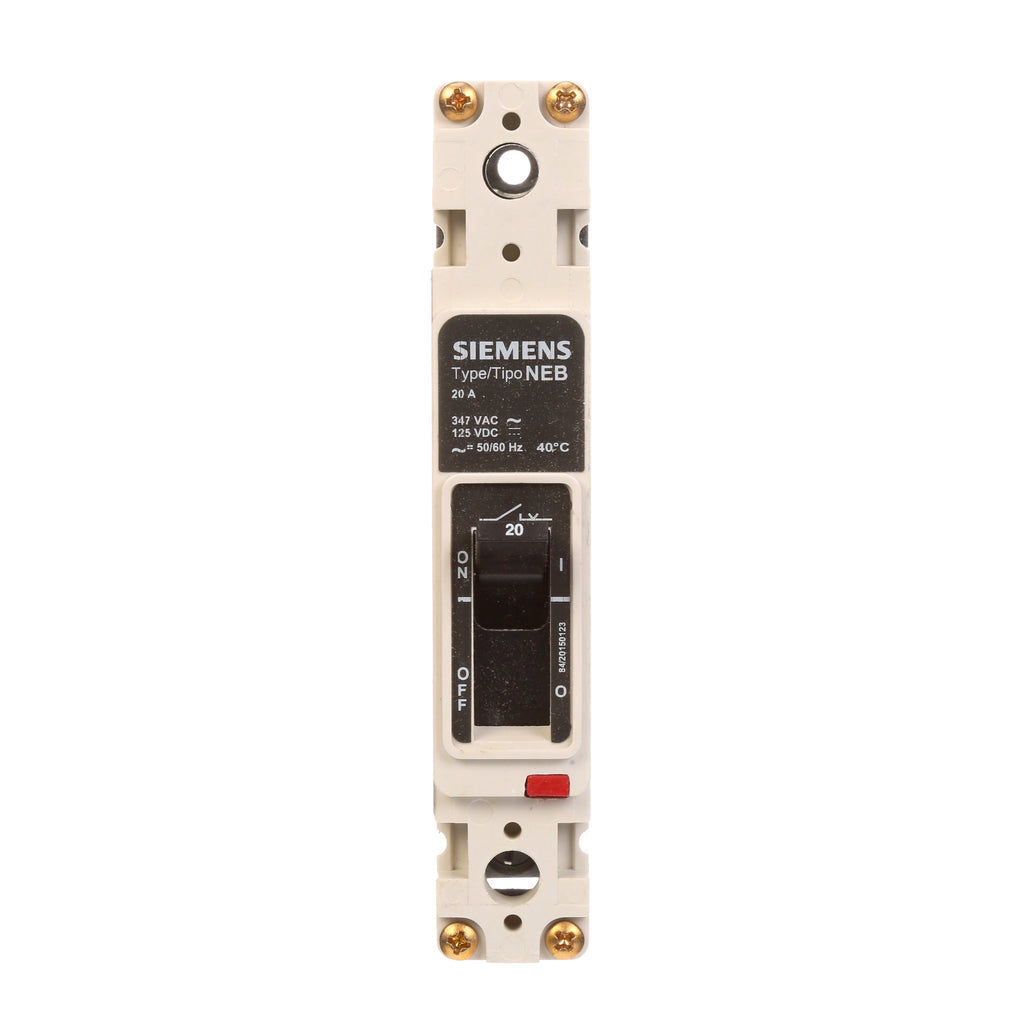

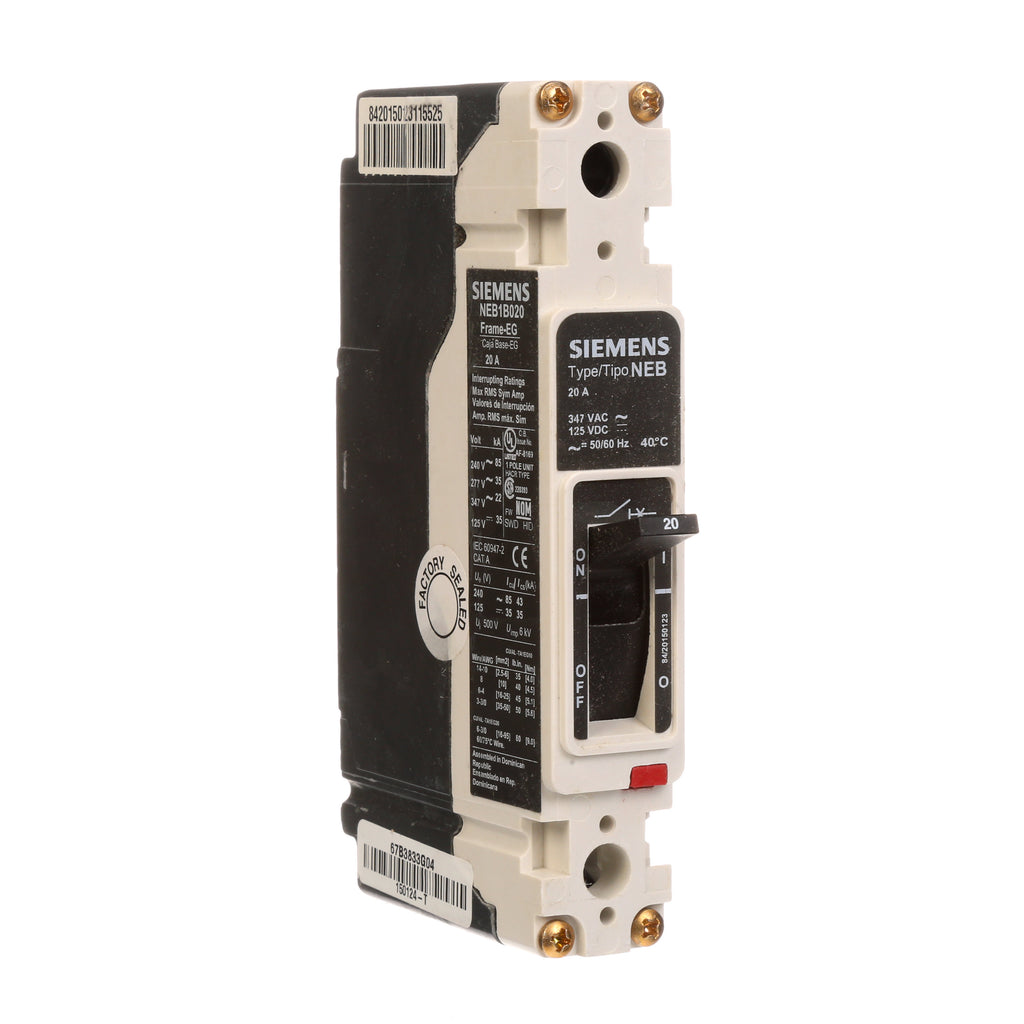

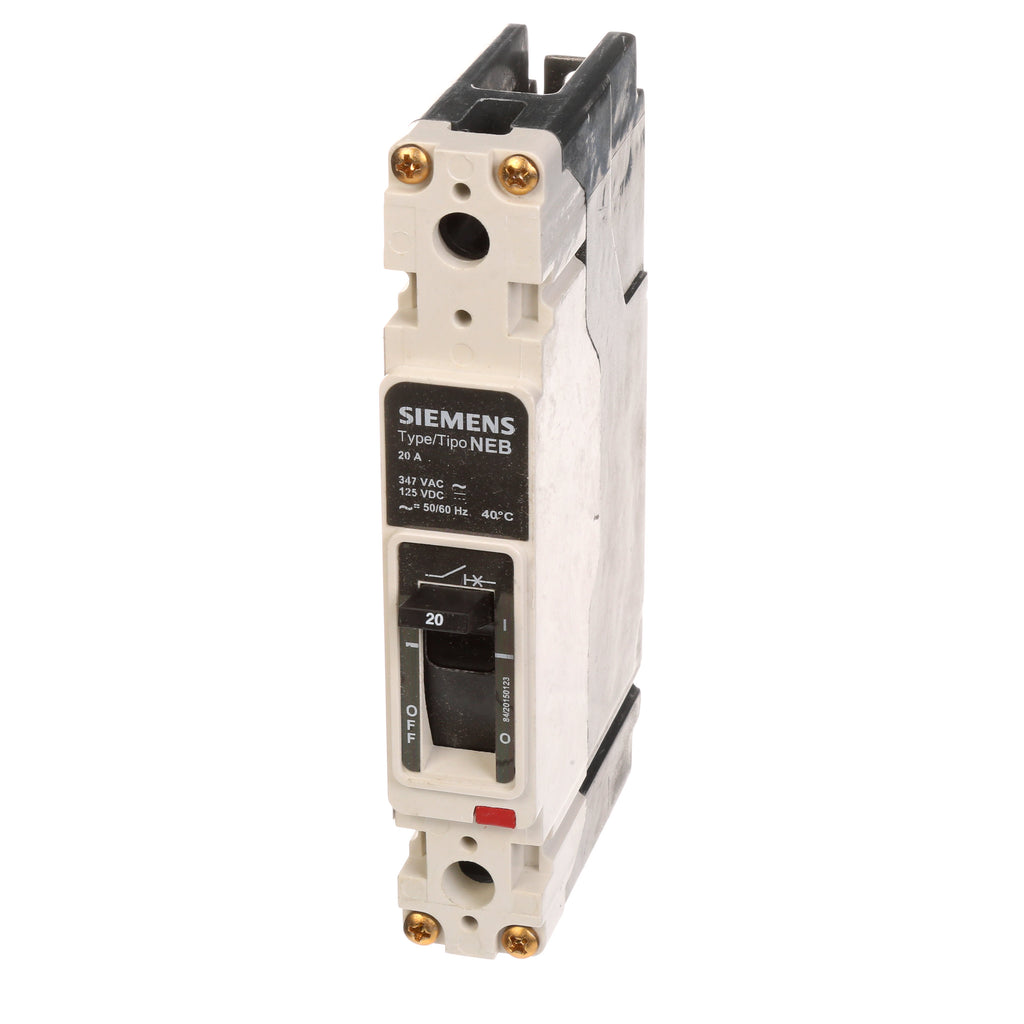

NEB1B020B is a Siemens 1 pole, 20 amp, 277 volt thermal magnetic molded case circuit breaker designed for panelboard mounting.This Siemens NEB series breaker features a bolt-on connection type, a 35kA interrupting rating at 277 VAC, and is UL 489 and CSA certified. It supports wire sizes from 14 to 1/0 AWG and is suitable for use in low voltage applications requiring reliable overcurrent protection.
- Key Specifications
- Manufacturer: Siemens
- Series: NEB
- Amperage: 20A
- Voltage: 277 VAC
- Poles: 1
- Mounting Type: Bolt-On
- Interrupt Rating: 35kA at 277 VAC
- Trip Unit: Thermal Magnetic
- Wire Size Range: 14 to 1/0 AWG
- Certifications: UL 489 Listed, CSA Certified
- Connection: Load Side Lug Terminals
- Phase: Single
Specifications
- Part Number: NEB1B020B
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : NEB Series
- Type : NEB
- Voltage : 277
- Amperage : 20
- Phase : 1
- Poles : 1
- AIC rating : 35kA@277V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous Trip
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783643558151
- GTIN : 00783643558151
- Country of Origin : Dominican Republic
- Weight : 1.257
- Wire Size : AWS 8 to AWS 1/0, Cu/Al
