Product Info
- Manufacturer:American/Federal Pacific
- Sub-Category:Molded Case
Description
NE234045

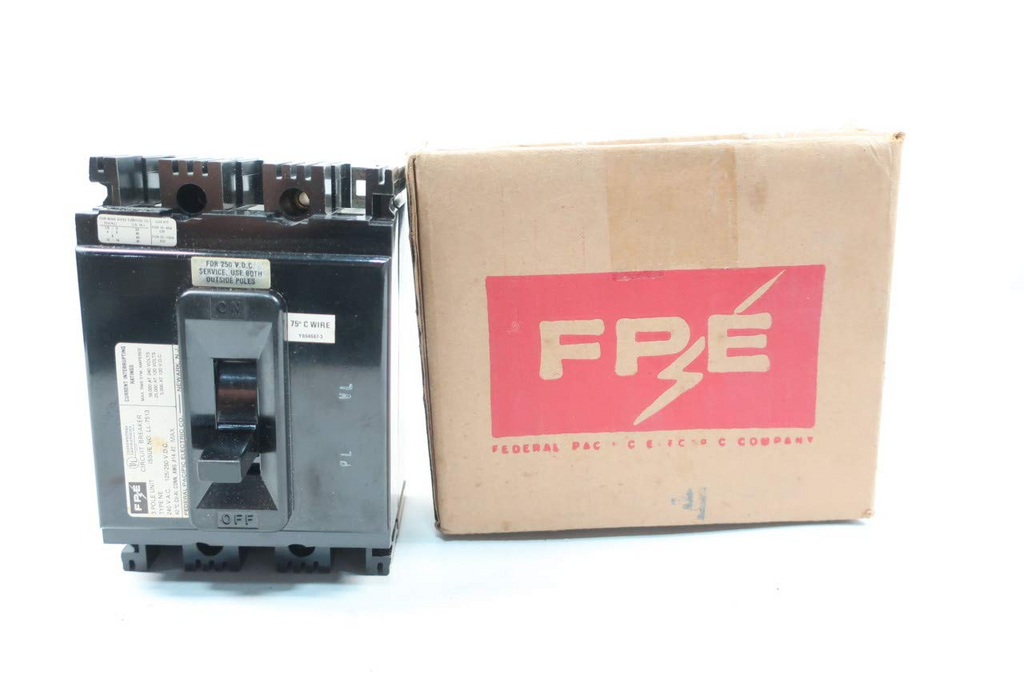

NE234045 is a 3-pole thermal magnetic circuit breaker from American/Federal Pacific designed for 45 amp, 240 volt AC applications.
This molded case breaker features a bolt-on NE frame with long-time and instantaneous trip functions, providing reliable overcurrent protection. It has a thermal magnetic trip unit with non-interchangeable trip and load side lug terminals. The breaker offers an 18kA interrupt rating at 240V and is suitable for three-phase electrical systems.
- Key Specifications
- Manufacturer: American/Federal Pacific
- Part Number: NE234045
- Amperage: 45 Amps
- Voltage: 240 VAC
- Poles: 3
- Frame Type: NE Frame
- Trip Unit: Thermal Magnetic, Long-Time and Instantaneous
- Interrupt Rating: 18kA at 240V
- Mounting Type: Bolt-On
- Terminal Type: Load Side Lug Terminals
- Phase: 3 Phase
- Non-Interchangeable Trip
- Part Number: NE234045
- Manufacturer : American/Federal Pacific
- Brand : American/Federal Pacific
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : NE Series
- Type : NE
- Voltage : 240
- Amperage : 45
- Phase : 3
- Poles : 3
- AIC rating : 18kA@240V
- Connection : Bolt-On
- Functions : Long Time and Instantaneous
- Protection : Thermal Magnetic
- Weight : 8
