Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
ND63T100

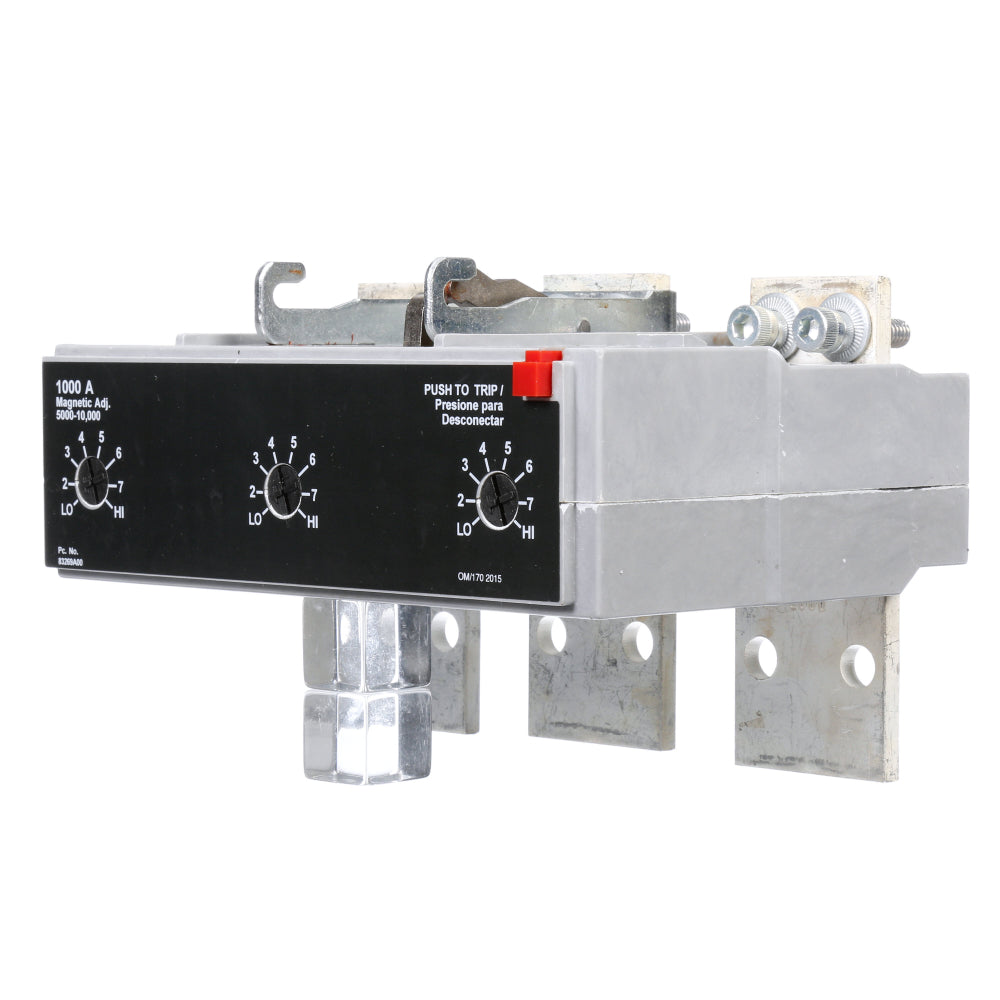

ND63T100 is a Siemens 3 pole circuit breaker trip unit rated for 1000 amps and 600 volts with thermal magnetic protection.This trip unit is designed for use with Siemens ND, NXD, HND, HNXD, and CND frames. It features an interrupting rating of 25kA at 600V AC and is interchangeable within compatible breaker frames. The trip unit provides long-time and instantaneous protection functions with a standard 40°C rating.
- Amperage: 1000A
- Voltage: 600V AC
- Poles: 3
- Mounting Type: Bolt-On (frame compatible)
- Interrupt Rating: 25kA @ 600V
- Series/Frame: ND, NXD, HND, HNXD, CND
- Trip Unit Type: Interchangeable Thermal Magnetic
- Protection Functions: Long-Time and Instantaneous
- Trip Unit Rating: 40°C standard
- Certifications: UL Listed and other standard electrical certifications
Specifications
- Part Number: ND63T100
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : ND
- Voltage : 600
- Amperage : 1000
- Phase : 3
- Poles : 3
- AIC rating : 50kA@480V
- Connection : Bolt-On
- Functions : LI - Long Time and Instantaneous Trip
- Amperage Maximum : 1000
- Protection : Thermal Magnetic
- Compatible Frames : ND,HND
Product Data
- UPC : 783643215689
- GTIN : 00783643215689
- Country of Origin : Mexico
- Weight : 6.1
- Wire Size : 250KCM to 500KCM, Cu/Al
