2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:American
- Sub-Category:Molded Case
Description
NA215

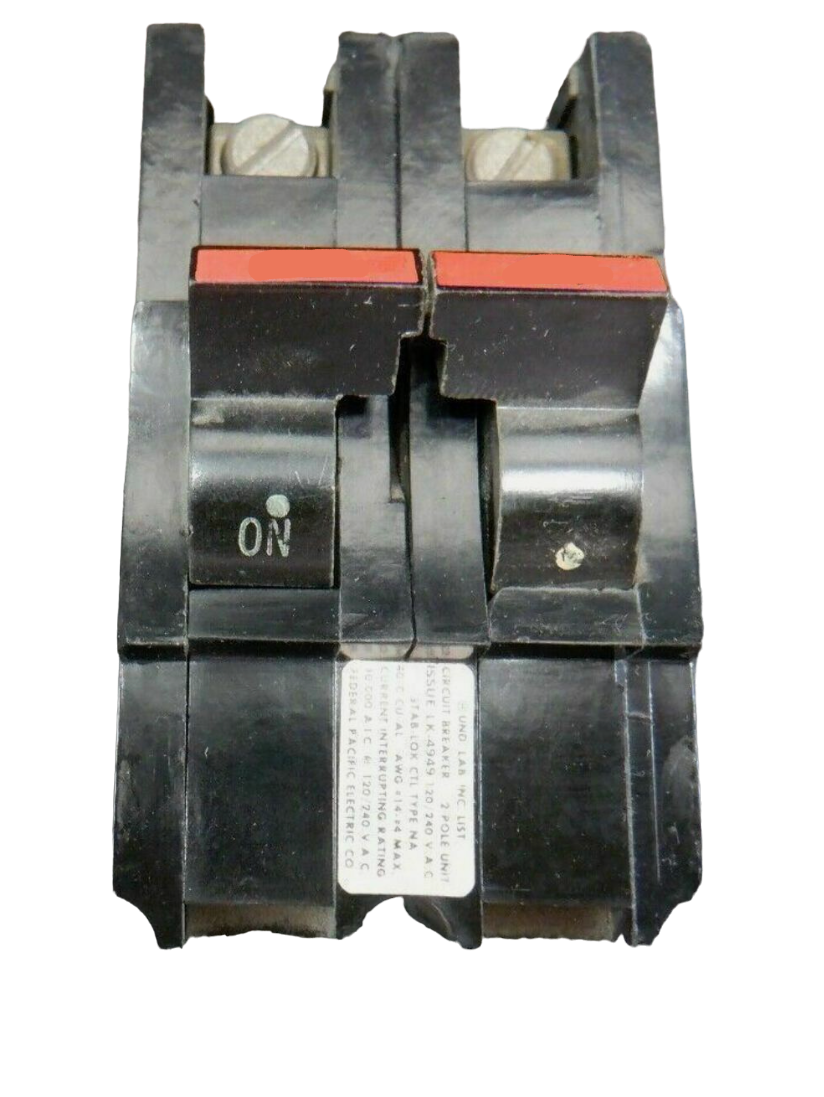

NA215 is a 15 Amp, 2 Pole molded case circuit breaker from American's NA series designed for 240 Volt applications.This NA215 circuit breaker features a plug-in mounting style and is rated for 15 amps at 240 volts AC. It has a 10kA interrupting rating at 240V and includes thermal magnetic trip functions with long time and instantaneous trip capabilities. The breaker is single phase and part of the Stab-Lok family, providing reliable protection for electrical circuits.
- Manufacturer: American
- Part Number: NA215
- Amperage: 15 Amps
- Voltage: 240 Volts AC
- Poles: 2
- Mounting Type: Plug-In
- Interrupt Rating: 10kA @ 240V
- Series/Frame: NA (Stab-Lok family)
- Trip Unit: Thermal Magnetic (Long time and instantaneous)
- Phase: Single
- Load Side Lug Terminals
Specifications
- Part Number: NA215
- Manufacturer : American
- Brand : Federal Pioneer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Stab-Lok
- Type : NA
- Voltage : 240
- Amperage : 15
- Phase : 1
- Poles : 2
- AIC rating : 10kA@240V
- Connection : Plug-In
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 796716594512
- Dimensions : Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
- Weight : 9.6
- Certification : CSA
- Wire Size : AWG 14...AWG 2 copper
