Description
N1J12104

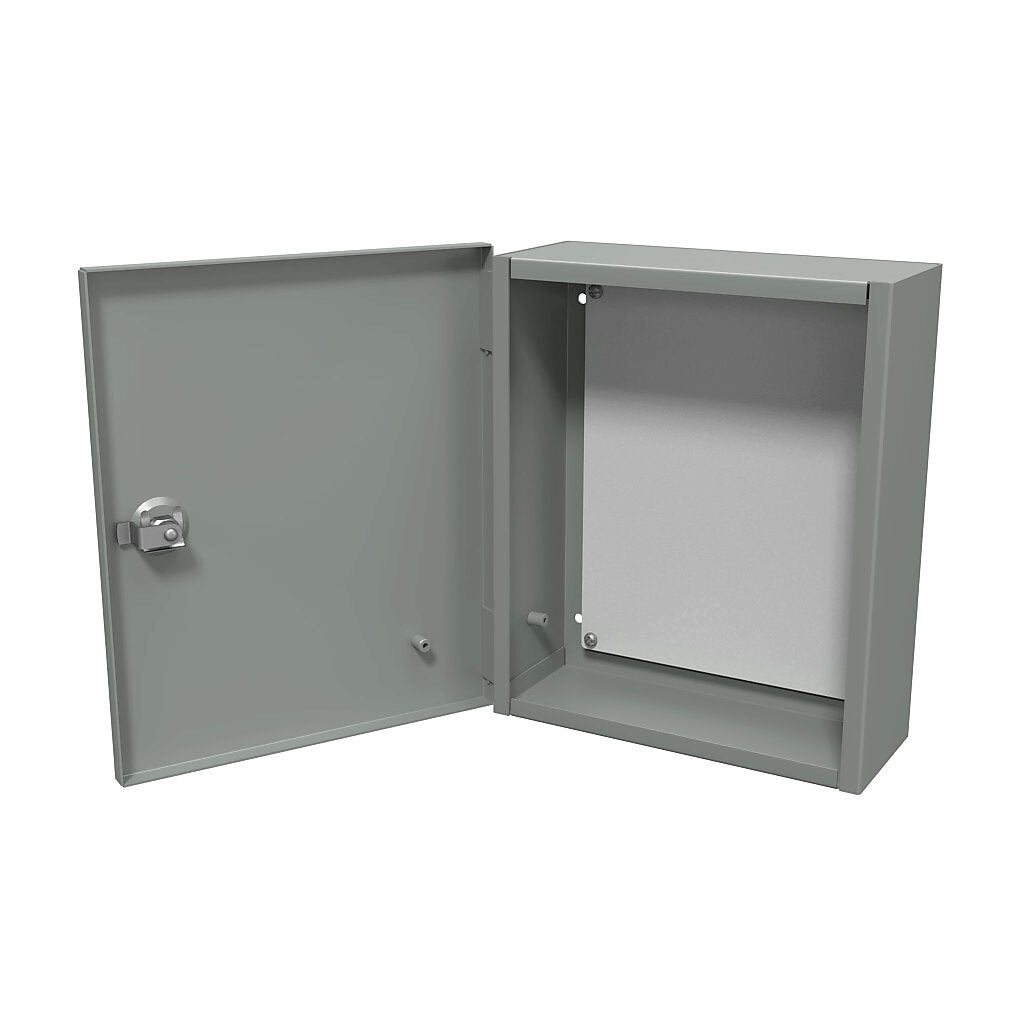

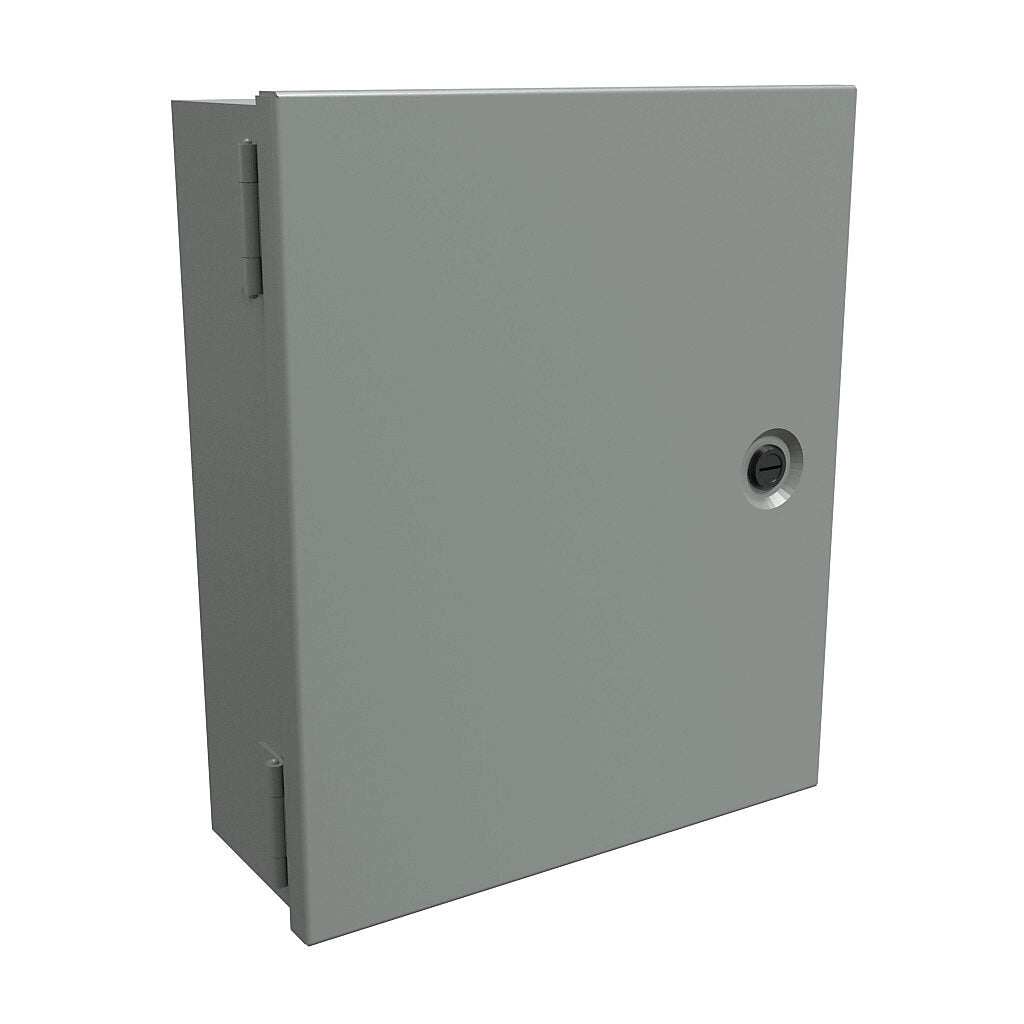

N1J12104 is a Hammond NEMA 1 steel wall mount enclosure measuring 12 x 10 x 4 inches designed for indoor electrical and industrial applications.This enclosure is constructed from 16 gauge carbon steel with a powder-coated ANSI 61 gray finish for durability and corrosion resistance. It features a single door with a 1/4-turn flush-mounted latch and includes a panel for mounting controls, instruments, or components that do not require oil-tight or dust-tight protection. The enclosure meets IP20 and UL-508 standards, providing basic protection suitable for indoor use. It weighs approximately 11 lbs (4.99 kg).
- Dimensions: 12 in (H) x 10 in (W) x 4 in (D)
- Material: 16 gauge carbon steel
- Finish: Powder coat, ANSI 61 gray
- Mounting Type: Wall mount
- Door: Single door with 1/4-turn flush latch
- Panel: Included
- IP Rating: IP20
- NEMA Rating: NEMA 1
- Standards: UL-508, CSA Type 1
- Weight: 11 lbs (4.99 kg)
Additional Information
Please note that circuit breakers are not included with the enclosures and must be purchased separately.
Specifications
- Part Number: N1J12104
- Manufacturer : Hammond
- Brand : Hammond Mfg
- Category : Circuit Breaker
- Item Subcategory : Enclosure
Product Data
- UPC : 62398028126
- GTIN : 00623980281261
- Country of Origin : Canada
- Weight : 5
- Certification : UL-50 Type 1; CSA Type 1; Complies with NEMA Type 1 IEC 60529, IP20; NEMA Type 1; IEC 60529, IP20
