Description
N1A30207

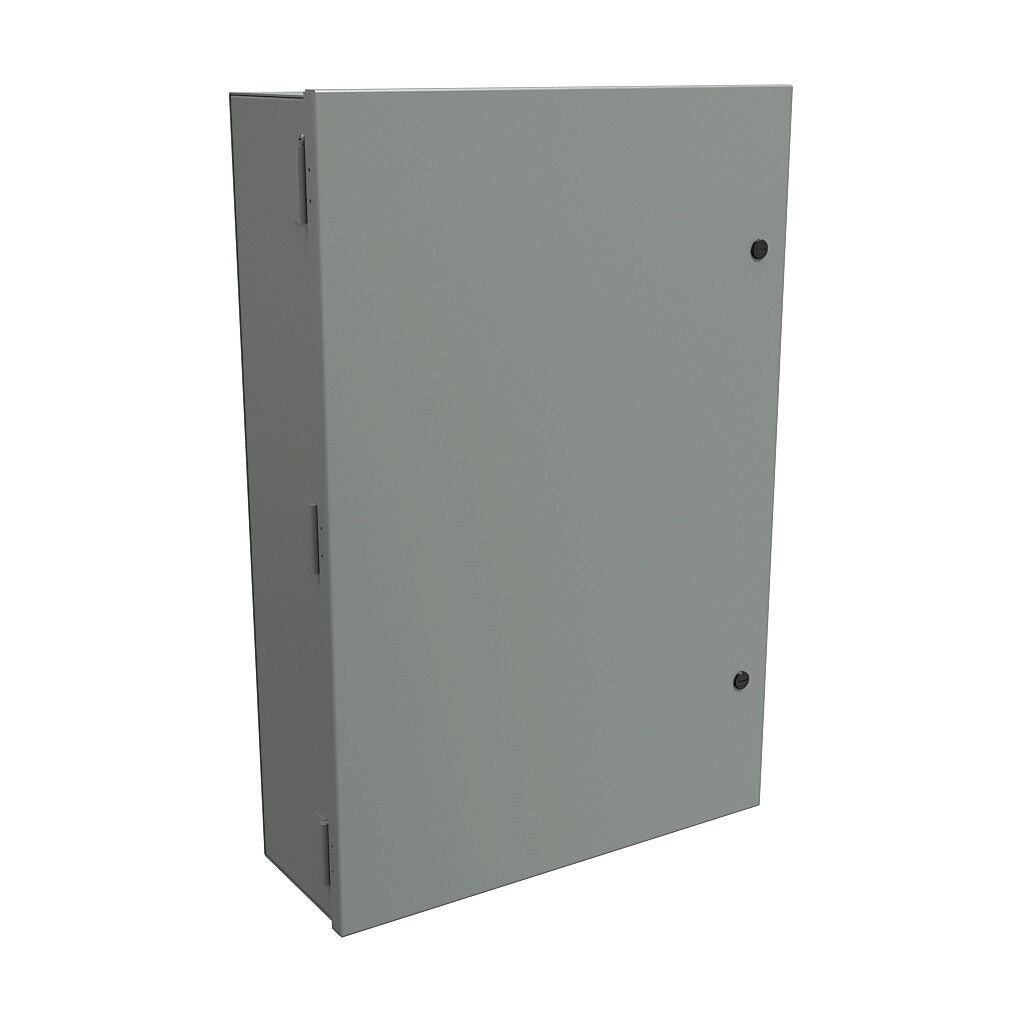

N1A30207 is a Hammond Manufacturing NEMA 1 steel electrical enclosure measuring 30 x 20 x 7 inches designed for indoor wall mounting.This enclosure is constructed from 12 or 14 gauge carbon steel with an ANSI 61 gray powder coat finish, featuring a single door with a 1/4-turn semi-flush latch and removable inner panel for housing controls and instruments.
- Dimensions: 30" H x 20" W x 7" D
- Material: 12 or 14 gauge carbon steel
- Finish: ANSI 61 gray powder coat
- Mounting Type: Wall mount
- Door: Single door with 1/4-turn semi-flush latch

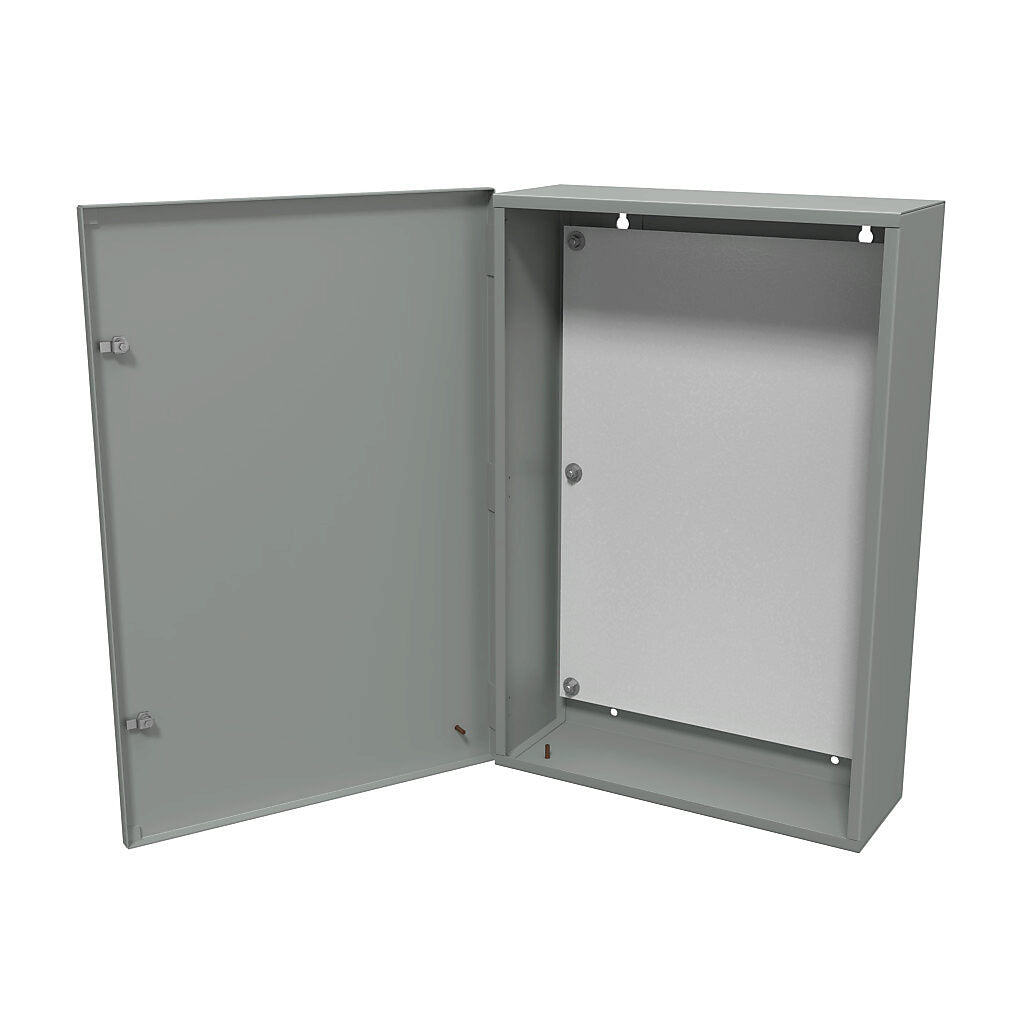

- Inner Panel: Removable 12 or 14 gauge panel mounted on collar studs
- Standards: UL 50 Type 1, CSA Type 1, NEMA Type 1, IEC 60529 IP20
- Construction: Formed and spot welded steel
- Hinges: Slip hinges with piano hinge on 12 gauge units
- Grounding: Bonding stud on door and grounding stud in box
- Color: Gray
Additional Information
Please note that circuit breakers are not included with the enclosures and must be purchased separately.
Specifications
- Part Number: N1A30207
- Manufacturer : Hammond
- Brand : Hammond Mfg
- Category : Circuit Breaker
- Item Subcategory : Enclosure
Product Data
- UPC : 62398028098
- GTIN : 00623980280981
- Country of Origin : Canada
- Weight : 5.19
- Certification : UL 50 Type 1; CSA Type 1; Complies with NEMA Type 1 IEC 60529, IP20; NEMA Type 1; IEC 60529, IP20
