Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
MXD63B800

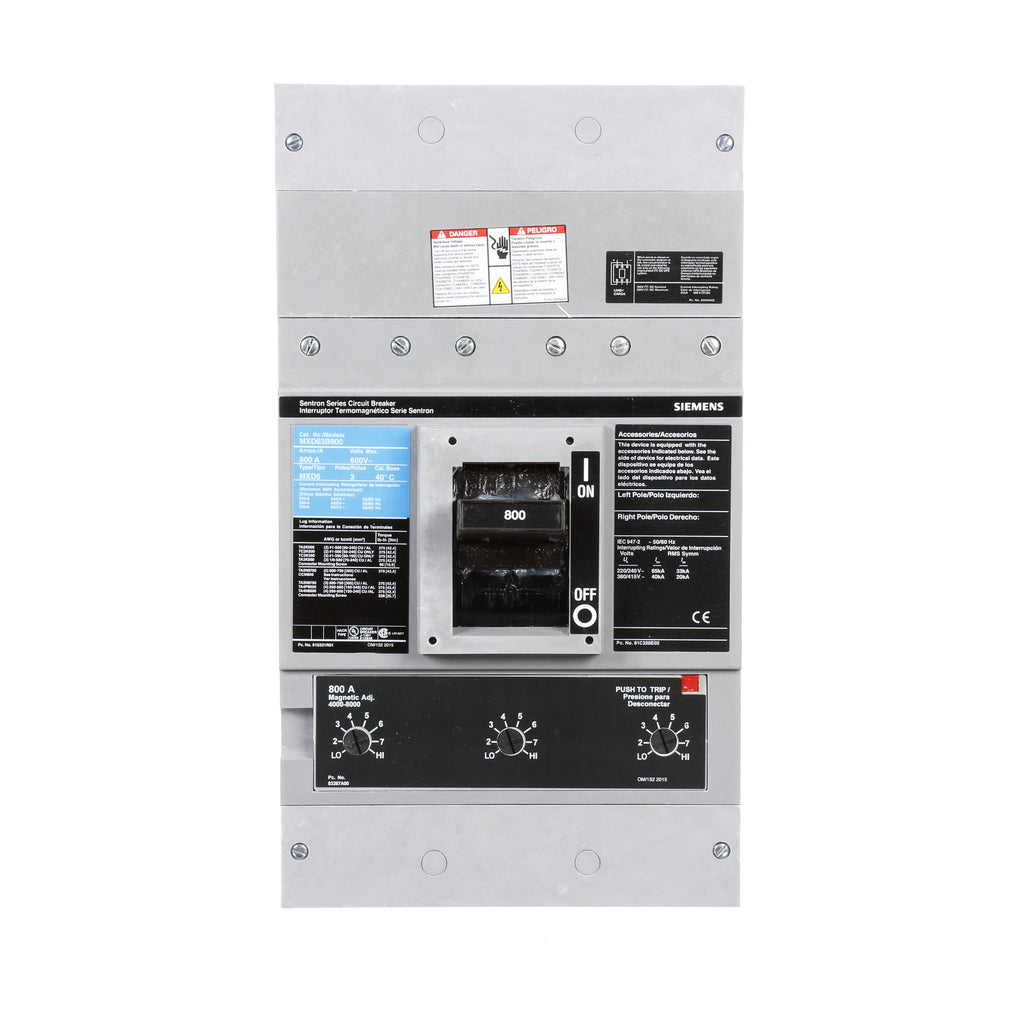

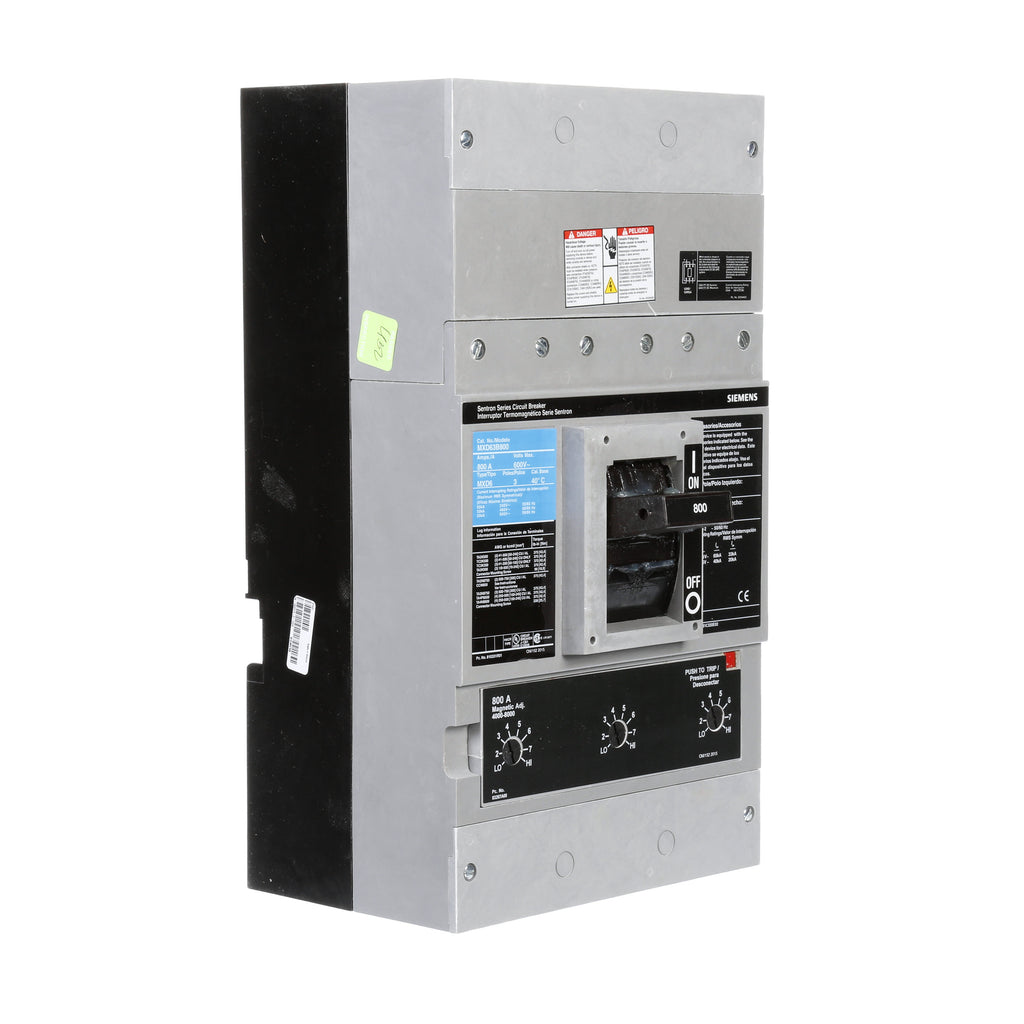

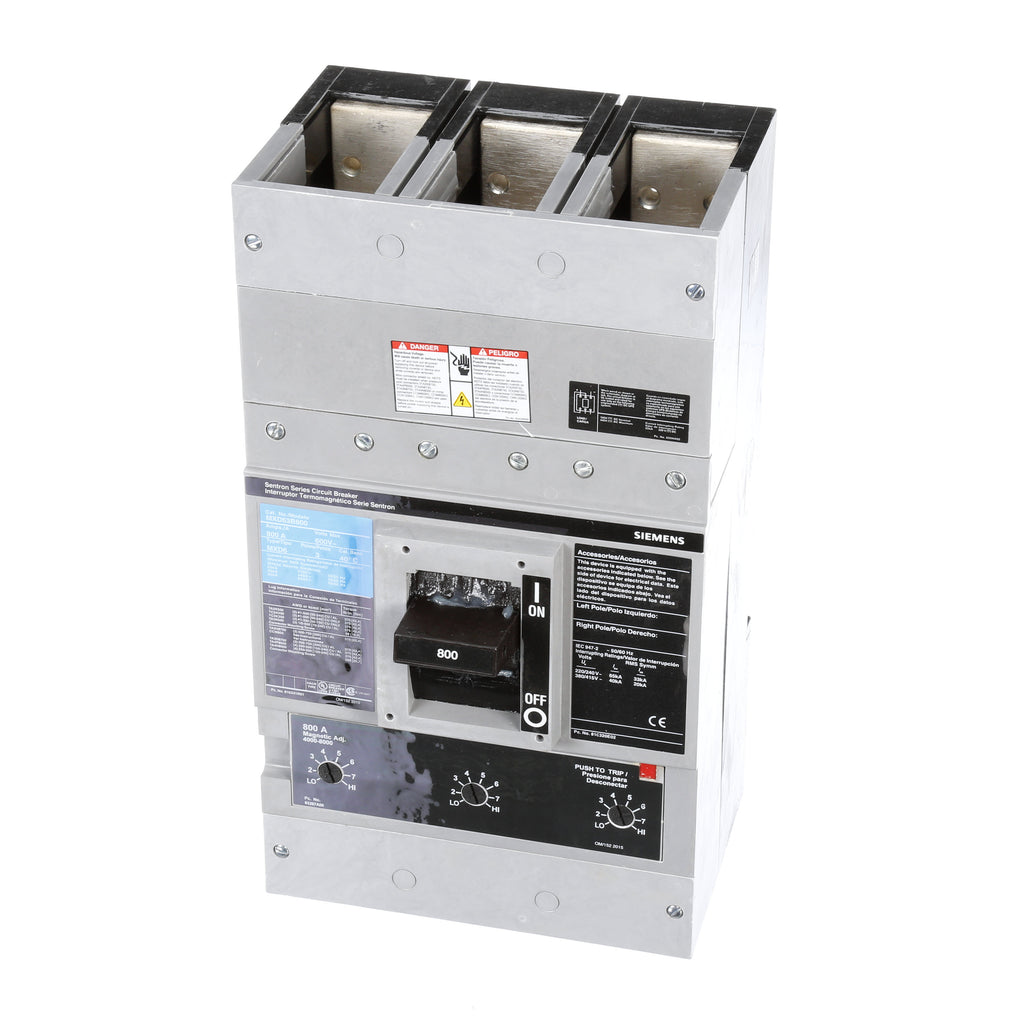

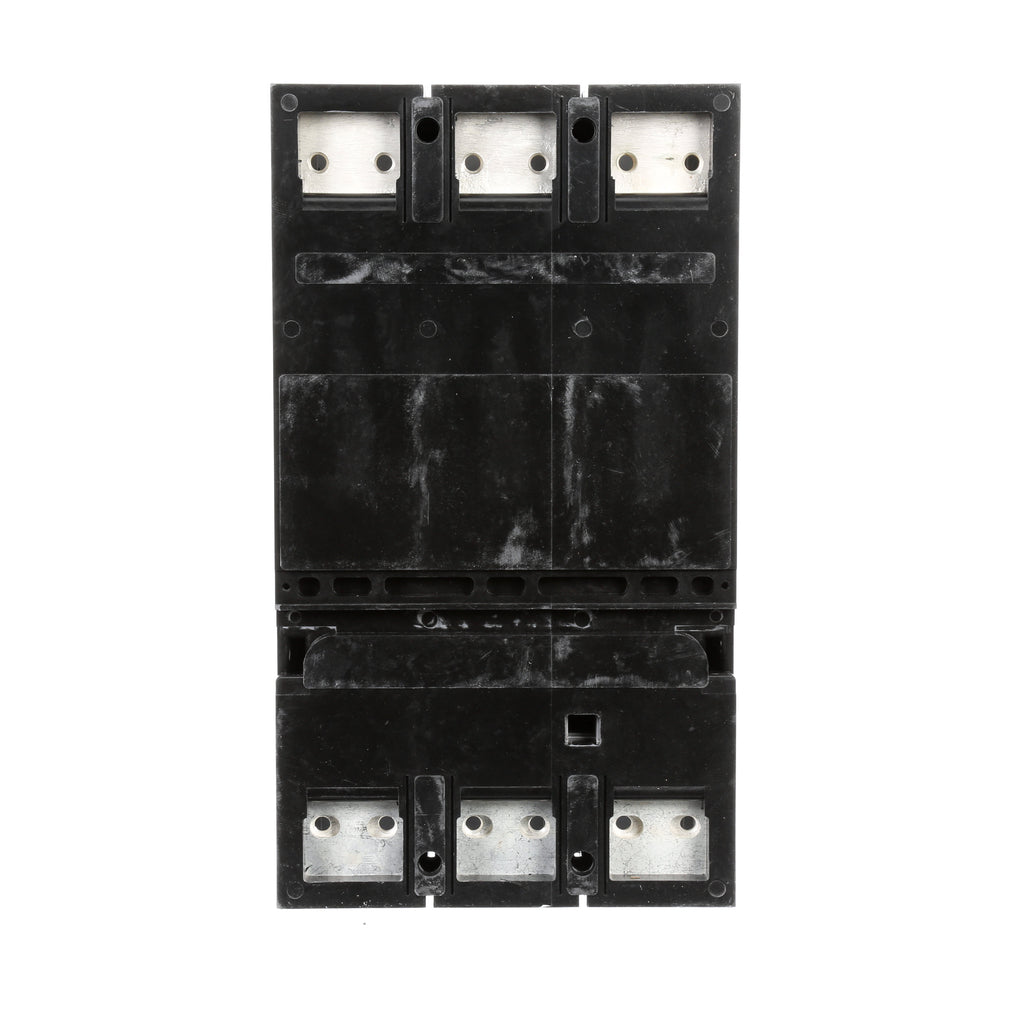

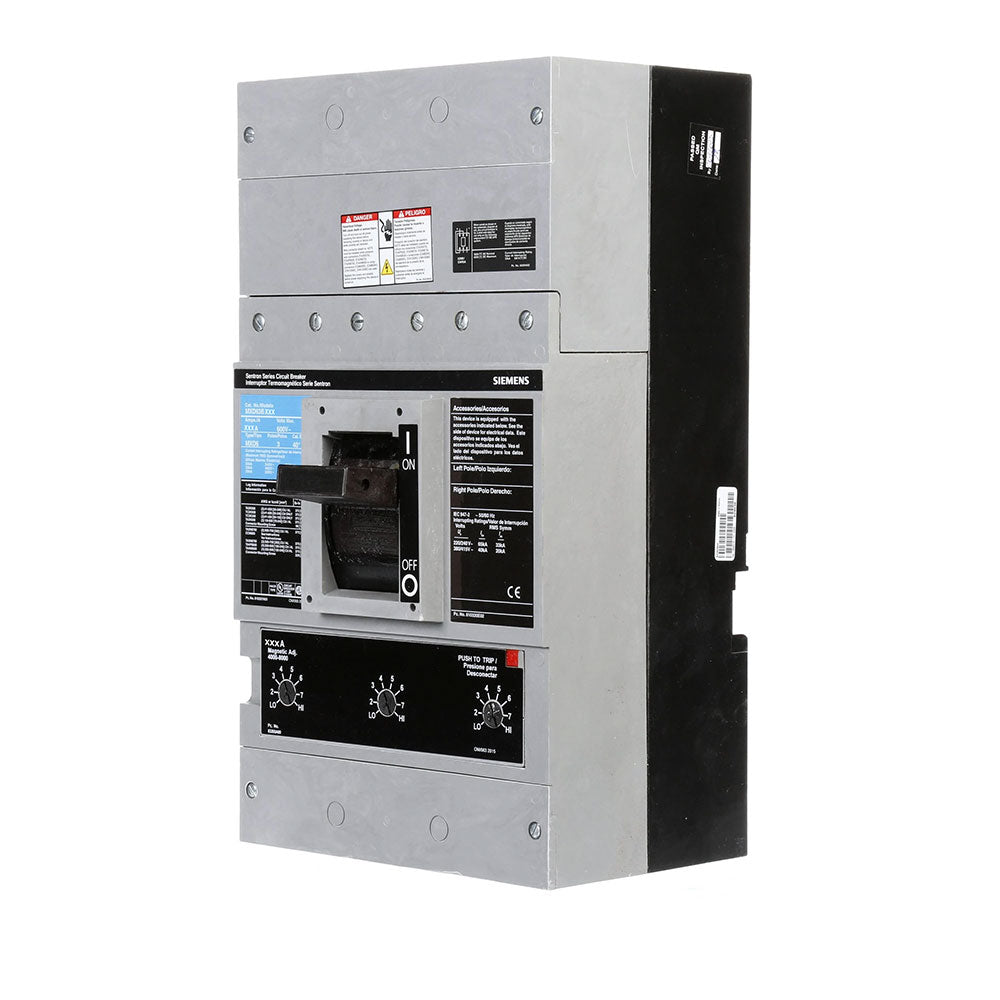

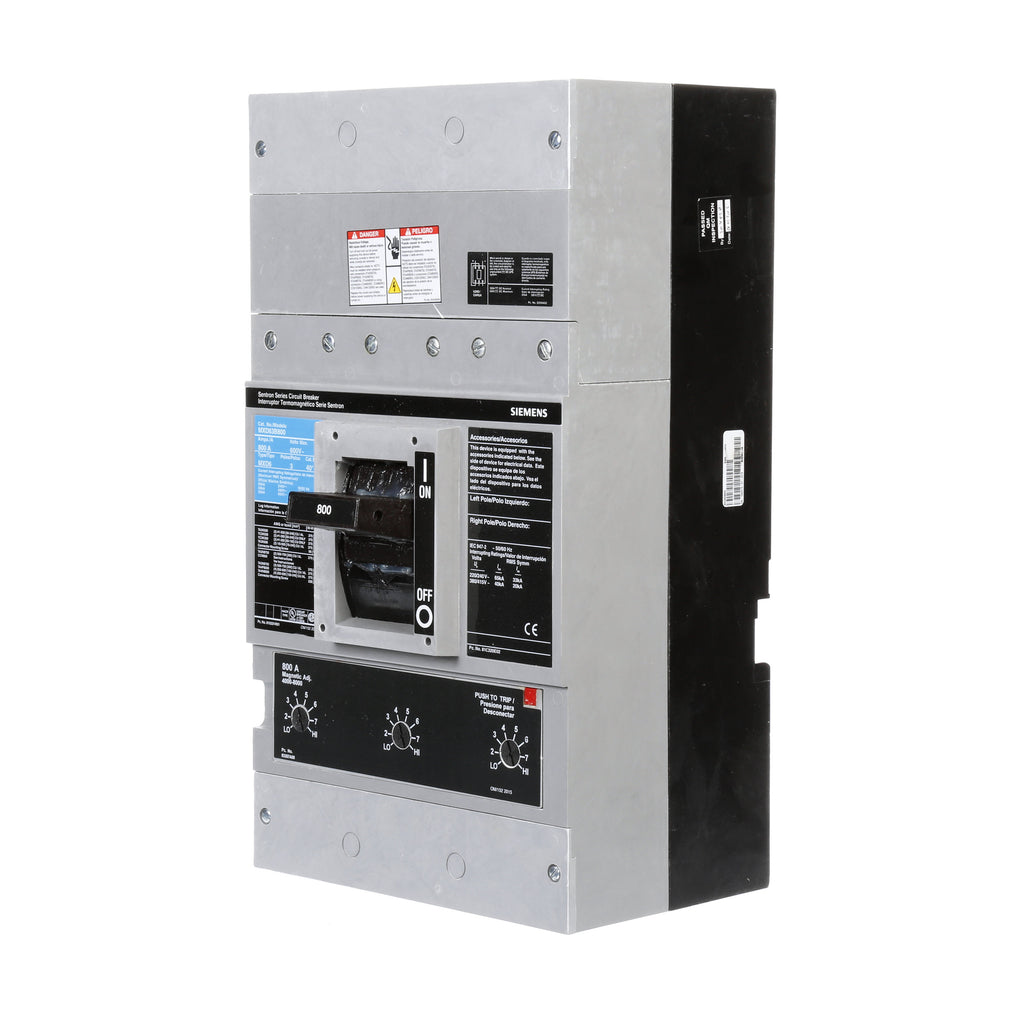

MXD63B800 is a Siemens 3-pole, 800 amp, 600 volt bolt-on molded case circuit breaker designed for reliable thermal magnetic protection.This Siemens MXD series circuit breaker features a thermal magnetic trip unit with a 25kA interrupt rating at 600V and 50kA at 480V. It is constructed with an MD frame and designed for bolt-on mounting, suitable for low voltage power distribution applications. The breaker includes a non-interchangeable trip unit and load side lug terminals, meeting industry certifications for safety and performance.
- Key Specifications
- Manufacturer: Siemens
- Series: MXD
- Amperage: 800A
- Voltage Rating: 600 VAC
- Poles: 3
- Mounting Type: Bolt-On
- Interrupt Rating: 25kA at 600V, 50kA at 480V
- Frame: MD
- Trip Unit: Thermal Magnetic, Non-Interchangeable
- Frequency: 50/60 Hz
- Certifications: Industry Standard Safety Certifications
Additional Information
Lugs are not included
Specifications
- Part Number: MXD63B800
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : MXD
- Voltage : 600
- Amperage : 800
- Phase : 3
- Poles : 3
- AIC rating : 50kA@480V
- Connection : Bolt-On
- Functions : Long Time and Instantaneous Trip
- Frame Size : MD Frame
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783643252325
- GTIN : 00783643252325
- Country of Origin : Mexico
- Weight : 52.99
- Certification : Ce Marked
