Product Info
- Manufacturer:Eaton
- Sub-Category:Medium Voltage Fuse
Description
MV155F2DCS175E

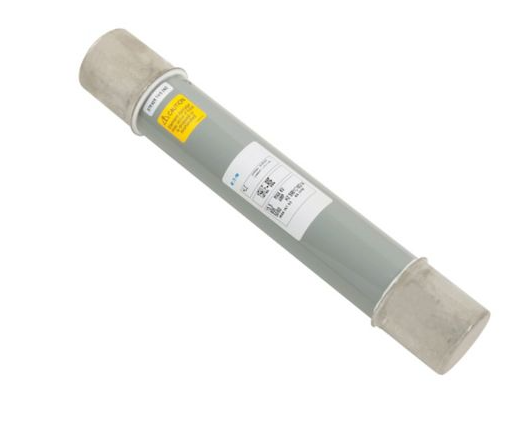

MV155F2DCS175E is an Eaton Bussmann series E-rated medium voltage fuse designed for reliable current limiting protection.
This 2-barrel cartridge fuse features a 175 ampere rating and a voltage rating of 15.5 kV AC. It is constructed with a fiberglass tube and silver ribbon element, providing current limiting capabilities with a maximum interrupt rating of 50 kAIC. The fuse is non-indicating and designed for medium voltage applications such as transformer and feeder circuit protection. It complies with ANSI standards and belongs to the Class E fuse group.
- Amperage Rating: 175 A
- Voltage Rating: 15.5 kV AC
- Poles: 2-barrel
- Fuse Class: E
- Interrupt Rating: 50 kAIC
- Construction: Fiberglass tube with silver ribbon element
- Fuse Type: Cartridge, non-indicating
- Connection: Ferrule end x ferrule end
- Compliance: ANSI certified
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: MV155F2DCS175E
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
- Family : MV155
- Type : MV155
- Voltage : 15500
- Amperage : 175
- AIC rating : [email protected]
- Connection : Ferrule
- Diameter : 3
- Class Rating : E
- Barrels : 2
- Clip Center : 18
Product Data
- UPC : 051712559157
- GTIN : 00051712559157
- Dimensions : 24.2 in x 5.1 in x 8 in (Length/Depth x Height x Width)
- Weight : 23.65
