Product Info
- Manufacturer:Eaton
- Sub-Category:Medium Voltage Fuse
Description

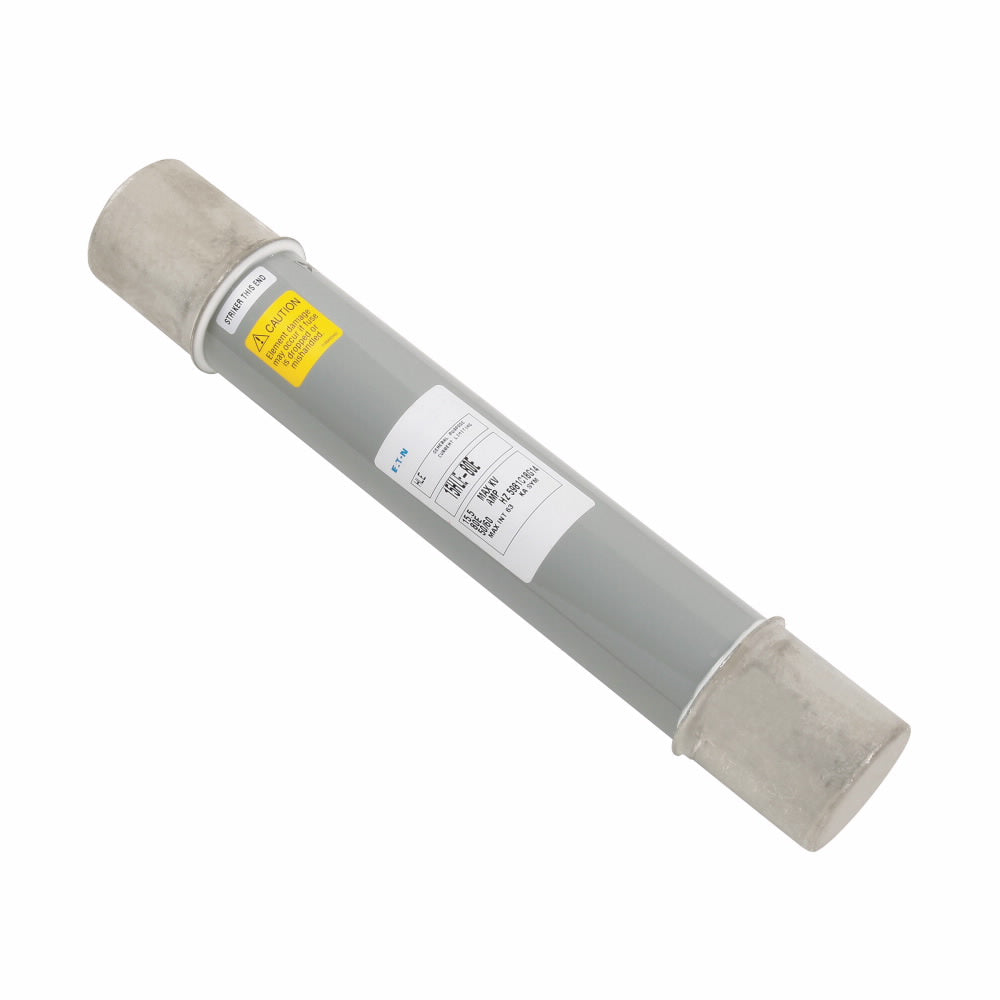

MV155F1DBX25E
MV155F1DBX25E is a medium voltage current limiting fuse designed for transformer and feeder protection applications. This Eaton Bussmann series fuse provides reliable circuit protection in demanding electrical environments.Engineered for use in medium voltage systems, the MV155F1DBX25E features a 1-barrel cartridge design with a 25 amp current rating and a 15.5 kV voltage rating. It offers a 50 kA symmetrical interrupting capacity, making it suitable for high fault current applications. The fuse is constructed with a fiberglass tube and plated endcaps for durability and performance.
- Part Number: MV155F1DBX25E
- Manufacturer: Eaton
- Series: MV155
- Fuse Type: E-Rated, Current Limiting
- Mounting Type: Inline/Holder
- Rated Current: 25 A
- Rated Voltage: 15.5 kV
- Interrupting Rating: 50 kA
- Fuse Barrel: 1-Barrel
- Construction: Fiberglass Tube, Plated Endcaps
- Application: Transformer and Feeder Protection
- Joule Integral: 4650 J
Specifications
- Part Number: MV155F1DBX25E
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
- Family : MV155
- Type : MV155
- Voltage : 15500
- Amperage : 25
- AIC rating : [email protected]
- Diameter : 2
- Class Rating : E
- Barrels : 1
- Clip Center : 15
Product Data
- UPC : 051712269308
- GTIN : 00051712269308
- Country of Origin : Mexico
- Dimensions : 0.75 in x 23 in x 0.75 in (Length/Depth x Height x Width)
- Weight : 1.1
- Certification : ANSI
