Product Info
- Manufacturer:Eaton
- Sub-Category:Medium Voltage
Description

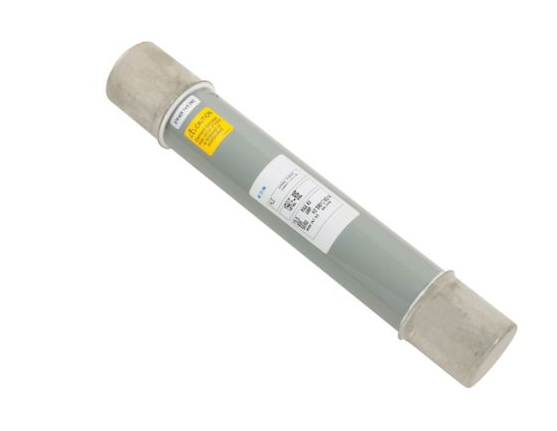

MV155F1DBS65E
MV155F1DBS65E is an E-Rated medium voltage current-limiting fuse designed for transformer and feeder protection in 15.5 kV systems. This fuse features a robust construction with a silver ribbon element surrounded by silica filler housed in a fiberglass tube and plated endcaps, providing reliable circuit protection. The MV155F1DBS65E is engineered for use in metal-enclosed switchgear and other high-voltage applications, offering a standard clip center distance for easy retrofitting in existing hardware. It includes an open fuse indicator for straightforward troubleshooting and is rated for full range interrupting capacity.
- Amperage Rating: 65 A
- Voltage Rating: 15.5 kV
- Interrupt Rating: 50 kAIC
- Mounting Type: Clip center distance (retrofit compatible)
- Series/Frame: MV155F
- Indicator Style: Open fuse indicator
- Construction: Silver ribbon element, silica filler, fiberglass tube, plated endcaps
- Agency Information: Meets E requirements per ANSI C37.46
- Typical Applications: Transformer primary protection, feeder circuit protection, metal-enclosed switchgear
Specifications
- Part Number: MV155F1DBS65E
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Medium Voltage
- Section : Medium Voltage Fuse
- Family : MV155
- Type : MV155
- Voltage : 15500
- Amperage : 65
- AIC rating : [email protected]
- Connection : Ferrule
- Diameter : 3
- Class Rating : E
- Barrels : 1
- Clip Center : 15
Product Data
- UPC : 051712563123
- Dimensions : 0.75 in x 23 in x 0.75 in (Length/Depth x Height x Width)
- Weight : 1.1
