Product Info
- Manufacturer:Eaton
- Sub-Category:Medium Voltage Fuse
Description
MV155F1DBS50E

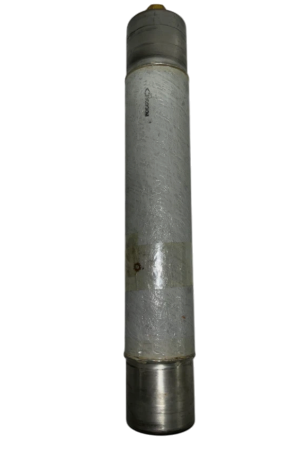

MV155F1DBS50E is a medium voltage cartridge fuse from Eaton designed for transformer protection at 15.5 kV and 50 amperes.This Eaton Bussmann series fuse features a current-limiting design with a striker pin indicator for visual fuse status. It is rated for 50 kA interrupting capacity and constructed with a fiberglass tube and silver ribbon element. The fuse is classified as Class E and uses ferrule end connections.
- Voltage Rating: 15.5 kV AC
- Amperage Rating: 50 A
- Interrupting Rating: 50 kA
- Fuse Type: Cartridge
- Indicator Style: Striker Pin
- Class: E
- Connection: Ferrule end x ferrule end
- Element Material: Silver ribbon
- Construction: Fiberglass tube
- Application: Transformer protection
Specifications
- Part Number: MV155F1DBS50E
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
- Family : MV155
- Type : MV155
- Voltage : 15500
- Amperage : 50
- AIC rating : [email protected]
- Connection : Ferrule
- Diameter : 3
- Class Rating : E
- Barrels : 1
- Clip Center : 15
Product Data
- UPC : 005171255909
- GTIN : 00051712559096
- Dimensions : 0.75 in x 23 in x 0.75 in (Length/Depth x Height x Width)
- Weight : 1.1
