Product Info
- Manufacturer:Edison Fuses
- Sub-Category:Medium Voltage Fuse
Description

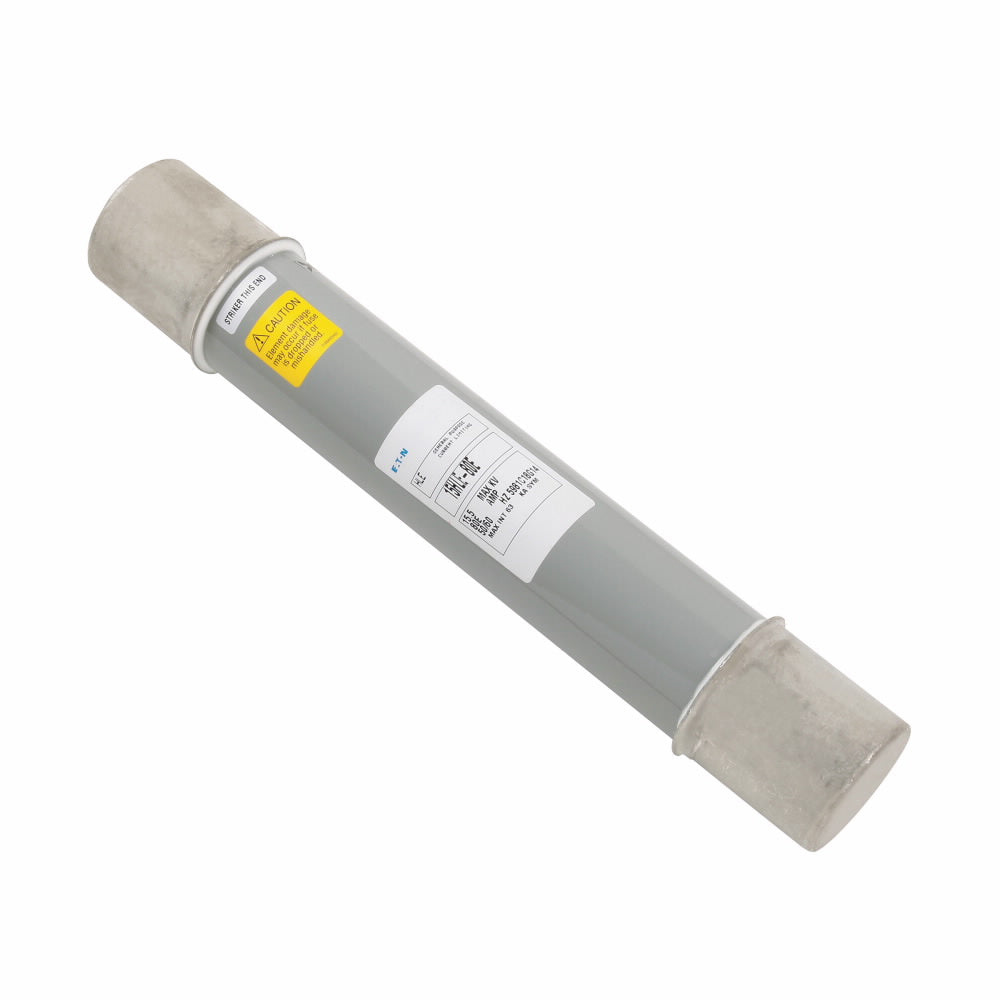

MV055F1DAX30E
MV055F1DAX30E is a medium voltage E-rated fuse designed for transformer and feeder protection in industrial power distribution systems. This current-limiting fuse meets ANSI C37.46 E-rating requirements and ANSI C37.40 full range requirements, providing reliable overcurrent protection for medium voltage circuits. The fuse features a 1 barrel construction with a 3 inch diameter, making it compatible with standard medium voltage fuse holders and equipment. Key Specifications
- Voltage Rating: 5.5 kV AC
- Amperage: 30A
- Interrupt Rating: 50 kA
- Fuse Type: E-Rated, Current-Limiting
- Barrel Configuration: 1 Barrel
- Diameter: 3 inches
- Length: 15.75 inches
- Indicator Style: Open Fuse
- Standards: ANSI C37.46, ANSI C37.40
- Agency Listing: UL Listed
Specifications
- Part Number: MV055F1DAX30E
- Manufacturer : Edison Fuses
- Brand : Edison Fuses
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
- Family : MV055
- Type : MV055
- Voltage : 5500
- Amperage : 30
- AIC rating : [email protected]
- Diameter : 2
- Class Rating : E
- Barrels : 1
- Clip Center : 12
Product Data
- UPC : 051712269612
- GTIN : 00051712269612
- Country of Origin : Mexico
- Dimensions : 3 in x 15.86 in x 3 in (Length/Depth x Height x Width)
- Weight : 7.4
- Certification : ANSI
