Product Info
- Manufacturer:Eaton
- Sub-Category:Medium Voltage
Description
MV055F1DAS200E

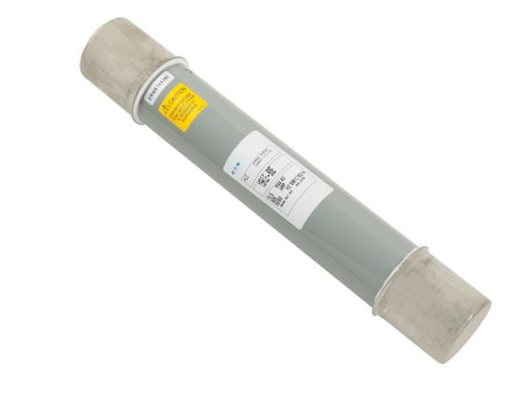

MV055F1DAS200E is an Eaton Bussmann series MV055 E-Rated medium voltage fuse designed for transformer and feeder protection applications. This current-limiting fuse delivers reliable performance in medium voltage distribution systems with a fiberglass tube construction and silver ribbon element for consistent operation. Key Specifications
- Amperage Rating: 200A
- Voltage Rating: 5.5 kV
- Interrupt Rating: 50 kAIC
- Class: E-Rated
- Connection: Ferrule end x ferrule end
- Material: Fiberglass tube
- Element: Silver ribbon
- Fuse Indicator: Non Indicating
- Barrel Diameter: 3 inches
- Overall Length: 15.75 inches
- Weight: 3 lb
- Certification: ANSI
Specifications
- Part Number: MV055F1DAS200E
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Medium Voltage
- Section : Medium Voltage Fuse
- Family : MV055
- Type : MV055
- Voltage : 5500
- Amperage : 200
- AIC rating : [email protected]
- Connection : Ferrule
- Diameter : 3
- Class Rating : E
- Barrels : 1
- Clip Center : 12
Product Data
- UPC : 051712558976
- Dimensions : 3 in x 15.86 in x 3 in (Length/Depth x Height x Width)
- Weight : 8.5
