Product Info
- Manufacturer:Eaton
- Sub-Category:Medium Voltage
Description
MV055F1DAS100E

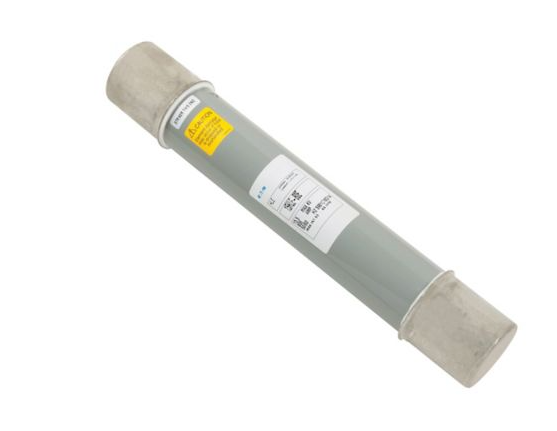

MV055F1DAS100E is an E-Rated medium voltage fuse designed for reliable protection in feeder circuits, switchgear, and transformers. This Eaton Bussmann series fuse provides robust performance for demanding electrical environments. This medium voltage fuse features a 5.5 kVAC voltage rating and a 100A current rating, making it suitable for a wide range of industrial and commercial applications. It is a non-indicating, current-limiting fuse with ferrule end connections and a fiberglass tube construction. The fuse meets E requirements per ANSI C37.46 and Full Range requirements per ANSI C37.40.
- Manufacturer: Eaton
- Series: MV055
- Amperage: 100A
- Voltage Rating: 5.5 kVAC
- Interrupt Rating: 50 kAIC
- Mounting Type: Ferrule End
- Construction: Fiberglass Tube
- Indication: Non-Indicating
- Protection Type: Current Limiting
- Class: Class E
- Standards: ANSI C37.46, ANSI C37.40
Specifications
- Part Number: MV055F1DAS100E
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Medium Voltage
- Section : Medium Voltage Fuse
- Family : MV055
- Type : MV055
- Voltage : 5500
- Amperage : 100
- AIC rating : [email protected]
- Connection : Ferrule
- Diameter : 3
- Class Rating : E
- Barrels : 1
- Clip Center : 12
Product Data
- UPC : 051712558938
- Dimensions : 3 in x 15.86 in x 3 in (Length/Depth x Height x Width)
- Weight : 8.5
