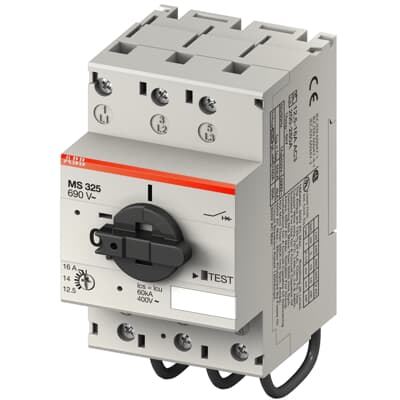

MS325-6.3 - ABB 6.3A 690VAC 3-Pole Manual Motor Starter IP20

MS325-6.3

MS325-6.3 is an ABB manual motor starter designed for reliable motor protection and control.This manual motor starter features a 6.3 amp rated current, supports up to 690 VAC and 440 VDC, and includes a 3-pole configuration with rotary handle ON/OFF control. It has a Class 10 thermal overload relay, IP20 enclosure rating, and supports motor ratings up to 2.2 kW (1.5 hp) at 50/60 Hz. The device offers a 100 kA interrupt rating, screw connection terminals, and is suitable for 3-phase motors. It operates within a temperature range of -25 to 50 degrees Celsius and measures 75.5 mm L x 54 mm W x 87.5 mm H.

Key Specifications
• Rated Current: 6.3 A (adjustable 4 to 6.3 A)
• Voltage Rating: 690 VAC / 440 VDC
• Poles: 3
• Interrupt Rating: 100 kA
• Mounting Type: Panel mount with screw connection
• Thermal Overload Relay: Class 10
• Enclosure Rating: IP20
• Operating Frequency: 50/60 Hz
• Operating Temperature: -25 to 50 °C
• Dimensions: 75.5 mm L x 54 mm W x 87.5 mm H
• Motor Power Rating: Up to 2.2 kW (1.5 hp)
• Control: Rotary handle ON/OFF
• Certifications: UL, CSA
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: MS325-6.3
• Brand : ABB
• Category : Motor Control
• Item Subcategory : Motor starter controls
• Family : MS325
• Voltage : 600 600



Product Data

• UPC : 4013614195051
• GTIN : 00013614195055
• Dimensions : 54 mm W x 75.5 mm D x 87.5 mm H
• Weight : 5
