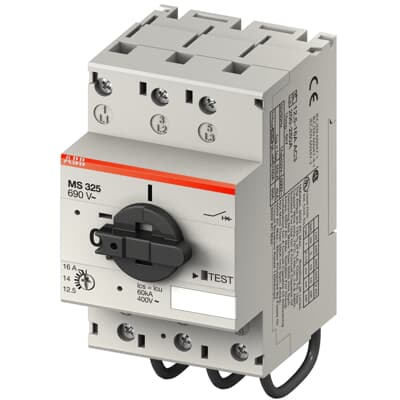

MS325-12.5 - ABB Manual Motor Starter 12.5A 3 Pole IP20 Enclosure 690VAC 50/60Hz

MS325-12.5

MS325-12.5 is an ABB manual motor starter designed for reliable motor protection and control with a 12.5 amp rating and 3 poles.This manual motor starter features a rated operational current of 12.5 A, suitable for motors up to 10 hp, with a voltage rating of 690 VAC and 440 VDC. It includes a trip class 10A, ON/OFF rotary handle with clear switch position indication, and IP20 enclosure. The device offers short-circuit breaking capacity of 75 kA at 400 VAC, built-in disconnect function, temperature compensation, and a trip-free mechanism. It supports both three-phase and single-phase applications and uses screw connections.

Key Specifications
• Rated current: 12.5 A
• Voltage rating: 690 VAC / 440 VDC
• Poles: 3
• Trip class: 10A
• Short-circuit breaking capacity: 75 kA at 400 VAC
• Enclosure: IP20
• Mounting: Panel mount
• Operating frequency: 50/60 Hz
• Motor rating: Up to 10 hp
• Connection type: Screw terminals
• Operating temperature: -25 to 50 °C
• Operating cycles: 50,000 / 100,000
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: MS325-12.5
• Brand : ABB
• Category : Motor Control
• Item Subcategory : Motor starter controls
• Family : MS325
• Voltage : 600 600 690 , 440 DC 690 /440 DC



Product Data

• UPC : 4013614194368
• Dimensions : 2.13 in W 3.07 in L x 3.15 in W x 3.62 in H
• Weight : 5
