Product Info
- Manufacturer:ABB
- Sub-Category:Motor Starter
Description
MS325-1.6

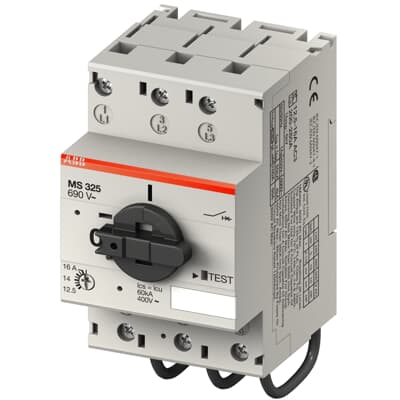

MS325-1.6 is an ABB manual motor starter designed for reliable motor protection and switching with a rated current of 1.6 A.This manual motor starter from the MS325 series features a 3-pole design suitable for single and three-phase motors. It provides protection against overload, short circuit, and phase failure without the need for fuses. The device supports a rated operational current of 1.6 A, rated voltage up to 690 VAC, and a short-circuit breaking capacity of 100 kA at 400 VAC. It includes a trip class 10A, temperature compensation, trip-free mechanism, and a rotary handle with clear ON/OFF indication. The compact 54 mm width and IP20 enclosure make it suitable for industrial motor control applications.
- Key Specifications
- Rated operational current: 1.6 A
- Rated voltage: 690 VAC / 440 VDC
- Poles: 3
- Short-circuit breaking capacity: 100 kA at 400 VAC
- Trip class: 10A
- Series/Frame: MS325
- Mounting type: Panel mount
- Enclosure rating: IP20
- Manual motor starter with built-in disconnect function
- Temperature compensation and trip-free mechanism
- Certifications: UL, CSA
Specifications
- Part Number: MS325-1.6
- Manufacturer : ABB
- Brand : ABB
- Category : Motor Control
- Item Subcategory : Motor Starter
- Family : MS325
- Voltage : 690 /440 DC
Product Data
- UPC : 4013614195020
- Dimensions : 87.5 mm H x 54 mm W x 75.5 mm D
- Weight : 0.75
