Product Info
- Manufacturer:Mersen
- Sub-Category:Power Distribution Block
Description
MPDB69143

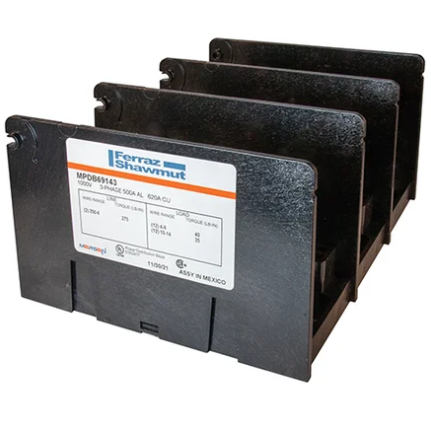

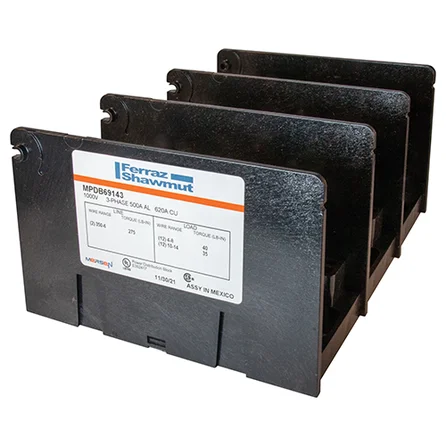

MPDB69143 is a 3-pole, 620A, 1000V power distribution block designed for high-ampacity applications with UL1953 certification. This open-style block features tin-plated aluminum terminals and glass-filled polycarbonate insulation for durability and safety. The Mersen MPDB69143 is engineered for reliable power distribution in industrial and commercial environments. It supports both aluminum and copper conductors, with input wire range 350 kcmil to #6 AWG and output range #4 to #14 AWG. The block is direct screw mount and features optional adder poles for flexible configuration. Safety covers are available for added protection.
- Part Number: MPDB69143
- Manufacturer: Mersen
- Amperage Rating: 620A
- Voltage Rating: 1000V AC/DC
- Number of Poles: 3
- Mounting Type: Direct Screw Mount
- Interrupt Rating: 600kA (Class RK1)
- Series/Frame: MPDB Series
- Terminal Material: Tin-Plated Aluminum
- Insulation Material: Glass-Filled Polycarbonate
- UL Certification: UL1953 Open-Style
- Wire Range: Input 350 kcmil - #6 AWG, Output #4 - #14 AWG
Specifications
- Part Number: MPDB69143
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Power Distribution Block
- Temp Rating : -13–158 °F (-25–70 °C)
Product Data
- UPC : 782001451233
- GTIN : 00782001451233
- Weight : 54 lb
- Temp Rating : -13–158 °F (-25–70 °C)
