Product Info
- Manufacturer:Mersen
Description
MPDB67013

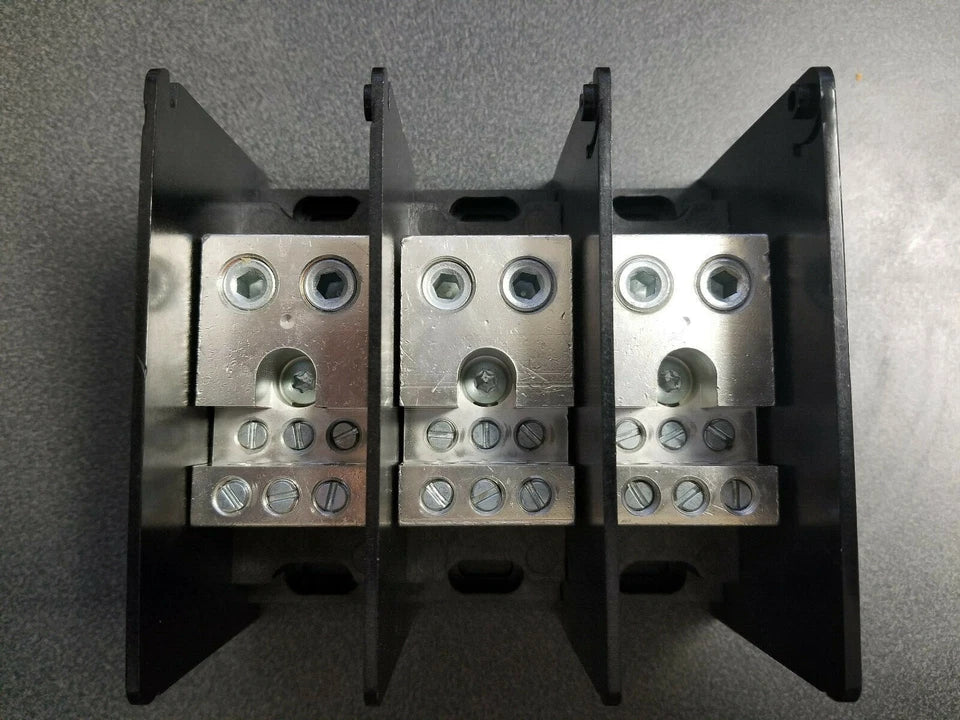

MPDB67013 is a 310 amp, 3-pole aluminum power distribution block from Mersen's Intermediate Series designed for safe and efficient power distribution.This open-style power distribution block supports a rated voltage of 1000 V AC/DC and a short circuit current rating of 10,000 A. It features a 3-pole configuration with line side wire/stud size of 350MCM to #6 CU/AL and load side wire/stud size of 2/0 to #14 CU/AL. The block is designed for panel mounting and is constructed with durable aluminum and copper conductor materials. It complies with UL 1953 certification for safety and reliability.
- Key Specifications
- Current Rating: 310 A
- Voltage Rating: 1000 V AC/DC
- Number of Poles: 3
- Mounting Type: Panel Mount
- Short Circuit Current Rating: 10,000 A
- Line Side Wire/Stud Size: 350MCM - #6 CU/AL
- Load Side Wire/Stud Size: 2/0 - #14 CU/AL
- Material: Aluminum and Copper Conductors
- Series: Intermediate
- Type: Open-Style Power Distribution Block
- Certifications: UL 1953 Recognized Component
- Part Number: MPDB67013
- Brand : Mersen
- UPC : 78200145091
- GTIN : 00782001450915
- Weight : 5
