Product Info
- Manufacturer:Mersen
- Sub-Category:Terminal Blocks
Description
MPDB63163

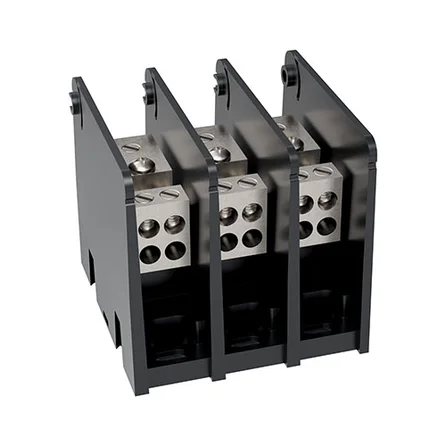

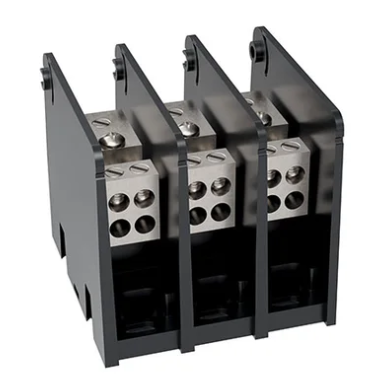

MPDB63163 is a 3-pole power distribution block by Mersen designed for motor control applications with an 85 amp rating and 1000 volt capacity.This power distribution block features a durable aluminum body with tin plating and glass-filled polycarbonate insulation. It supports screw mounting and accommodates wire sizes from #4 to 14 AWG. The block is UL 1953 and CSA certified, suitable for use in feeder and branch circuits per UL508A and NEC standards.
- Amperage: 85 Amp
- Voltage: 1000 VAC/VDC
- Number of Poles: 3
- Mounting Type: Screw
- Body Material: Aluminum, tin-plated
- Insulating Material: Glass-filled polycarbonate
- Wire Range: #4 to 14 AWG
- Certifications: UL 1953, CSA
- Series: MPDB
- Open-style design
Specifications
- Part Number: MPDB63163
- Brand : Mersen
- Category : Motor Control
- Item Subcategory : Terminal Blocks
- Section : Terminal Blocks
- Family : MPDB
- Voltage : 600 600
Product Data
- UPC : 782001450229
- Dimensions : 2.81 in H x 2.91 in W x 3.08 in D 2.91 in W x 3.08 in D x 2.81 in H
- Weight : 56 lb
