Product Info
- Manufacturer:Murray
- Sub-Category:Molded Case
Description
MP320

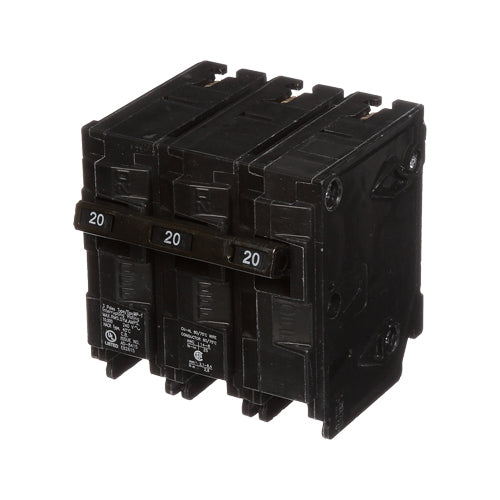

MP320 is a 3-pole, 20 ampere, 240 volt AC plug-in circuit breaker from Murray designed for reliable protection in electrical load centers.This Type MP-T circuit breaker features a common trip mechanism and a 10,000 amp interrupting rating, suitable for use in Murray MP frame load centers. It mounts via plug-in installation and supports wire sizes from 16 to 14 AWG with load lug terminals. The breaker is UL approved and measures approximately 3 inches wide by 3 inches deep by 3-1/8 inches high.
- Amperage: 20 Ampere
- Voltage Rating: 240 VAC
- Number of Poles: 3
- Mounting Type: Plug-In
- Interrupting Rating: 10,000 Amperes
- Frame Type: MP-T
- Trip Unit: Common Trip
- Terminal Type: Load Lug
- Wire Size: 16 to 14 AWG Copper/Aluminum
- Dimensions: 3" W x 3" D x 3-1/8" H
- Certifications: UL Listed
Specifications
- Part Number: MP320
- Manufacturer : Murray
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : MP Series
- Type : MP-T
- Voltage : 240
- Amperage : 20
- Phase : 3
- Poles : 3
- AIC rating : 10kA@240V
- Connection : Plug-In
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 040892237801
- GTIN : 00040892237801
- Country of Origin : Mexico
- Dimensions : 12.598 x 3.543 x 3.15 inch
- Weight : 0.86
