Product Info
- Manufacturer:Murray
- Sub-Category:Molded Case
Description
MP290

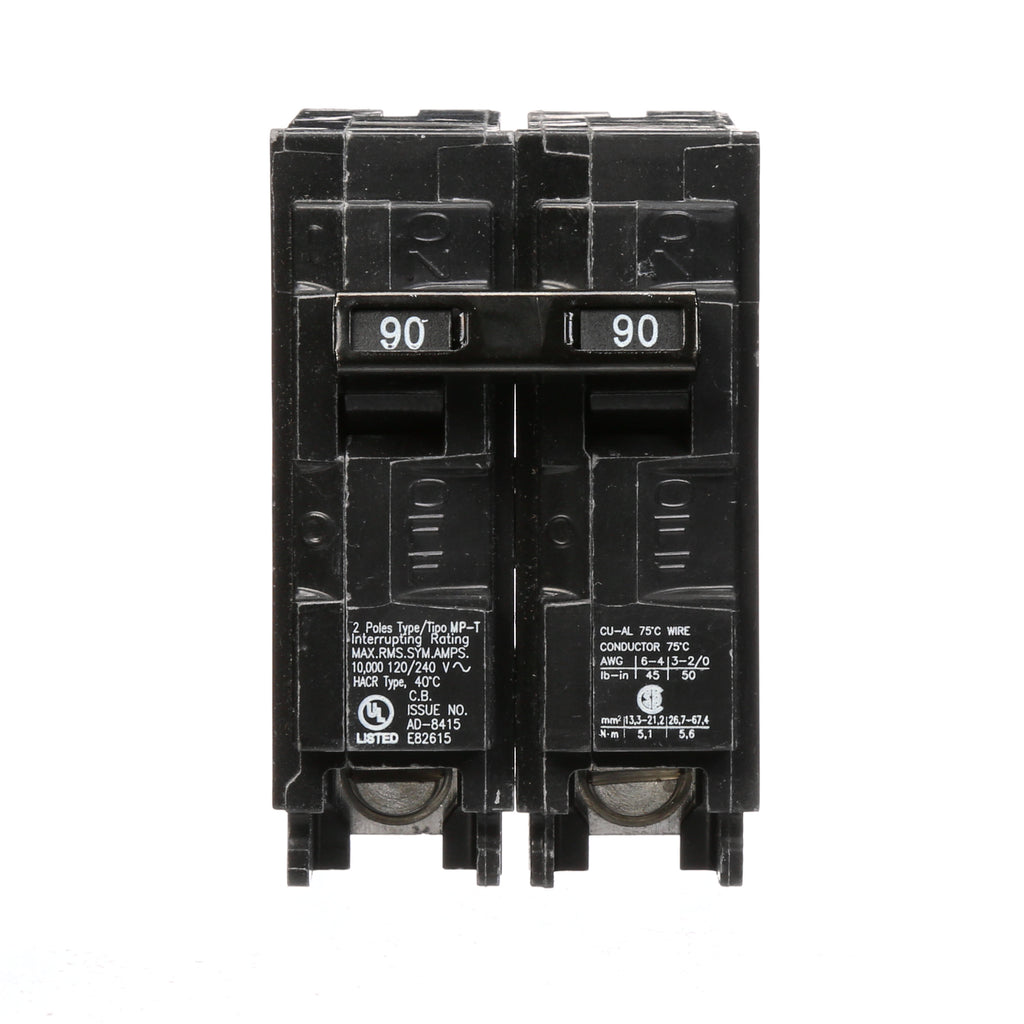

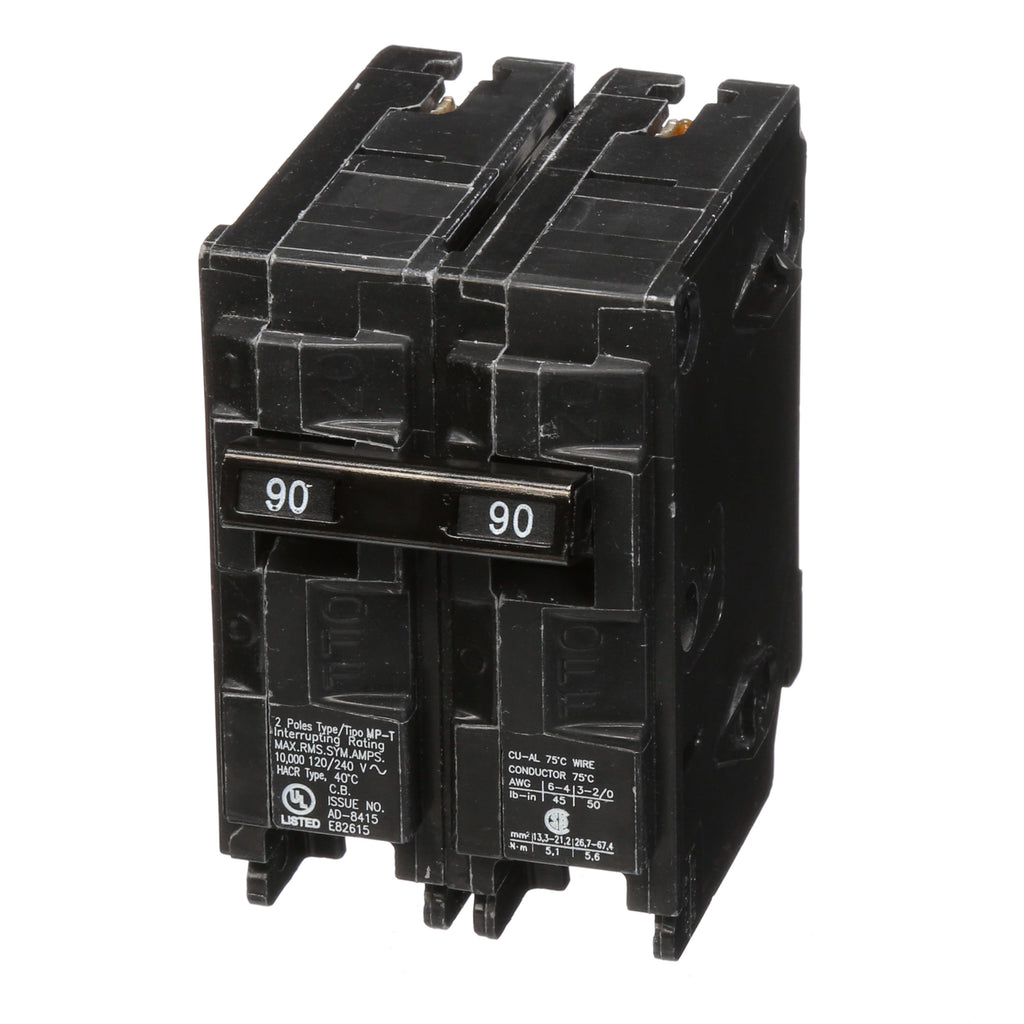

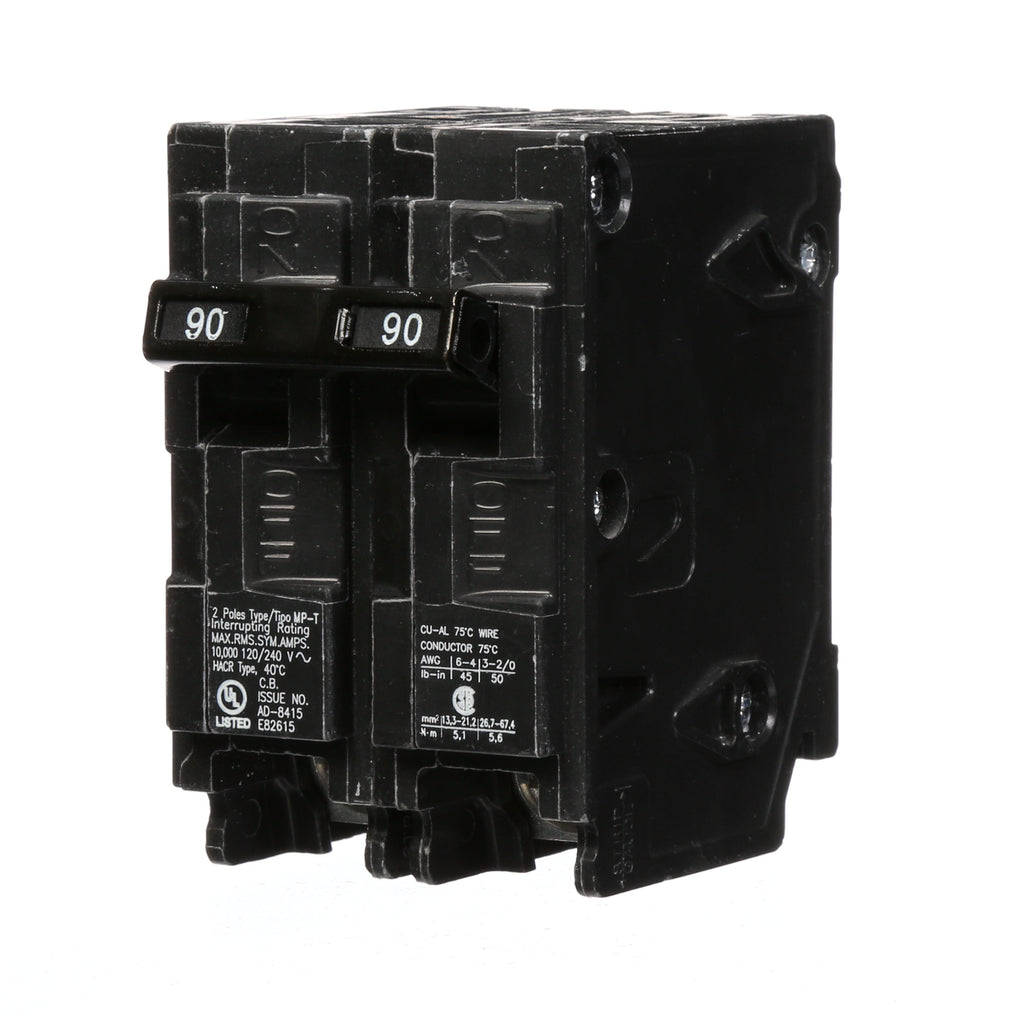

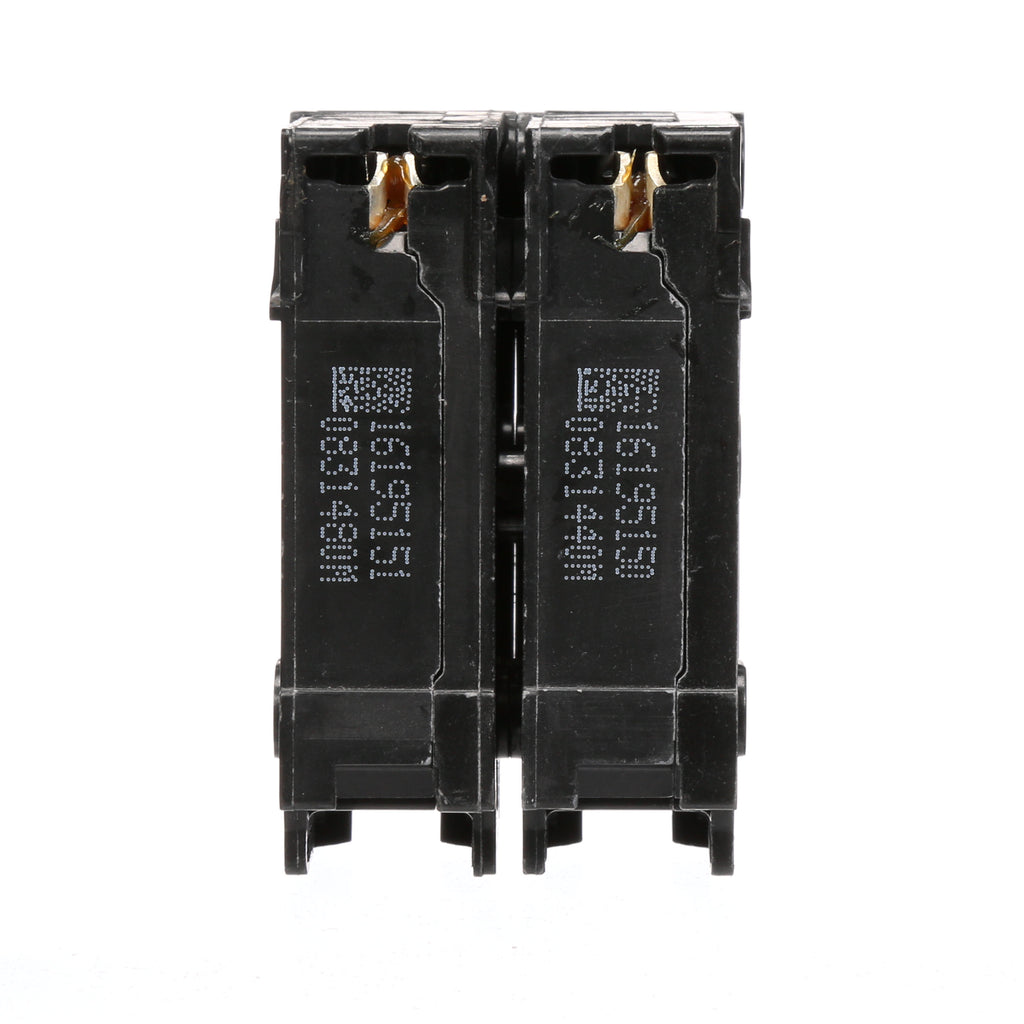

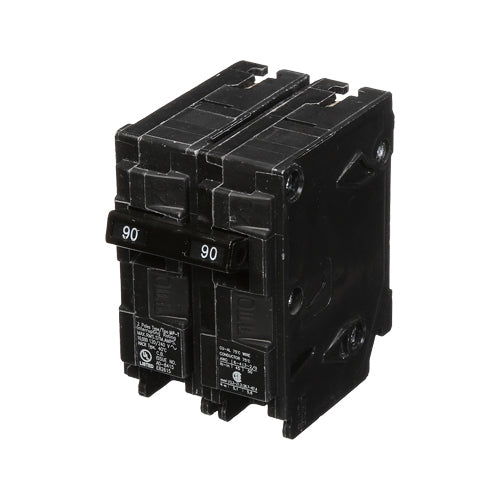

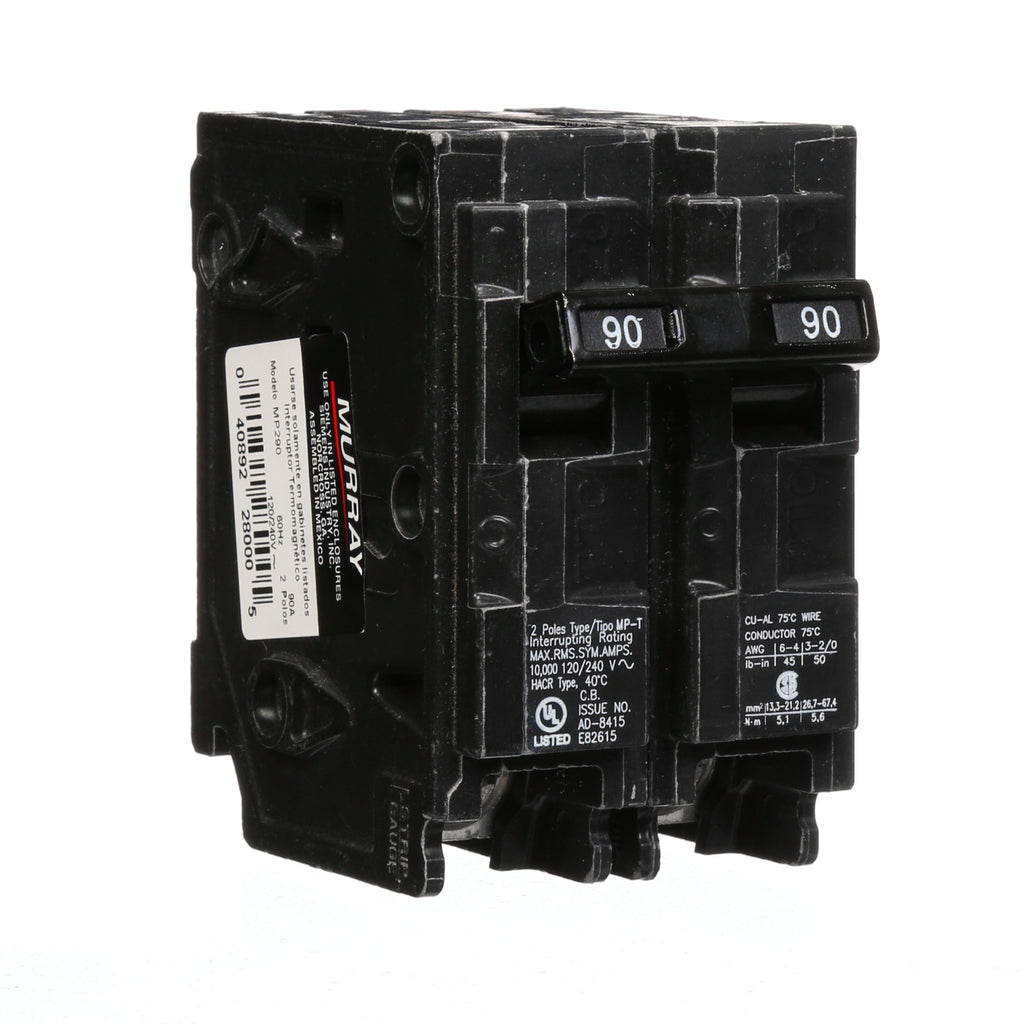

MP290 is a Murray 2-pole circuit breaker rated for 90 amps and 120/240 volts, designed for plug-in mounting in residential and light commercial load centers.MP290 features a thermal magnetic trip unit with a 10kA interrupting rating at 240V, MP-T frame type, and UL certification. It provides reliable overload and short circuit protection with load side lug terminals and supports wire sizes from 8 to 2/0 AWG copper or aluminum.
- Key Specifications
- Amperage: 90 Amps
- Voltage Rating: 120/240 VAC
- Number of Poles: 2
- Mounting Type: Plug-In
- Interrupt Rating: 10kA at 240V
- Frame/Series: MP-T
- Trip Unit: Thermal Magnetic
- Terminal Type: Load Lug
- Wire Size: 8 to 2/0 AWG Copper/Aluminum
- Certifications: UL Listed
Specifications
- Part Number: MP290
- Manufacturer : Murray
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : MP Series
- Type : MP-T
- Voltage : 240
- Amperage : 90
- Phase : 1
- Poles : 2
- AIC rating : 10kA@240V
- Connection : Plug-In
- Functions : LI - Long-Time and Instantaneous Trip
- Protection : Thermal Magnetic
Product Data
- UPC : 040892280005
- GTIN : 00040892280005
- Country of Origin : Mexico
- Dimensions : 2.756 x 1.969 x 2.756 inch
- Weight : 0.639
