2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Murray
- Sub-Category:Molded Case
Description
MP250

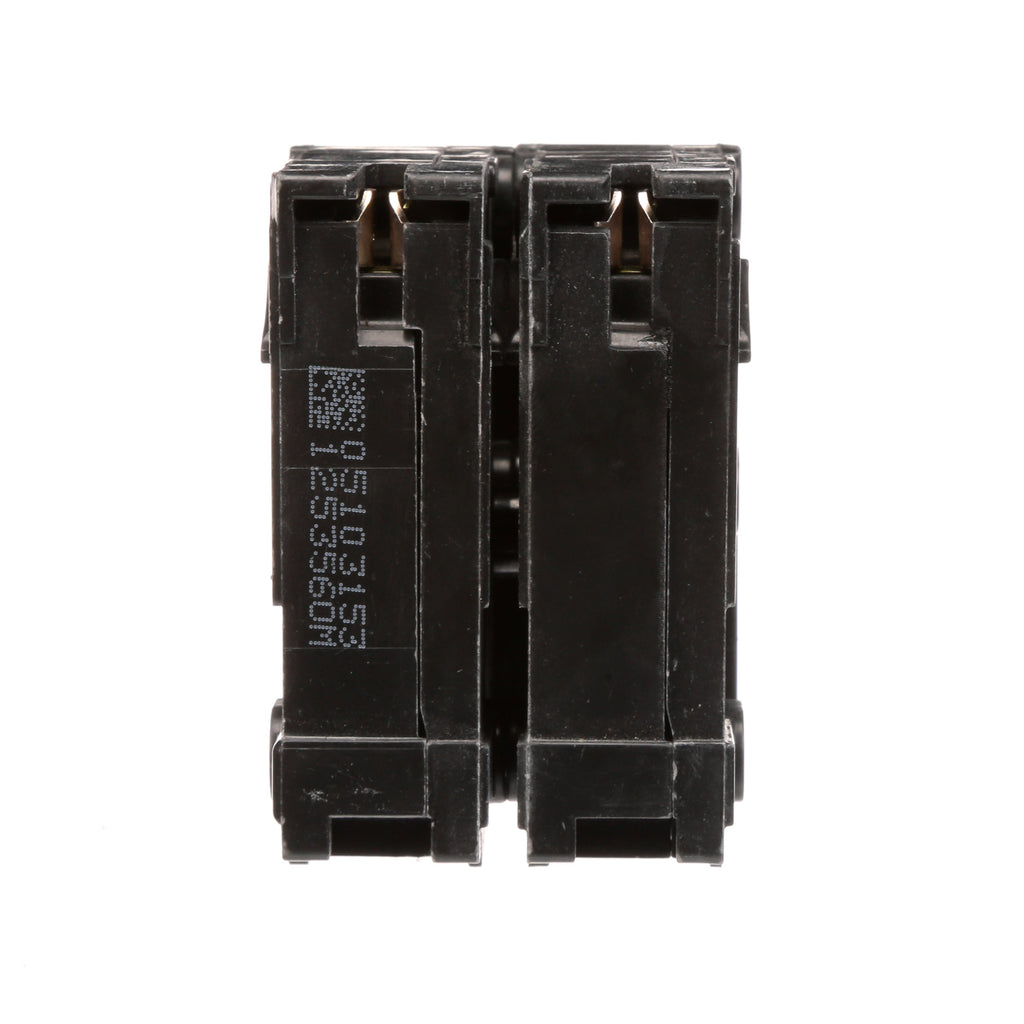

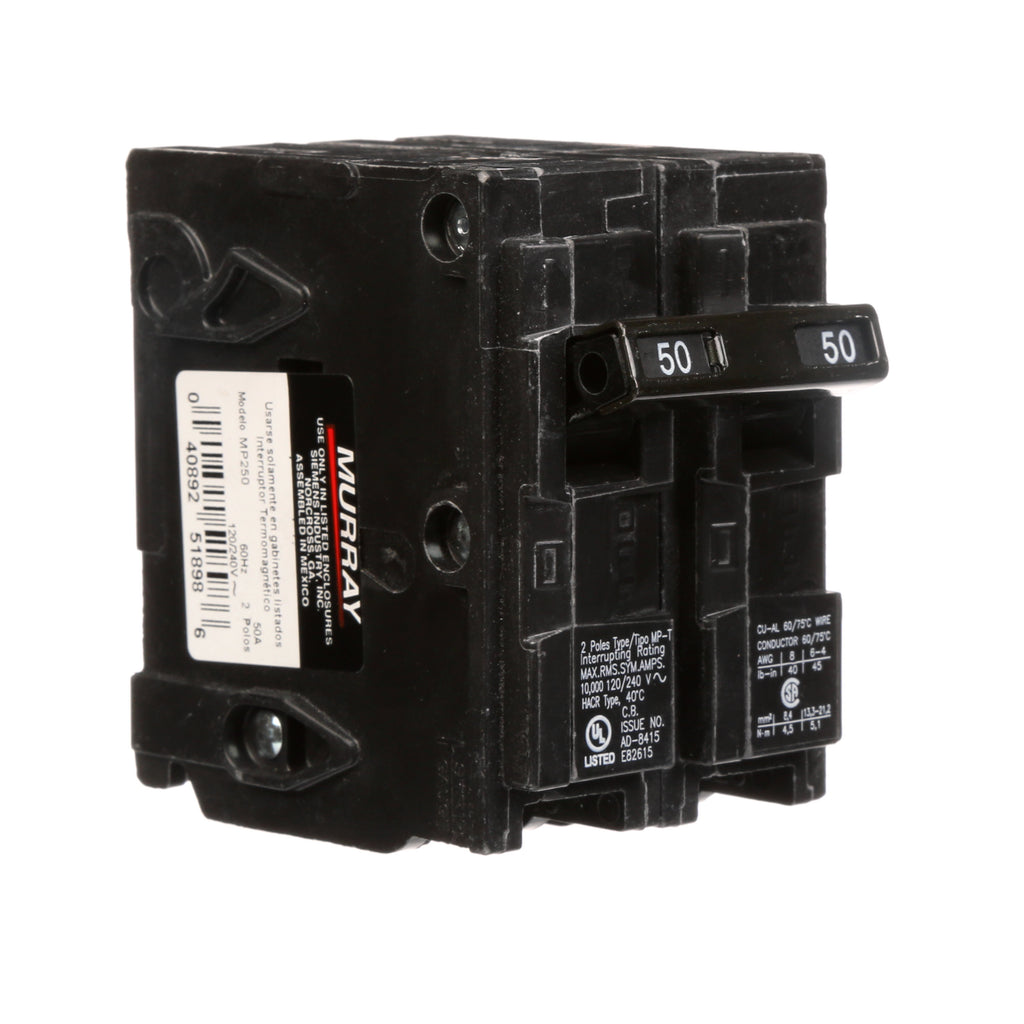

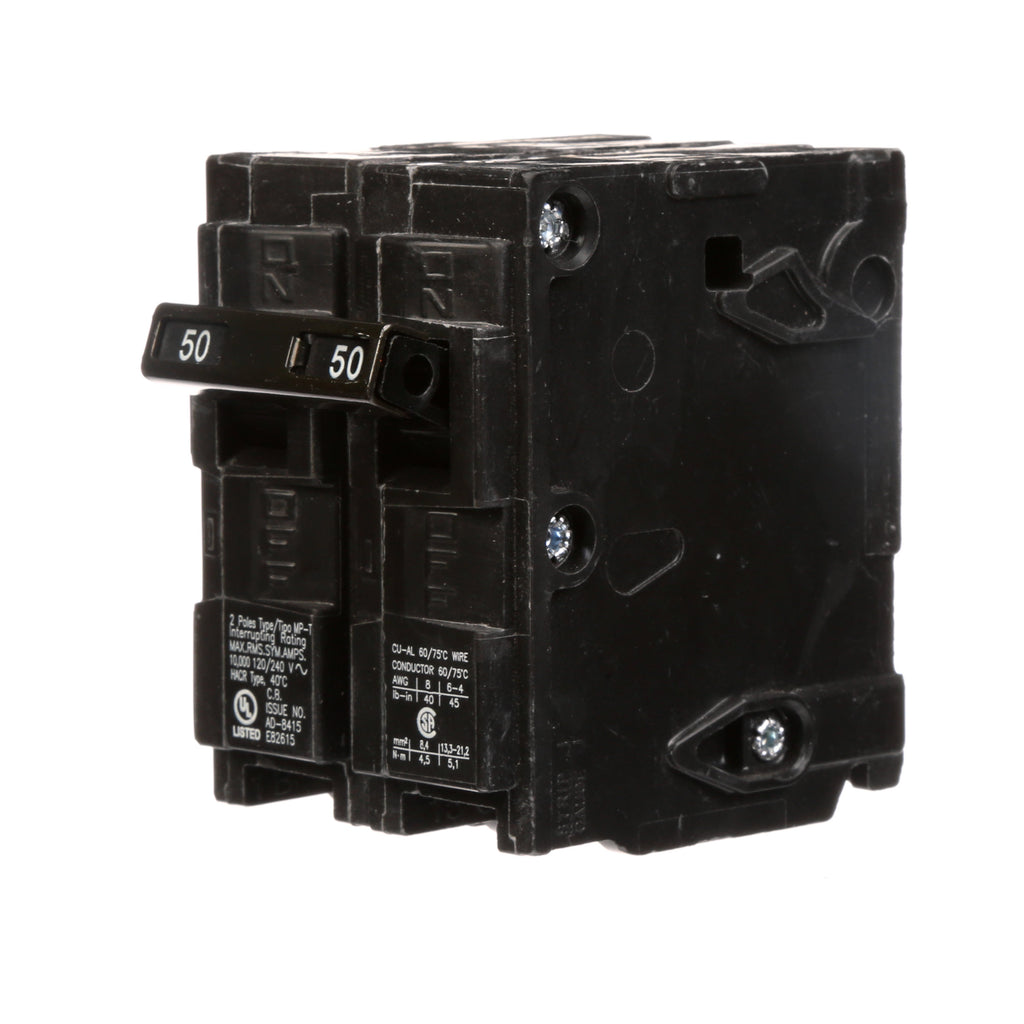

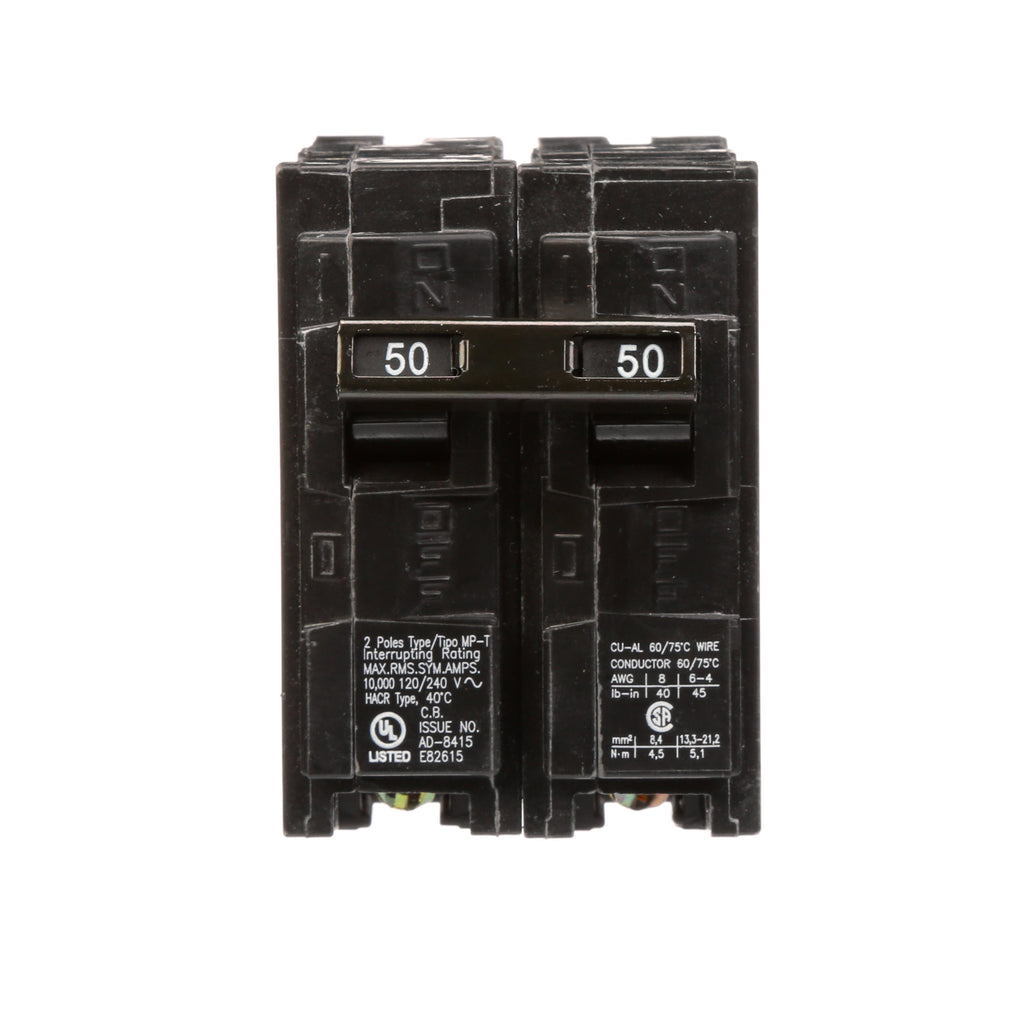

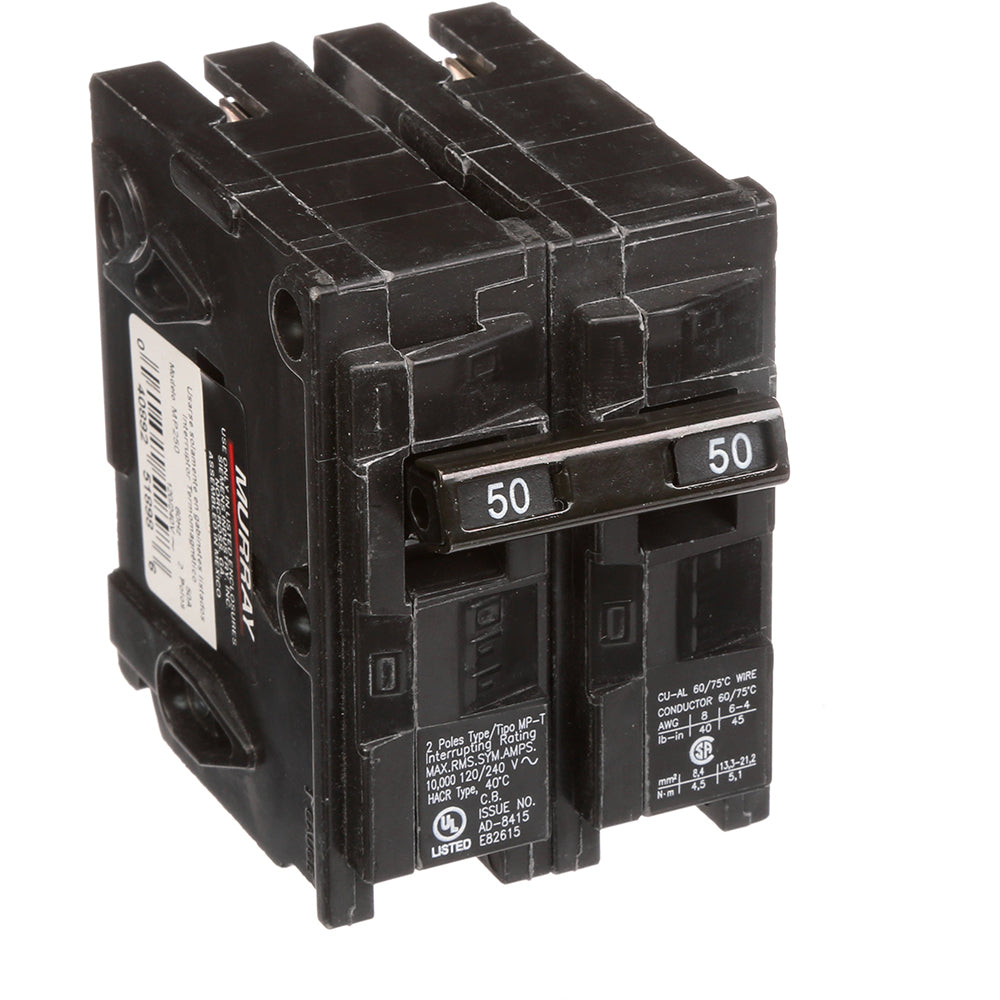

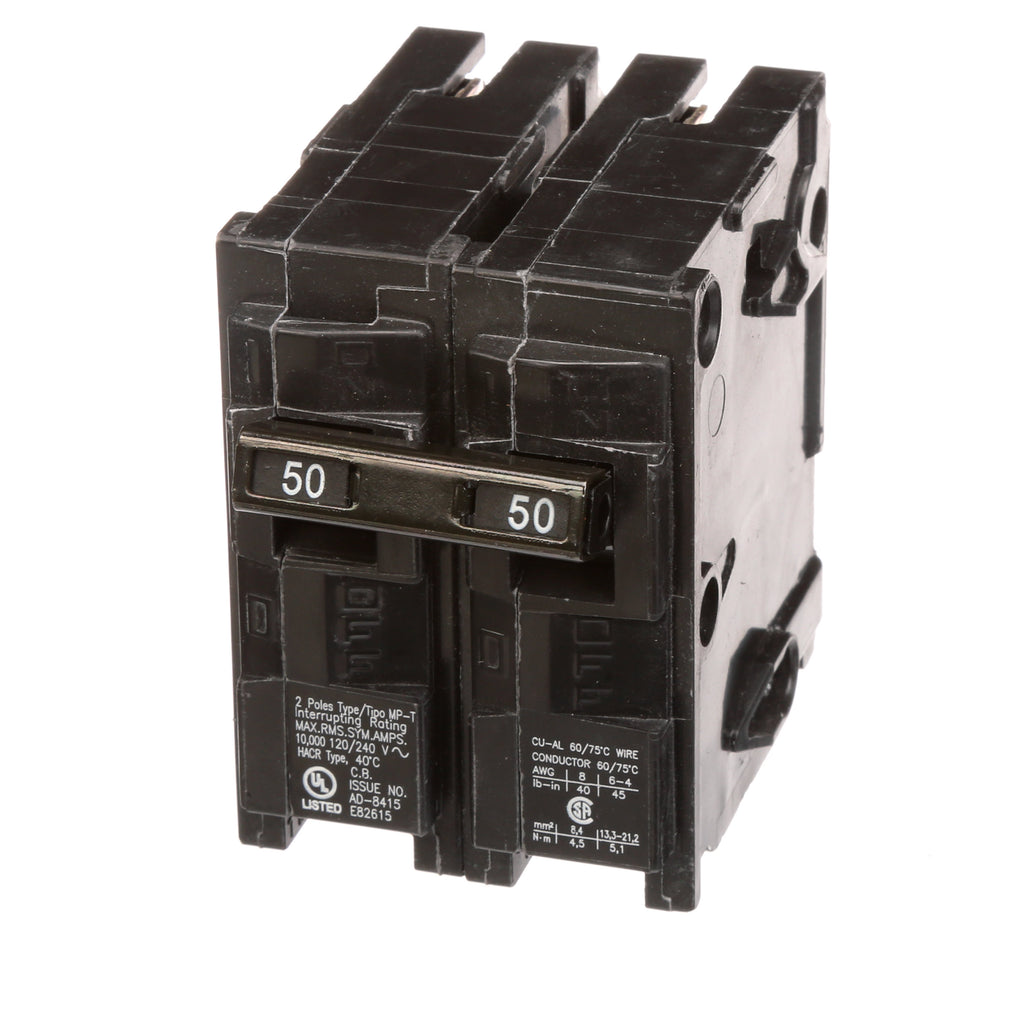

MP250 is a Murray 50 Amp 2-pole plug-in circuit breaker designed for 120/240 Volt systems offering reliable overload and short circuit protection.This Type MP-T circuit breaker features a common trip mechanism, thermal-magnetic trip unit, and a 10,000 Amp interrupting rating. It mounts via plug-in connection and supports wire sizes from 8 to 4 AWG aluminum and 8 to 6 AWG copper. The breaker is UL listed and suitable for residential and commercial load centers requiring a 2-pole 50 Amp breaker.
- Amperage: 50 Amps
- Voltage: 120/240 VAC
- Poles: 2
- Mounting Type: Plug-In
- Interrupting Rating: 10,000 Amps (10 kAIC)
- Trip Unit: Thermal-Magnetic
- Wire Size: 8-4 AWG Aluminum, 8-6 AWG Copper
- Terminal Type: Lug
- Series/Frame: Type MP-T
- Certifications: UL Listed
Specifications
- Part Number: MP250
- Manufacturer : Murray
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : MP Series
- Type : MP-T
- Voltage : 240
- Amperage : 50
- Phase : 1
- Poles : 2
- AIC rating : 10kA@240V
- Connection : Plug-In
- Functions : LI - Long-Time and Instantaneous Trip
- Protection : Thermal Magnetic
Product Data
- UPC : 040892518986
- GTIN : 00040892518986
- Country of Origin : Mexico
- Dimensions : 12.598 x 3.15 x 3.15 inch
- Weight : 0.573
