Product Info
- Manufacturer:Murray
- Sub-Category:Molded Case
Description
MP230240CT2

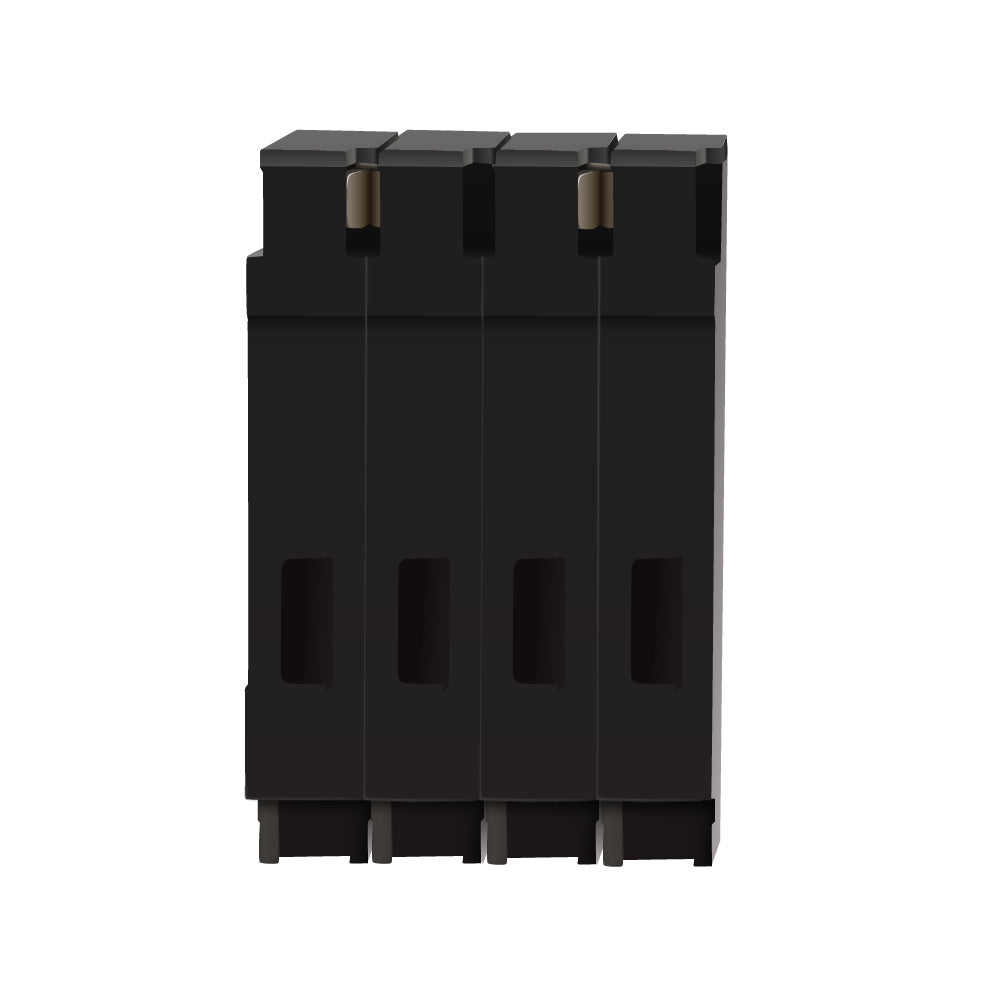

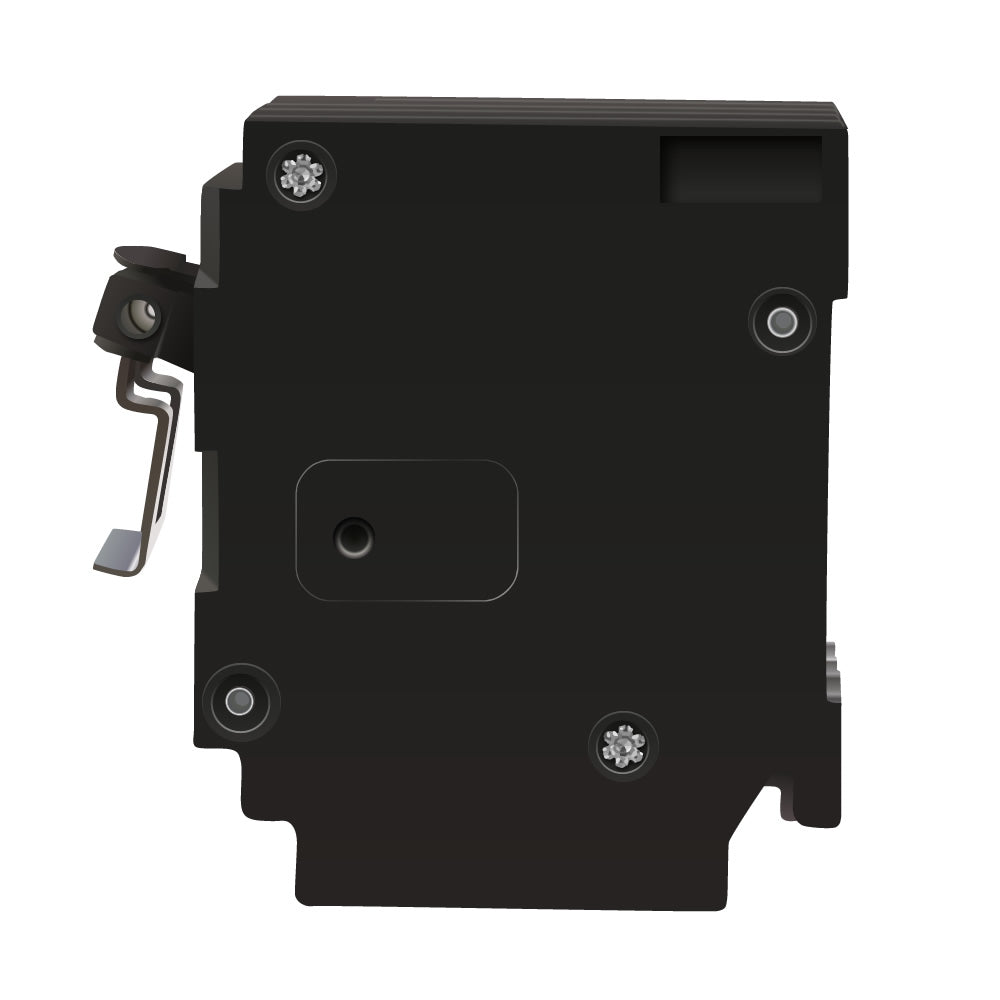

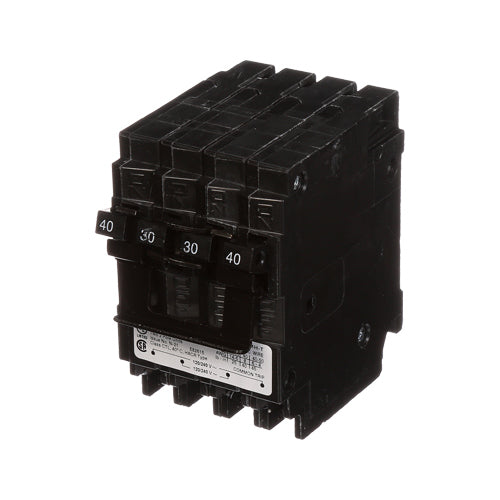

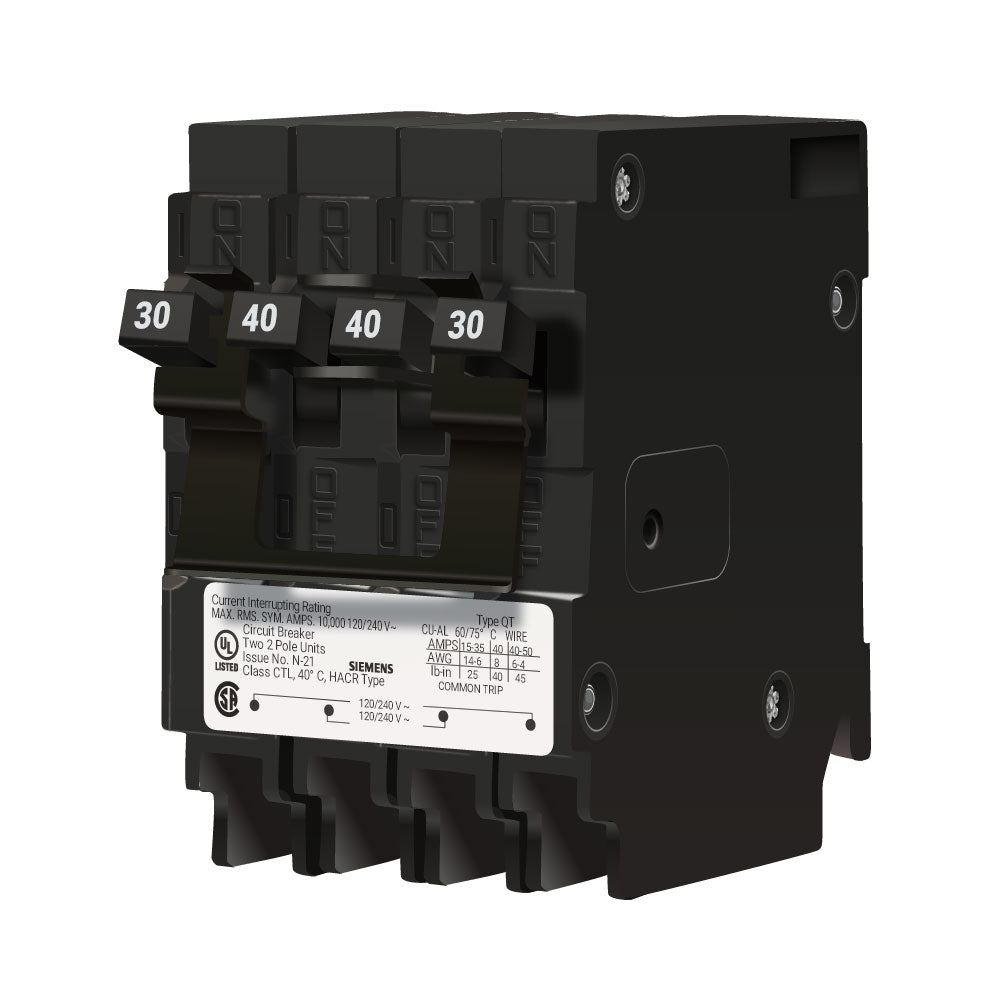

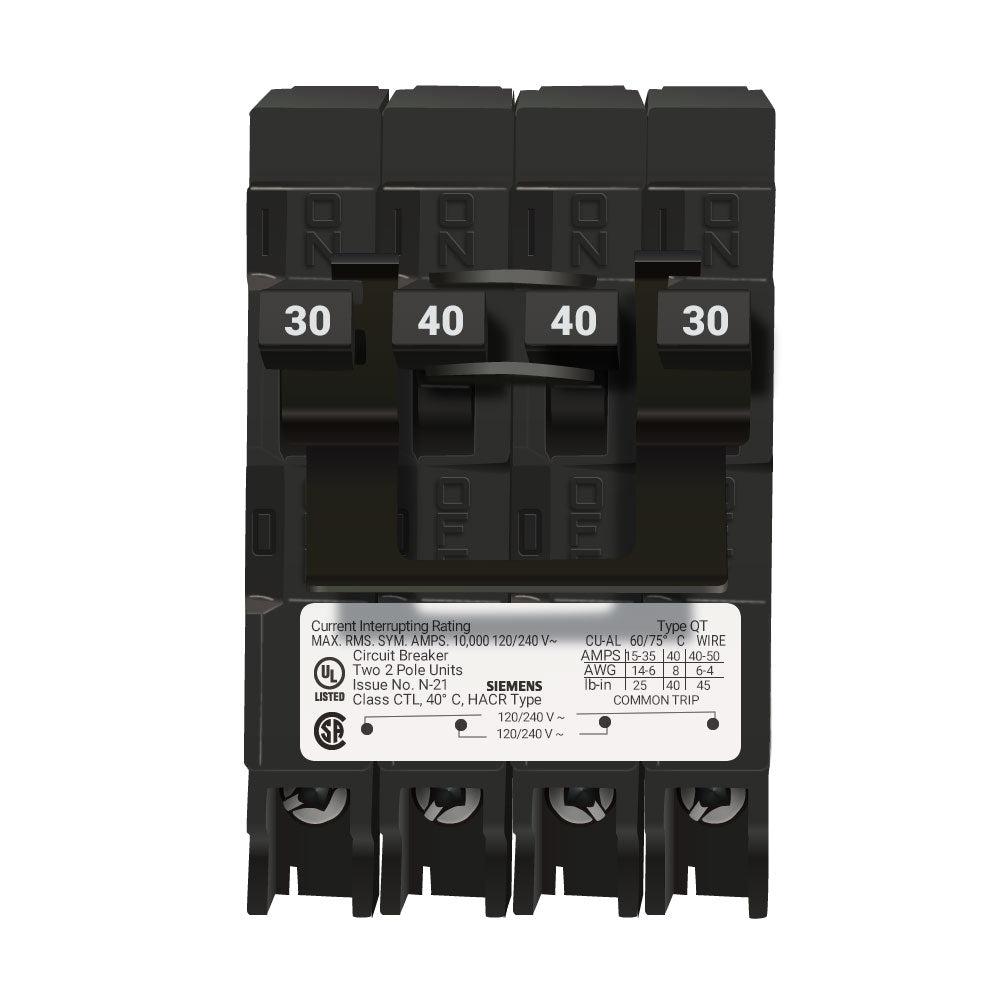

MP230240CT2 is a quadplex plug-in mount circuit breaker designed for 120/240V AC applications, featuring dual 2-pole configurations with 30A outer and 40A inner ratings. This Murray circuit breaker is built for reliable protection in load centers and panelboards, offering a robust 10kA interrupt rating and thermal magnetic trip technology for both long time and instantaneous protection. The quadplex design allows for efficient use of panel space, and the plug-in mount ensures quick installation and replacement.
- Part Number: MP230240CT2
- Manufacturer: Murray
- Amperage: 30A (outer), 40A (inner)
- Voltage: 120/240V AC
- Poles: 4 (2 x 2-pole)
- Mounting Type: Plug-In
- Interrupt Rating: 10kA
- Series/Frame: MH-T
- Frame Type: MP
- Trip Unit: Thermal Magnetic
- Wire Size: 8-6 AWG Copper / 8-4 AWG Aluminum
- Load Side Lug Terminals
Specifications
- Part Number: MP230240CT2
- Manufacturer : Murray
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : MP Series
- Type : MP-T
- Voltage : 240
- Amperage : 40
- Phase : 1
- Poles : 4
- AIC rating : 10kA@240V
- Connection : Plug-In
- Functions : Long Time and Instantaneous Trip
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 040892001303
- GTIN : 00040892001303
- Country of Origin : Mexico
- Dimensions : 2.756 x 1.969 x 2.756 inch
- Weight : 0.794
- Certification : Ul Listed
- Wire Size : AWG 8 to AWG 6, Copper, AWG 8 to AWG 4, Aluminum
