Product Info
- Manufacturer:Murray
- Sub-Category:Molded Case
Description
MP115DFP

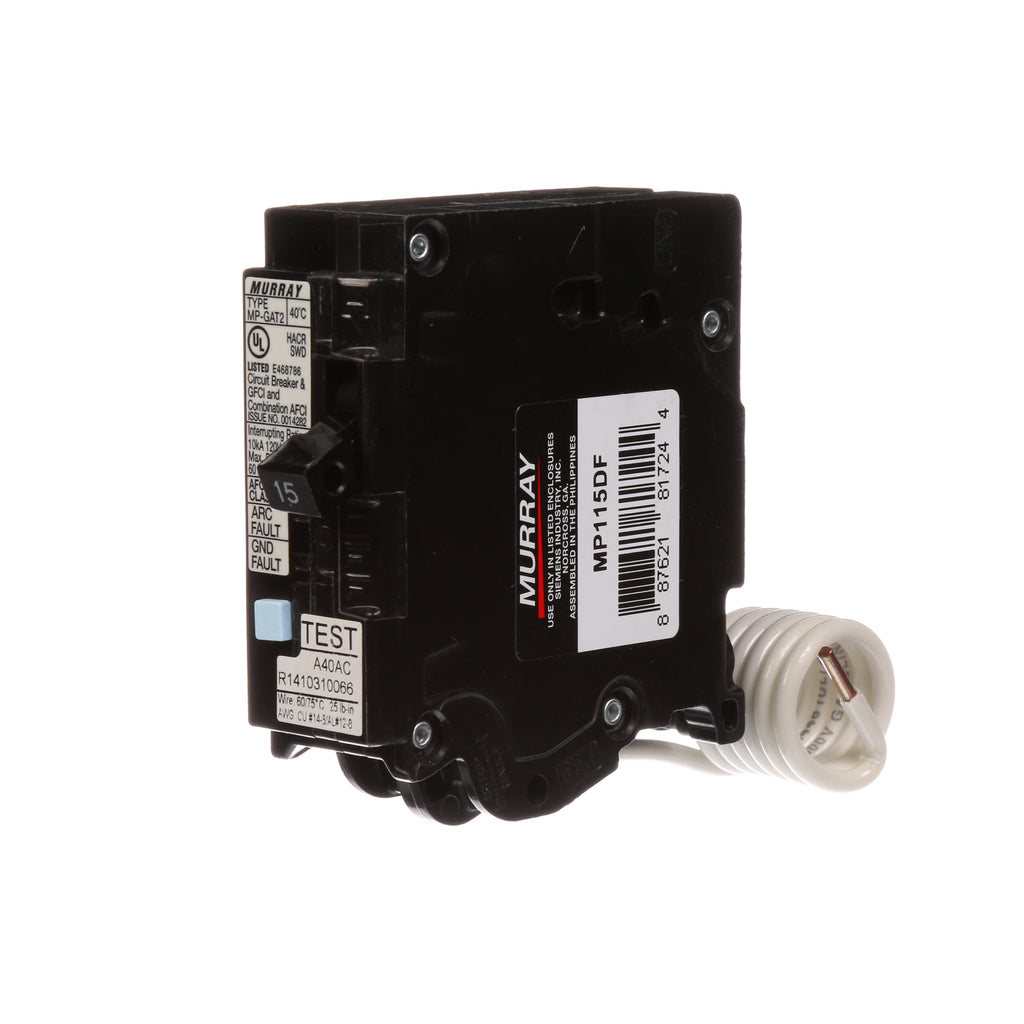

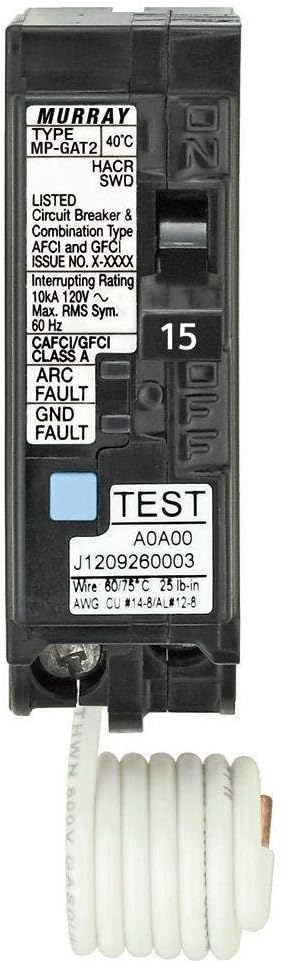

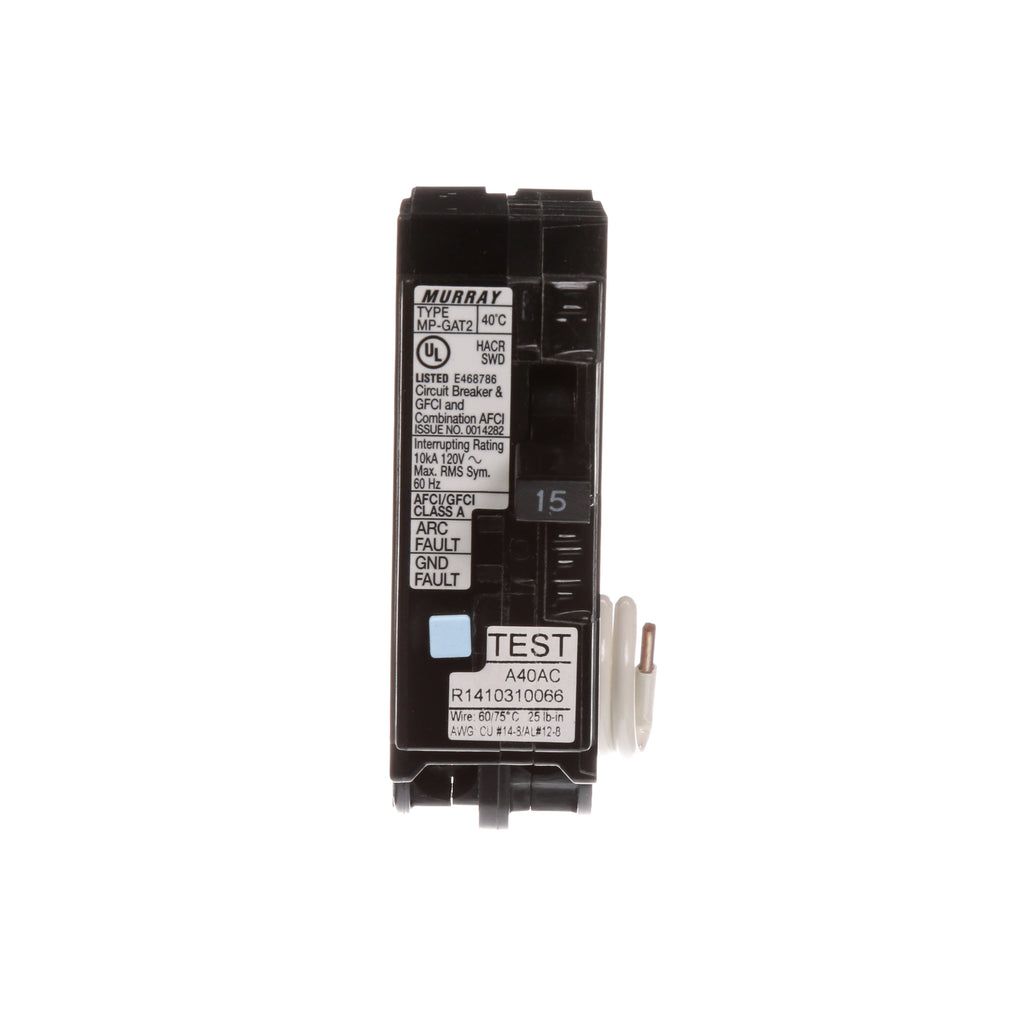

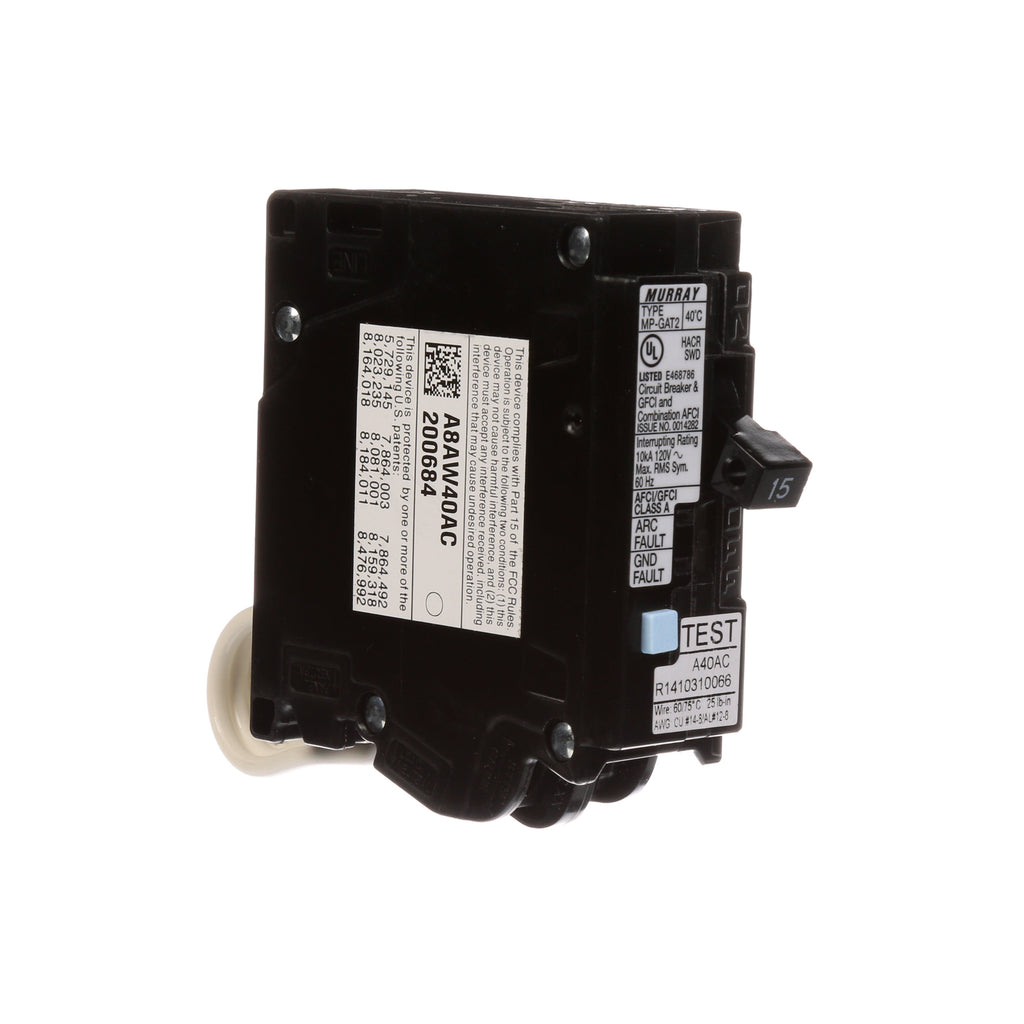

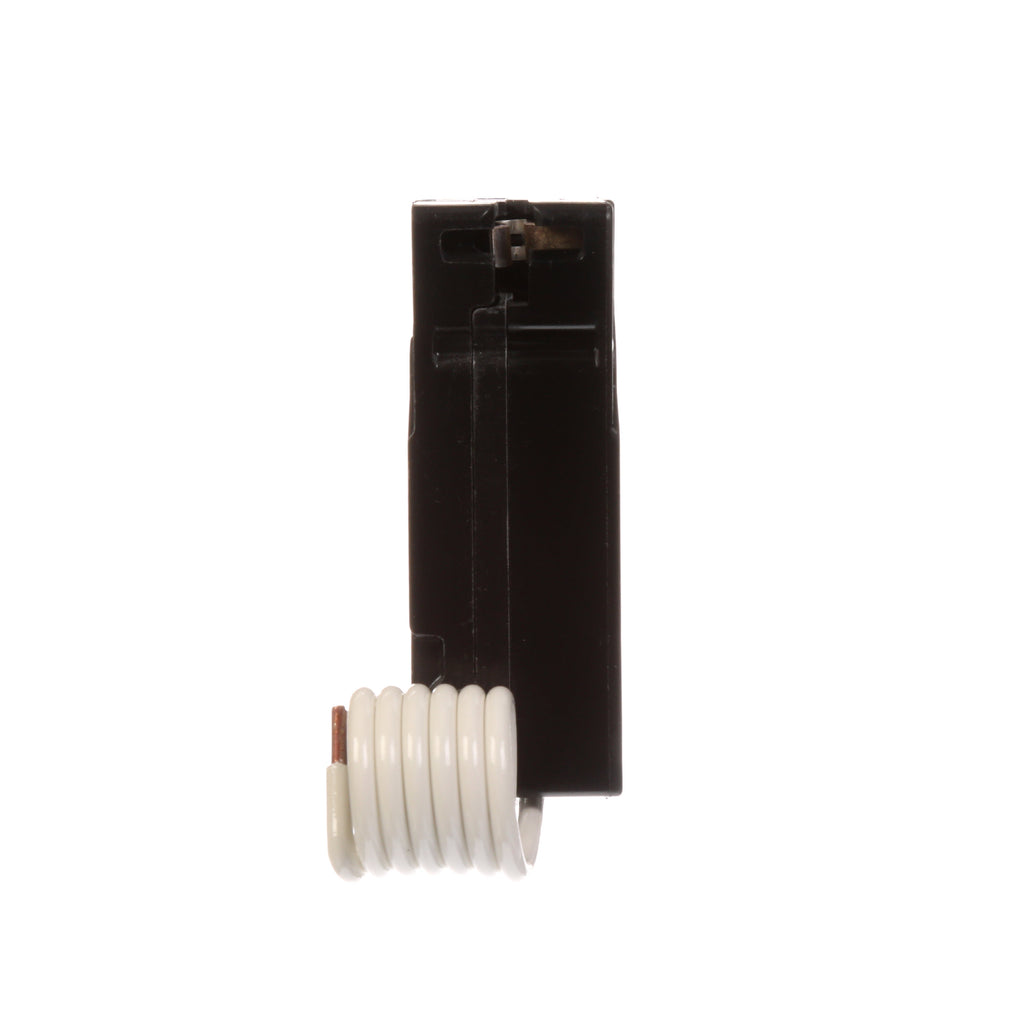

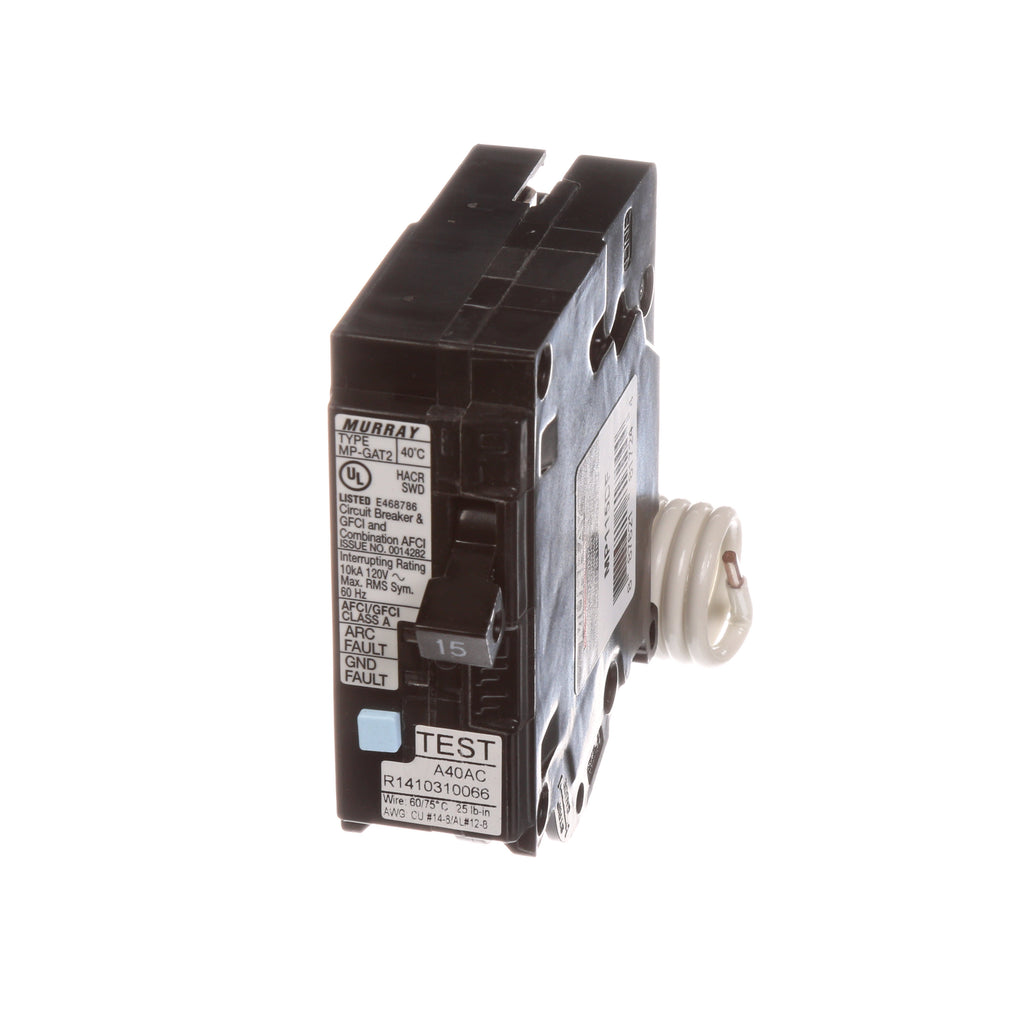

MP115DFP is a 15 Amp, 120 Volt, 1-pole dual function AFCI/GFCI circuit breaker from Murray designed for plug-in mounting in MP series load centers.This circuit breaker combines Class A 5mA Ground Fault Circuit Interrupter (GFCI) protection with Combination Arc Fault Circuit Interrupter (AFCI) technology, providing enhanced safety by protecting against both ground faults and arc faults. It features a thermal magnetic trip unit, a 10kA interrupting rating at 120V, and is UL listed for residential and commercial applications. The MP115DFP is designed for use in Murray MP frame load centers with plug-in connection type and meets HACR standards.
- Key Specifications
- Amperage: 15 Amp
- Voltage Rating: 120 VAC
- Number of Poles: 1
- Mounting Type: Plug-In
- Interrupting Rating: 10,000 AIC at 120V
- Frame Type: MP
- Trip Unit: Thermal Magnetic with AFCI/GFCI Dual Function
- Protection: Combination Arc Fault and Ground Fault (Class A 5mA GFCI)
- Certifications: UL Listed, HACR Compliant
- Connection Type: Plug-In
Specifications
- Part Number: MP115DFP
- Manufacturer : Murray
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : MP Series
- Type : MP-T
- Voltage : 120
- Amperage : 15
- Phase : 1
- Poles : 1
- AIC rating : 10kA@120V
- Connection : Plug-In
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 887621817282
- GTIN : 00887621817282
- Country of Origin : Philippines
- Dimensions : 0.787 x 5.906 x 6.299 inch
- Weight : 0.243 lb
