MLLAN2N-UNV1-S903D-M2 - Eaton Lighting and controls LED Fixture 30W

MLLAN2N-UNV1-S903D-M2

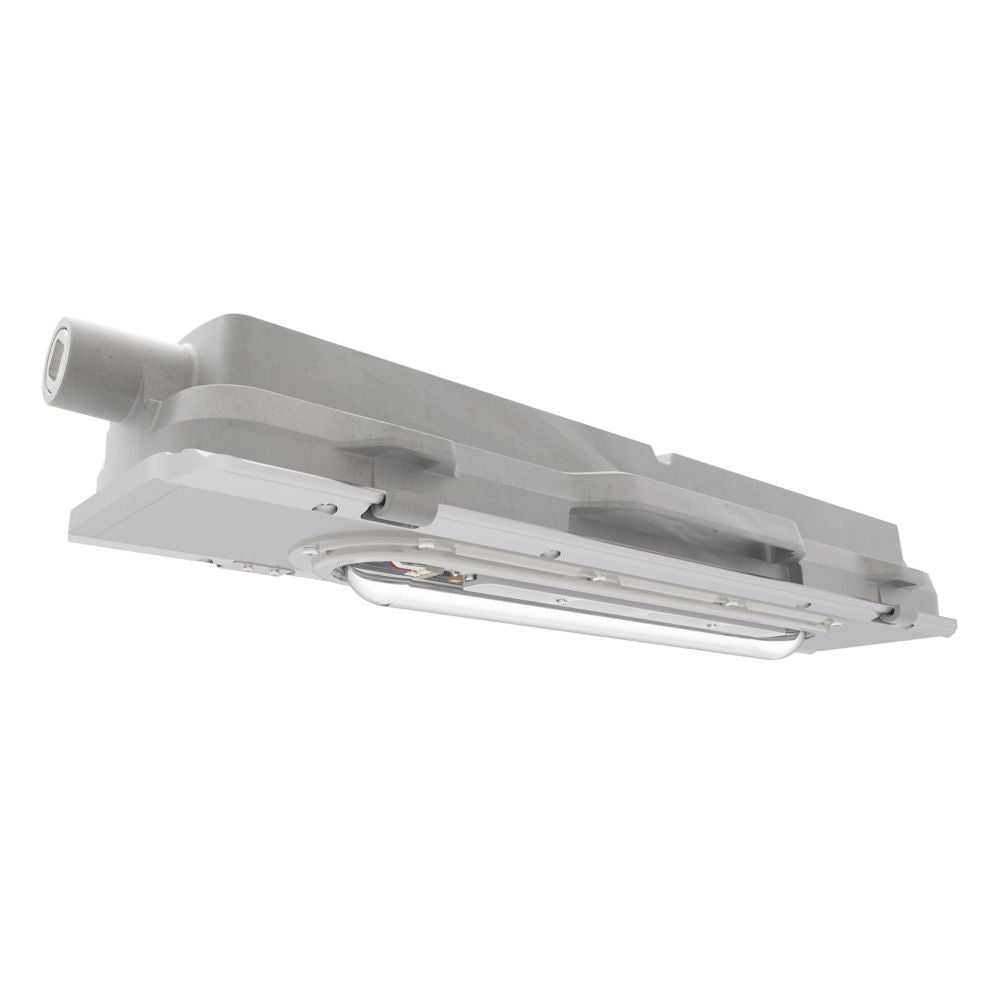

MLLAN2N-UNV1-S903D-M2 is an Eaton Crouse-Hinds series Champ MLLA linear LED light fixture designed for hazardous and classified locations. This 2-foot neutral white LED fixture delivers 4000 lumens at 132 lumens per watt with a wide optical distribution and flush ceiling mounting configuration. The fixture features a copper-free aluminum construction with a natural aluminum finish, diffused polycarbonate lens, and 3/4" entries. It is rated for 120-277 Vac and 127/250 Vdc operation at 50/60 Hz with a power factor exceeding 0.92. The unit meets NEMA 4X and IP66/IP67 ingress protection ratings, and is certified for Class I Division 2, Class II Division 1, Class III, and Class I Zone 2 hazardous locations per NEC/CEC standards. Key Specifications

• Part Number: MLLAN2N-UNV1-S903D-M2
• Manufacturer: Eaton
• Lamp Type: LED
• Color Temperature: Neutral white
• Lamp Length: 2 ft
• Lumens: 4000
• Wattage: 30W
• Lumens per Watt: 132
• Voltage Rating: 120-277 Vac, 127/250 Vdc
• Frequency Rating: 50/60 Hz
• Power Factor: > 0.92
• Optical Distribution: Narrow
• Mounting Method: Flush ceiling
• Lens Material: Diffused polycarbonate
• Entry Size: 3/4"
• Finish: Natural aluminum
• Material: Copper-free aluminum
• NEMA Rating: 4X
• Ingress Protection: IP66, IP67
• NEC Hazardous Rating: Class I Division 2, Class II Division 1, Class III, Class I Zone 2
• Product Height: 4.42 in
• Product Width: 7.13 in
• Product Weight: 19.1 lb

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: MLLAN2N-UNV1-S903D-M2
• Manufacturer : Eaton
• Brand : Eaton
• Category : Lighting and controls
• Item Subcategory : Linear
• Voltage : 120-277 V, 127/250 V
• Nema Rating : 4X
• Watts : 30W
• Hz : 50/60 Hz
• Enclosure Grade : IP66, IP67
• Material : Copper-free aluminum
• NEC hazardous rating : Class I Division 2, Class II Division 1, Class III, Class I Zone 2
• Ingress protection (IP) ratings : IP66 IP67
• Lumens : 4000
• Lumens per watt : 132
• Color temperature : Neutral white
• Mounting Method : Flush ceiling
• Power factor : > 0.92
• Special features : Diffused polycarbonate lens, 3/4" entries, Copper-free aluminum, 2 ft length
• Color : Natural aluminum

Product Data

• UPC : 662276995505
• Dimensions : 25.94 in x 4.42 in x 7.13 in (Length/Depth x Height x Width)
• Weight : 19.1 lb
