MLLAN2N-UNV1-S903-M2 - Eaton Lighting and controls LED Fixture 4000 lm

MLLAN2N-UNV1-S903-M2

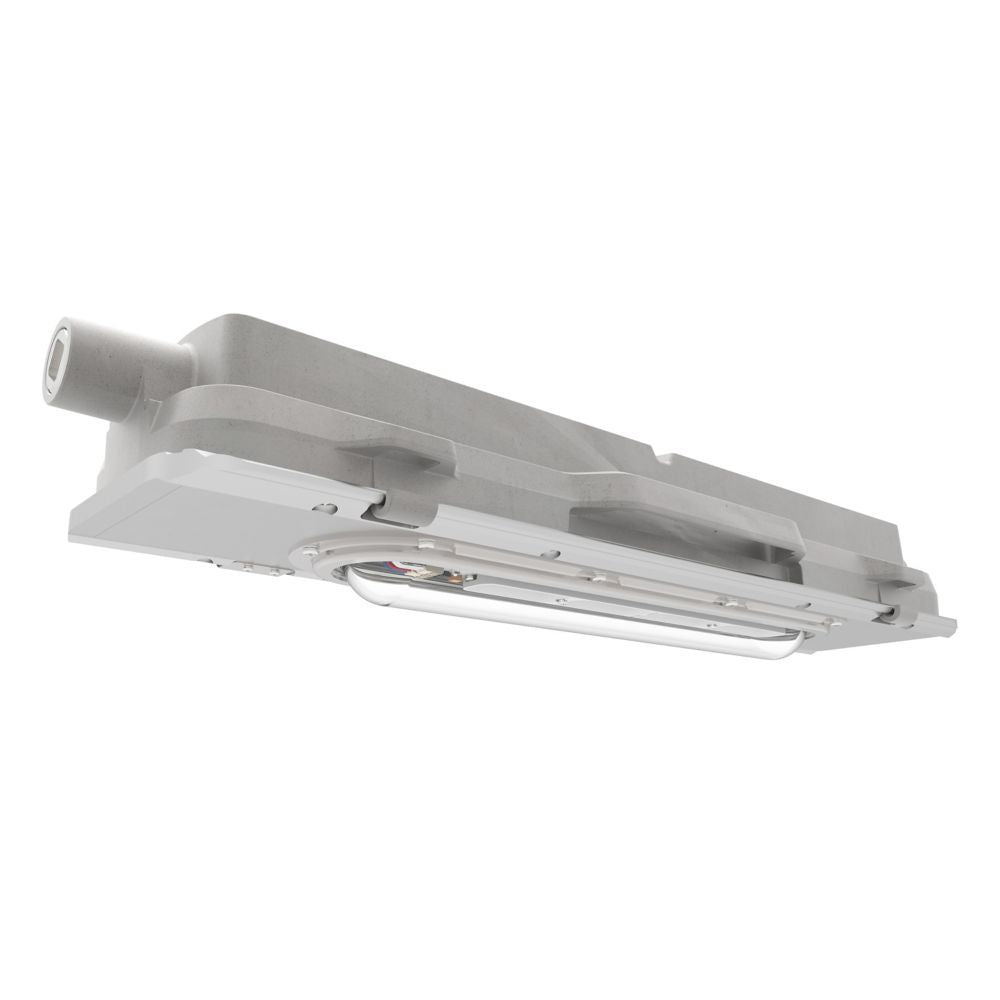

MLLAN2N-UNV1-S903-M2 is an Eaton Crouse-Hinds series Champ MLLA linear LED light fixture designed for hazardous and classified locations. Technical Specifications: This 2-foot fixture delivers 4000 lumens at 132 lumens per watt efficiency with a 30-watt power consumption. It features neutral white color temperature, polycarbonate lens, and copper-free aluminum construction with natural aluminum finish. The fixture is rated for Class I Division 2, Class I Zone 2, Class II Division 1, and Class III hazardous locations per NEC/CEC standards. It supports voltage ratings of 120-277 Vac and 127/250 Vdc at 50/60 Hz with a power factor greater than 0.92. The unit has a NEMA 4X rating and IP66/IP67 ingress protection, with 3/4-inch entries and flush ceiling mounting. Key Specifications

• Part Number: MLLAN2N-UNV1-S903-M2
• Manufacturer: Eaton
• Lumens: 4000
• Wattage: 30 W
• Lumens per Watt: 132
• Color Temperature: Neutral white
• Voltage Rating: 120-277 Vac, 127/250 Vdc
• Frequency: 50/60 Hz
• NEMA Rating: 4X
• IP Rating: IP66, IP67
• Mounting Method: Flush ceiling
• Lamp Length: 2 ft
• Power Factor: >0.92

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: MLLAN2N-UNV1-S903-M2
• Manufacturer : Eaton
• Brand : Eaton
• Category : Lighting and controls
• Item Subcategory : Linear
• Voltage : 120-277 V
• Nema Rating : 4X
• Watts : 30 W
• Hz : 50/60 Hz
• Material : Copper-free aluminum
• NEC hazardous rating : Class II, Division 1 Class I, Division 2 Class I, Zone 2 Class III
• Ingress protection (IP) ratings : IP66, IP67
• Lumens : 4000
• Lumens per watt : 132
• Color temperature : Neutral white
• Mounting Method : Flush ceiling
• Power factor : >0.92
• Trade size : 3/4 in

Product Data

• UPC : 662276995543
• Dimensions : 25.94 in x 4.42 in x 7.13 in (Length/Depth x Height x Width)
• Weight : 19.1 lb
