MLLA4-UNV1-S903-EM1-P-M2 - Eaton Lighting and controls LED 152 LPW

MLLA4-UNV1-S903-EM1-P-M2

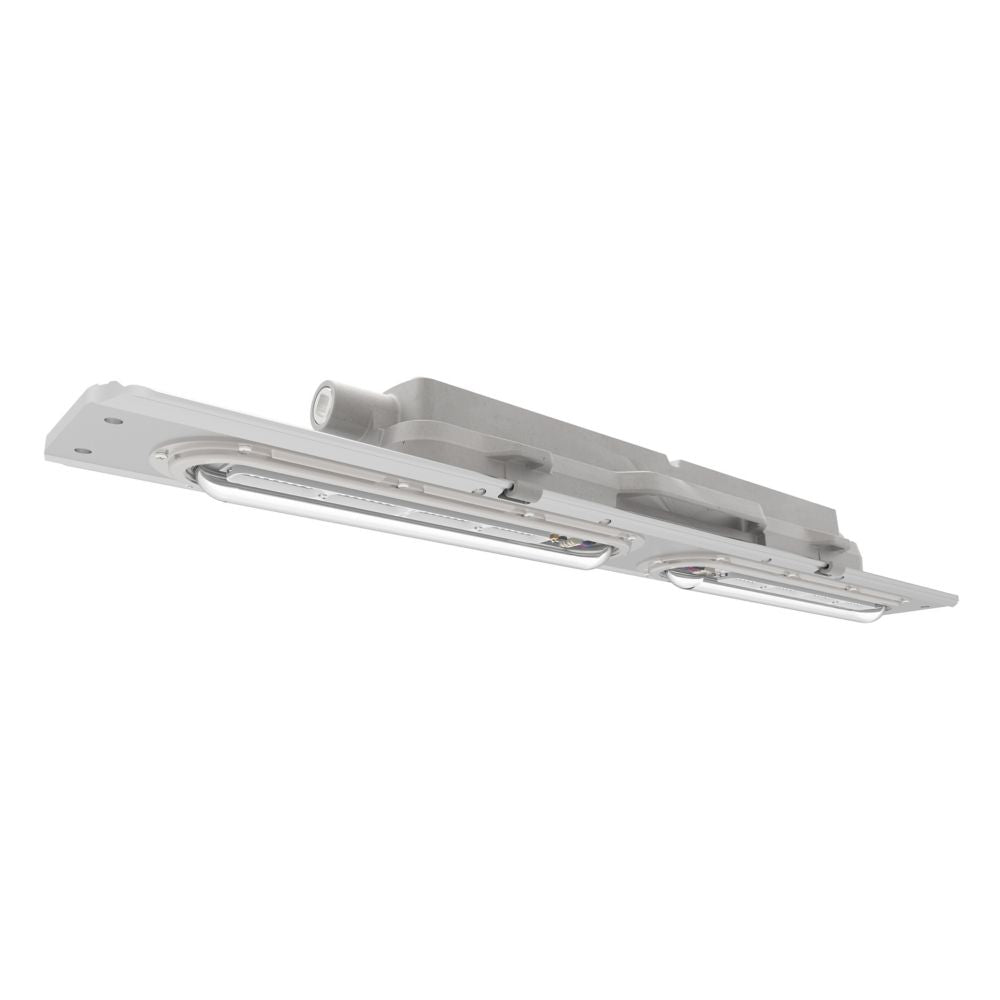

MLLA4-UNV1-S903-EM1-P-M2 is an Eaton Crouse-Hinds series Champ MLLA linear LED light fixture designed for hazardous locations with high efficacy and emergency battery backup. The fixture delivers up to 152 lumens per watt with a 4-foot length, polycarbonate lens, and natural aluminum finish, suitable for Class I and Class II hazardous environments. Operating temperature range is -40°C to +65°C (standard model), with low profile design (<3 inches height) and versatile mounting options including ceiling/swivel, wall, flush, pole, and pendant configurations. The unit features integrated 90-minute emergency battery backup, high vibration resistance rated to 2,000 PSI, and surge protection up to 10 kV. Input voltage is 120-277 VAC with 56W power consumption and 7,000 lumens output. Key Specifications

• Part Number: MLLA4-UNV1-S903-EM1-P-M2
• Manufacturer: Eaton
• Lumens: 7000
• Lumens per Watt: 152
• Power Consumption: 56 W
• Voltage: 120-277 VAC
• Operating Temperature: -40°C to +65°C
• Length: 4 ft
• Height: 2.7 inch
• Width: 6.22 inch
• Weight: 22.5 pound
• Mounting: Ceiling/swivel, wall, flush, pole, pendant
• Emergency Battery Backup: 90 minutes
• Surge Protection: 10 kV
• Lens Material: Polycarbonate
• Housing Material: Copper-free aluminum
• Hazardous Location Rating: Class I, Class II

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: MLLA4-UNV1-S903-EM1-P-M2
• Manufacturer : Eaton
• Brand : Eaton
• Category : Lighting and controls
• Item Subcategory : Linear
• Voltage : 120-277 V
• Nema Rating : 4X
• Watts : 56
• Operating Temperature Maximum Celsius : -40°C to +65°C
• Enclosure : Polycarbonate lens
• Metal Type : Copper-free aluminum
• Material : Copper-free aluminum
• NEC hazardous rating : Class I, Division 2 Class I, Zone 2 Class II, Division 1 Class III
• Ingress protection (IP) ratings : IP66 IP67
• Lumens : 7000
• Lumens per watt : 152
• Color temperature : Cool white
• Mounting Method : Ceiling/swivel, wall, flush, pole, pendant
• Power factor : > 0.94
• Certifications and compliances : Class I Division 2, Class II Division 1, Type 4X, IP66/67
• Special features : Integrated emergency battery backup (90 minutes), surge protection (10 kV), high vibration resistance (2000 PSI)

Product Data

• UPC : 786689716820
• Dimensions : 39 in x 4.42 in x 7.13 in (Length/Depth x Height x Width)
• Weight : 23.5 lb
