MLLA2-UNV1-S903D-WH-M2 - Eaton Crouse-Hinds Lighting and controls LED 2ft 3000lm

MLLA2-UNV1-S903D-WH-M2

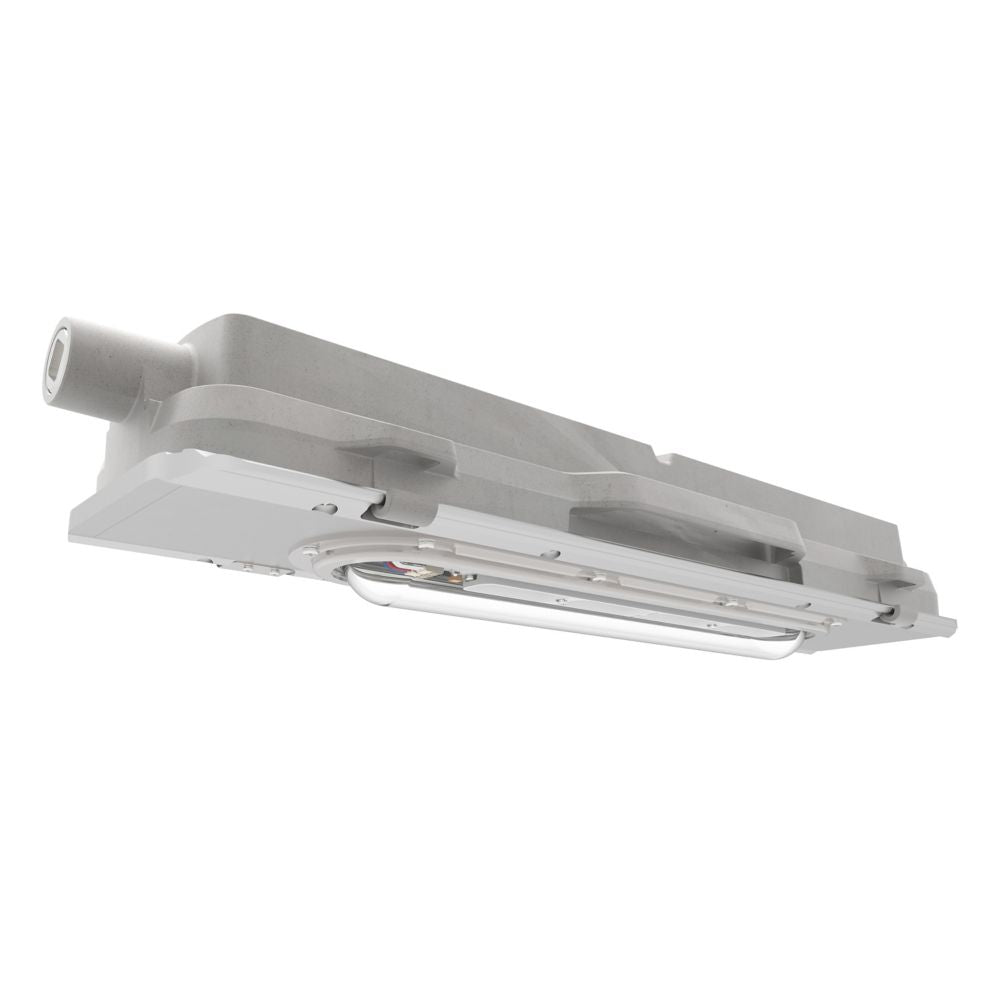

MLLA2-UNV1-S903D-WH-M2 is an Eaton Crouse-Hinds Champ MLLA series linear LED light fixture designed for hazardous and classified locations. This 2-foot fixture delivers 3000 lumens with warm white color temperature (3000K) and diffused polycarbonate lens, offering high efficacy up to 130 lumens per watt. The fixture is certified for Class I Division 2, Class II Division 1, and Class III hazardous areas with NEMA 4X rating and IP66/IP67 ingress protection. It features a slim 4.4-inch profile, operates on 120-277 VAC at 50/60 Hz, and includes a 0-10V dimmable driver with integral emergency battery back-up capability (90-minute runtime). The copper-free aluminum construction with natural finish and 3/4-inch entries supports flush ceiling mounting in confined or low-height spaces. Key Specifications

• Part Number: MLLA2-UNV1-S903D-WH-M2
• Manufacturer: Eaton Crouse-Hinds
• Lumens: 3000
• Lumens per Watt: 130
• Color Temperature: 3000K (Warm White)
• Voltage: 120-277 V
• Frequency: 50/60 Hz
• Power: 30 W
• Lens Material: Diffused Polycarbonate
• Mounting Method: Flush Ceiling
• NEMA Rating: 4X
• IP Rating: IP66/IP67
• Hazard Classification: Class I Division 2, Class II Division 1, Class III
• Operating Temperature: -40°C to +65°C
• Dimmable: 0-10V

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: MLLA2-UNV1-S903D-WH-M2
• Manufacturer : Eaton Crouse-Hinds
• Brand : Eaton Crouse-Hinds
• Category : Lighting and controls
• Item Subcategory : Linear
• Voltage : 120-277 V
• Nema Rating : 4X
• Watts : 30
• Hz : 50/60 Hz
• Enclosure Grade : IP66/IP67
• Material : Copper-free aluminum
• NEC hazardous rating : Class II, Division 1 Class III Class I, Zone 2 Class I, Division 2
• Ingress protection (IP) ratings : IP66 IP67
• Lumens : 3000
• Lumens per watt : 130
• Color temperature : 3000K
• Mounting Method : Flush Ceiling
• Dimming : 0-10V
• Power factor : > 0.92
• Certifications and compliances : Class I Division 2, Class II Division 1, Class III
• Minimum Ambient Operating Temperature : -40°C
• Maximum Ambient Operating Temperature : +65°C

Product Data

• UPC : 786689780012
• Dimensions : 25.94 in x 4.42 in x 7.13 in (Length/Depth x Height x Width)
• Weight : 19.1 lb
