MLLA2-UNV1-S903-EM1-P-M2 - Eaton Crouse-Hinds Lighting and controls LED 4000 lm

MLLA2-UNV1-S903-EM1-P-M2

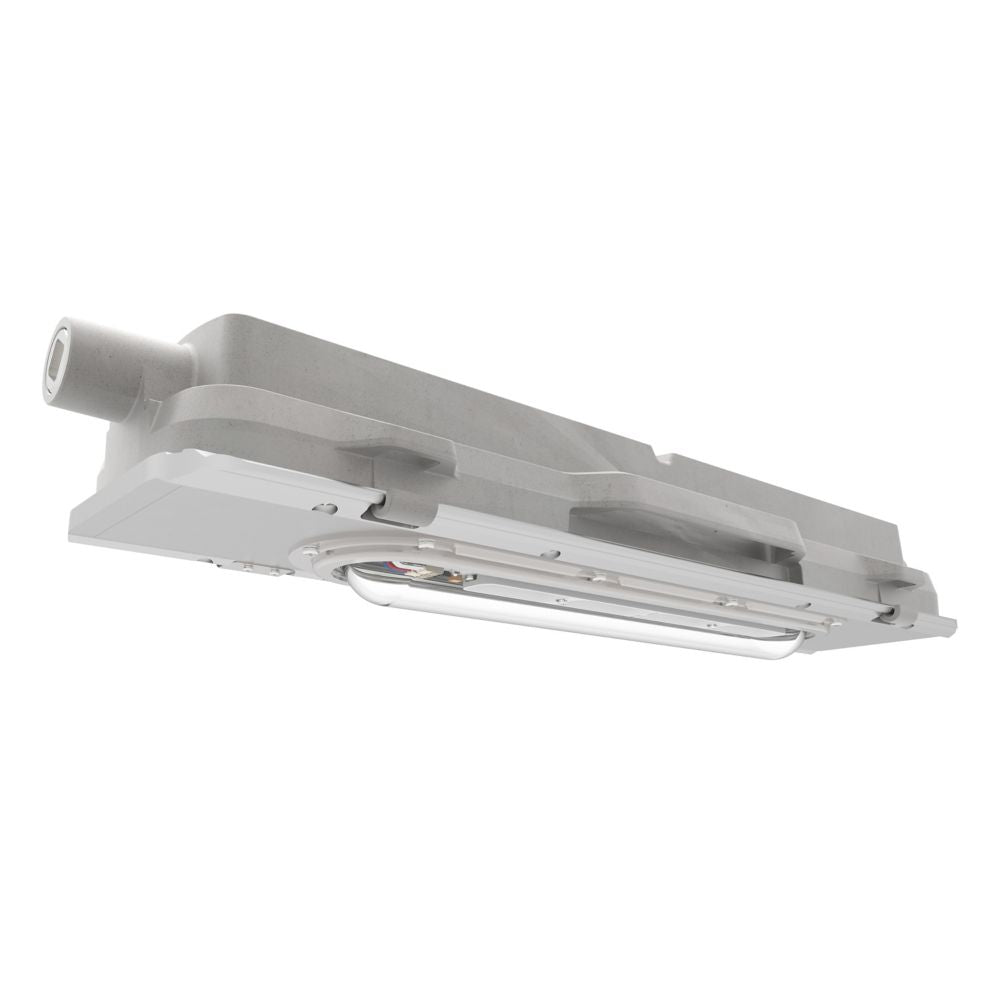

MLLA2-UNV1-S903-EM1-P-M2 is an Eaton Crouse-Hinds series Champ MLLA linear LED light fixture designed for hazardous and classified locations. This 2-foot cool white LED luminaire delivers 4000 lumens with high efficacy and integral emergency battery backup capability. The fixture features a painted gray epoxy finish, polycarbonate lens, and copper-free aluminum construction rated for Class I Division 2, Class I Zone 2, Class II Division 1, and Class III hazardous locations. It supports multiple voltage inputs (120-277 Vac, 127/250 Vdc) and includes a power factor greater than 0.92. The unit is suitable for flush ceiling mounting with wide optical distribution and NEMA 4X rating for marine and wet locations. Key Specifications

• Part Number: MLLA2-UNV1-S903-EM1-P-M2
• Manufacturer: Eaton Crouse-Hinds
• Lumens: 4000
• Lumens per Watt: 132
• Wattage: 30 W
• Color Temperature: Cool white (4000K)
• Voltage Rating: 120-277 Vac, 127/250 Vdc
• Frequency: 50/60 Hz
• Mounting Method: Flush ceiling
• Lens Material: Polycarbonate
• Finish: Painted gray epoxy
• Entry Size: 3/4 inch NPT
• NEMA Rating: 4X
• IP Rating: IP66/IP67
• NEC Hazardous Rating: Class I Division 2, Class I Zone 2, Class II Division 1, Class III
• Power Factor: >0.92
• Special Features: Integral emergency battery backup
• Product Length: 25.94 inches
• Product Width: 7.13 inches
• Product Height: 4.42 inches
• Product Weight: 15.1 lb

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: MLLA2-UNV1-S903-EM1-P-M2
• Manufacturer : Eaton Crouse-Hinds
• Brand : Eaton Crouse-Hinds
• Category : Lighting and controls
• Item Subcategory : Linear
• Voltage : 120-277 V, 127/250 V
• Nema Rating : 4X
• Watts : 30 W
• Hz : 50/60 Hz
• Material : Copper-free aluminum
• NEC hazardous rating : Class I Division 2, Class I Zone 2, Class II Division 1, Class III
• Ingress protection (IP) ratings : IP66/IP67
• Lumens : 4000
• Lumens per watt : 132
• Color temperature : Cool white
• Mounting Method : Flush ceiling
• Power factor : >0.92
• Trade size : 3/4 inch NPT
• Enclosure size : 25.94 x 7.13 x 4.42 inches
• Special features : Integral emergency battery backup
• Color : Painted gray epoxy

Product Data

• UPC : 786689716752
• Dimensions : 25.94 in x 4.42 in x 7.13 in (Length/Depth x Height x Width)
• Weight : 19.1 lb
