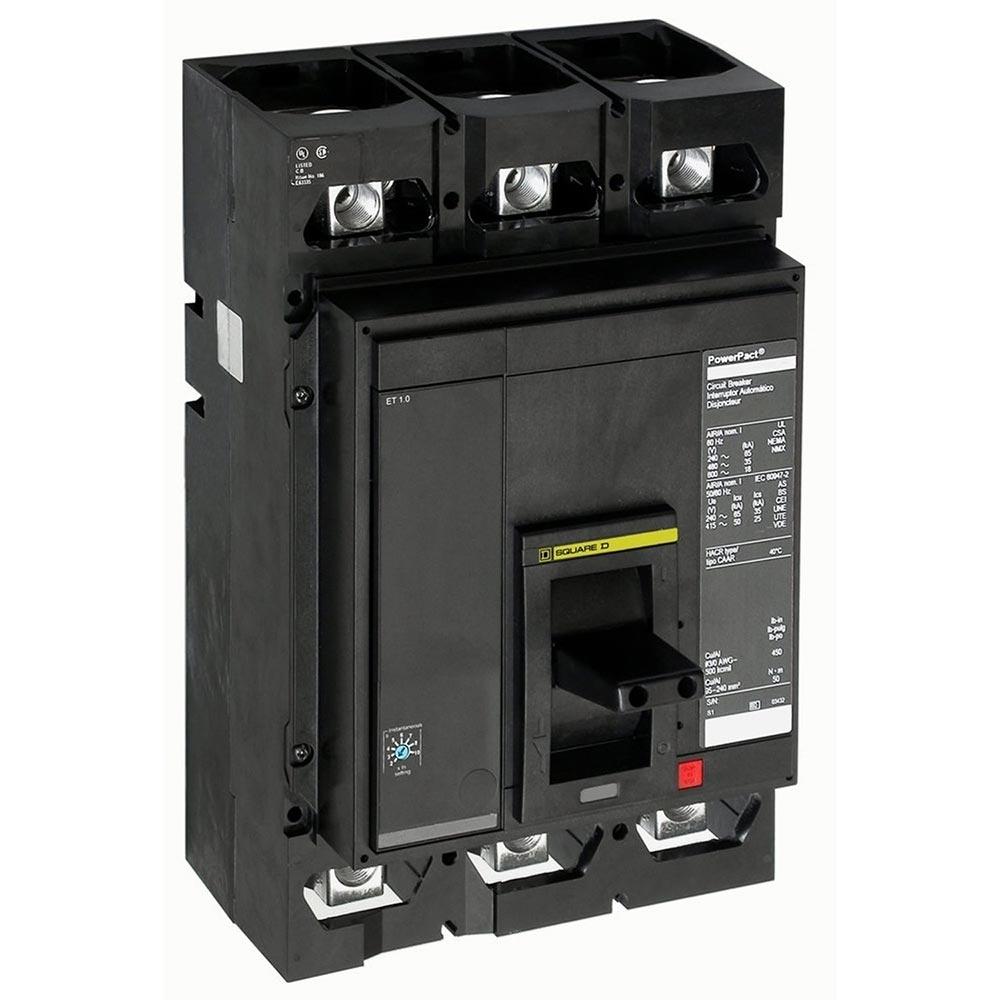

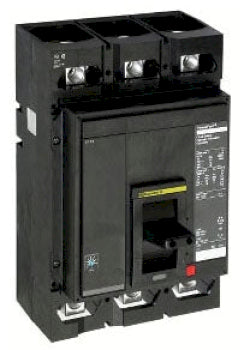

MJL36700 - Square D 700 Amp 600 Volt 3 Pole Powerpact Molded Case Circuit Breaker M Frame

MJL36700

MJL36700 is a Square D Powerpact molded case circuit breaker designed for 700 amp, 600 volt applications with a 3 pole configuration.This breaker features an M frame with a basic electronic trip unit (LI - Long-Time and Instantaneous trip functions), unit mount style, and high interrupt ratings of 100 kA at 240 VAC, 65 kA at 480 VAC, and 25 kA at 600 VAC. It is UL, CSA, and CE certified for industrial use and provides true RMS sensing for enhanced coordination and protection.

Key Specifications
• Amperage: 700 A
• Voltage Rating: 600 VAC, 50/60 Hz
• Poles: 3
• Frame Type: M
• Mounting Type: Unit Mount
• Interrupt Rating: 100 kA @ 240 VAC, 65 kA @ 480 VAC, 25 kA @ 600 VAC
• Trip Unit: Basic Electronic (LI - Long-Time and Instantaneous)
• Certifications: UL, CSA, CE
• Dimensions: Approx. 8.1" L x 8.3" W x 12.8" H
• Frequency: 50/60 Hz

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: MJL36700
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : MJL
• Voltage : 600
• Amperage : 700
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Lug In/Lug Out
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Box Lug
• Frame Size : 800A/M
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 3/0 AWG Max. Wire Size 500 MCM
• Breaker Type : Standard
• Protection : Solid State
• Phase Connection : ABC

Product Data

• UPC : 785901655398
• GTIN : 00785901879961
• Country of Origin : Mexico
• Dimensions : 12.86 in (326.64 mm) x 8.27 in (210.06 mm) x 8.05 in (204.47 mm) (Height x Width x Depth)
• Weight : 29
• Panel Type : Equipment Gear
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 3 x AWG 3/0...3 x 500 kcmil aluminium/copper
