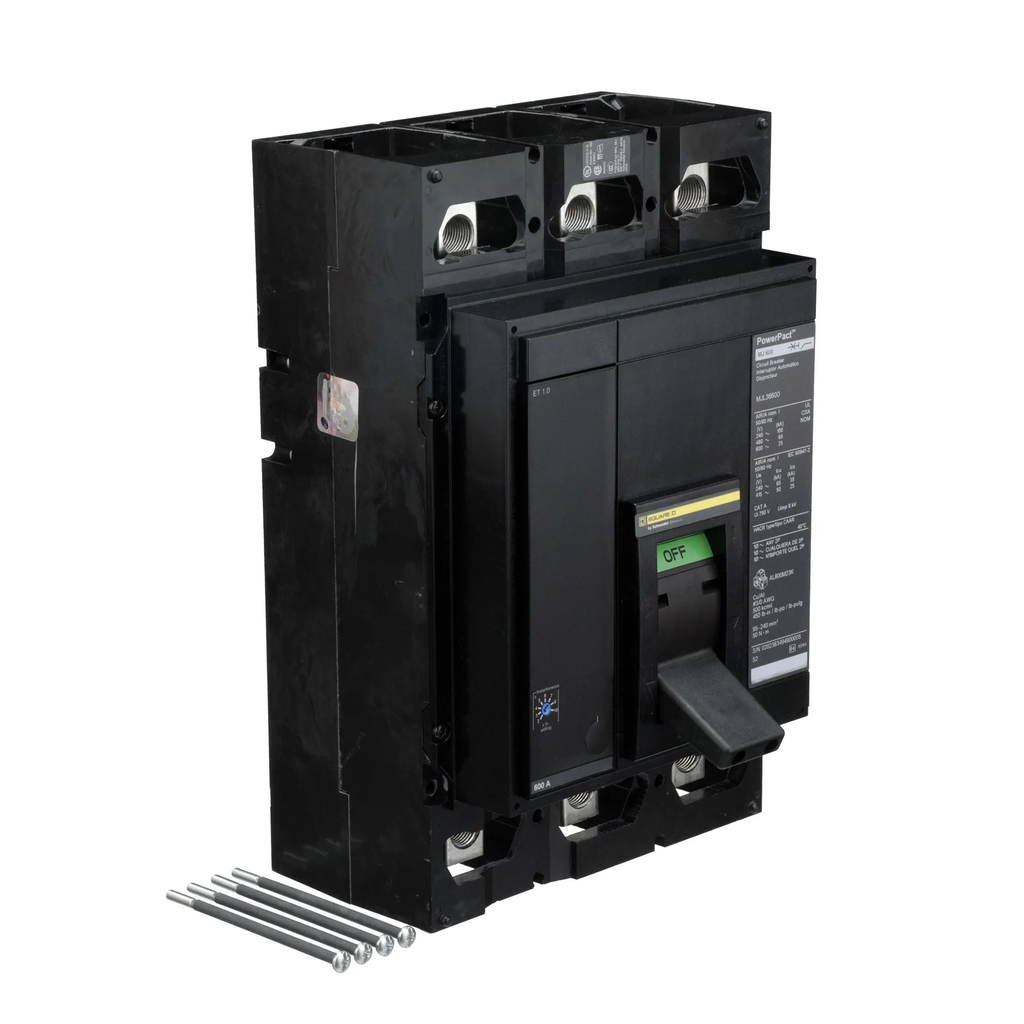

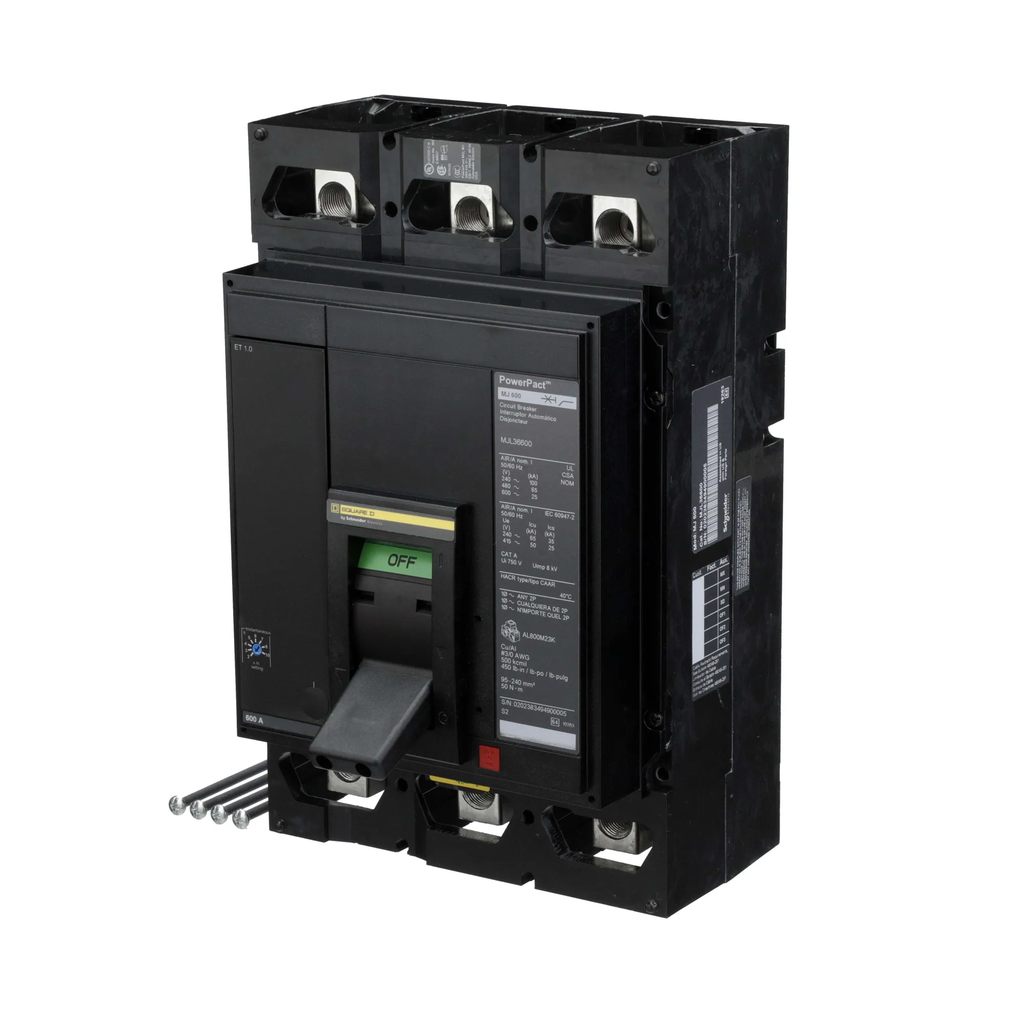

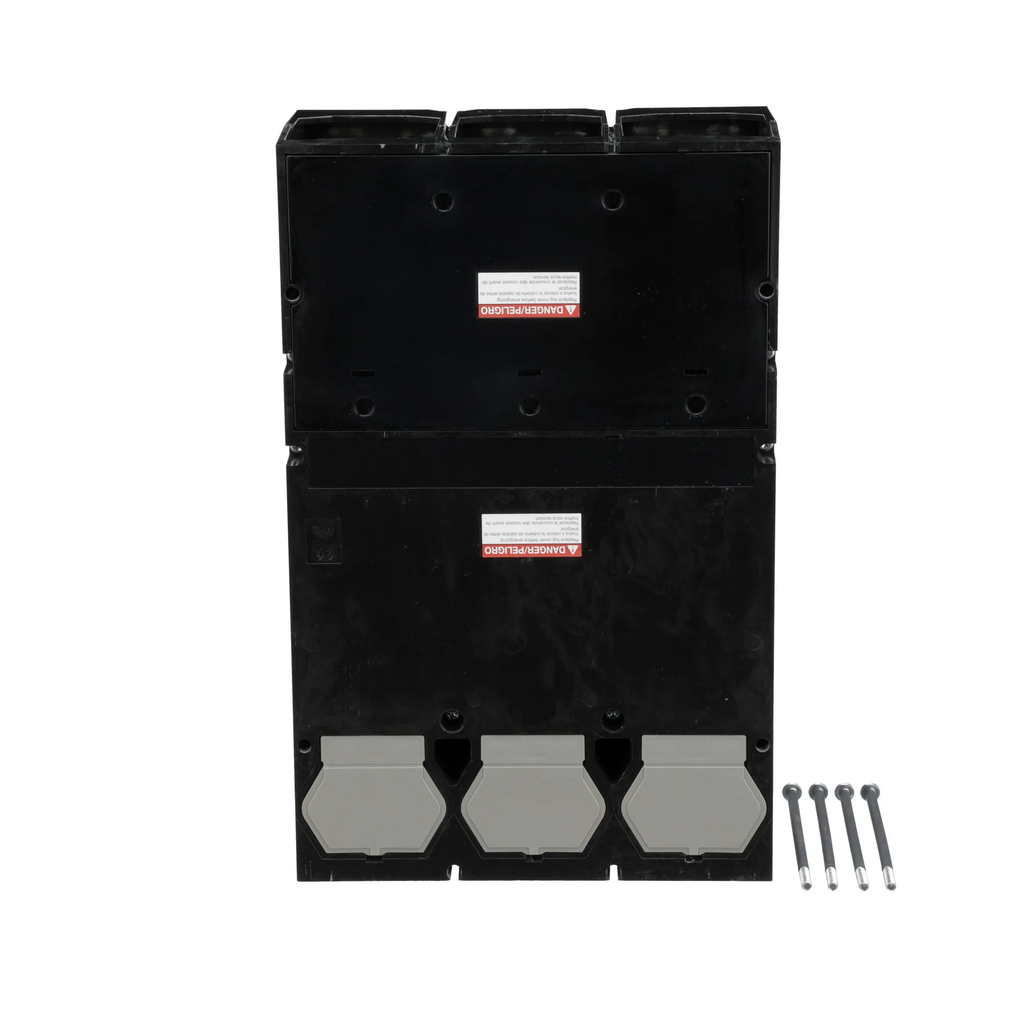

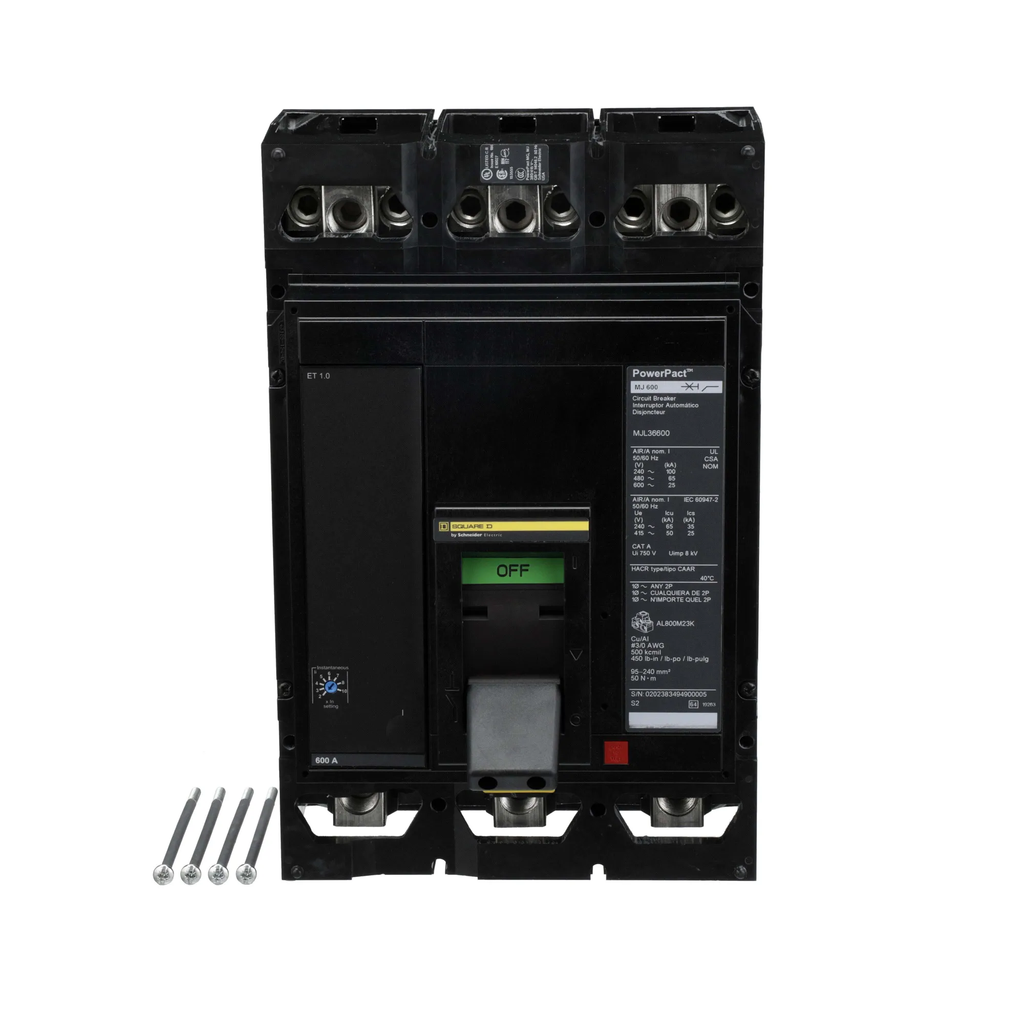

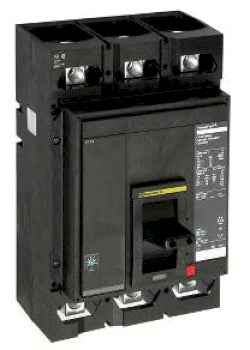

MJL36600 - Square D 600A 600VAC 3-Pole Powerpact M Molded Case Circuit Breaker

MJL36600

MJL36600 is a Square D 3-pole molded case circuit breaker rated for 600 amps and 600 volts AC, designed for reliable power distribution protection.This Powerpact M series breaker features a solid state thermal magnetic trip unit with long time and instantaneous trip functions. It supports unit mounting with box lug terminal connections and is suitable for main lug panelboard terminations. The breaker has a 25kA interrupting rating at 600VAC and complies with CSA, IEC, UL, and RoHS standards.

• Amperage: 600A
• Voltage: 600VAC
• Poles: 3
• Mounting Type: Unit Mount
• Interrupt Rating: 25kA at 600VAC
• Frame Type: MJL (Powerpact M series)
• Trip Unit: Thermal Magnetic, solid state
• Terminal Connection: Box Lug
• Max Wire Size: 500 MCM
• Min Wire Size: 3/0 AWG
• Certifications: CSA, IEC, UL, RoHS
• Actuator Type: Toggle

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: MJL36600
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : MJL
• Voltage : 600
• Amperage : 600
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Lug In/Lug Out
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Box Lug
• Frame Size : 800A/M
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 3/0 AWG Max. Wire Size 500 MCM
• Breaker Type : Standard
• Protection : Solid State
• Phase Connection : CBA

Product Data

• UPC : 785901629306
• GTIN : 00785901629306
• Country of Origin : Mexico
• Dimensions : 12.86 in (326.64 mm) x 8.27 in (210.06 mm) x 8.05 in (204.47 mm) (Height x Width x Depth)
• Weight : 28.799
• Panel Type : Equipment Gear
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 3 x AWG 3/0...3 x 500 kcmil aluminium/copper
