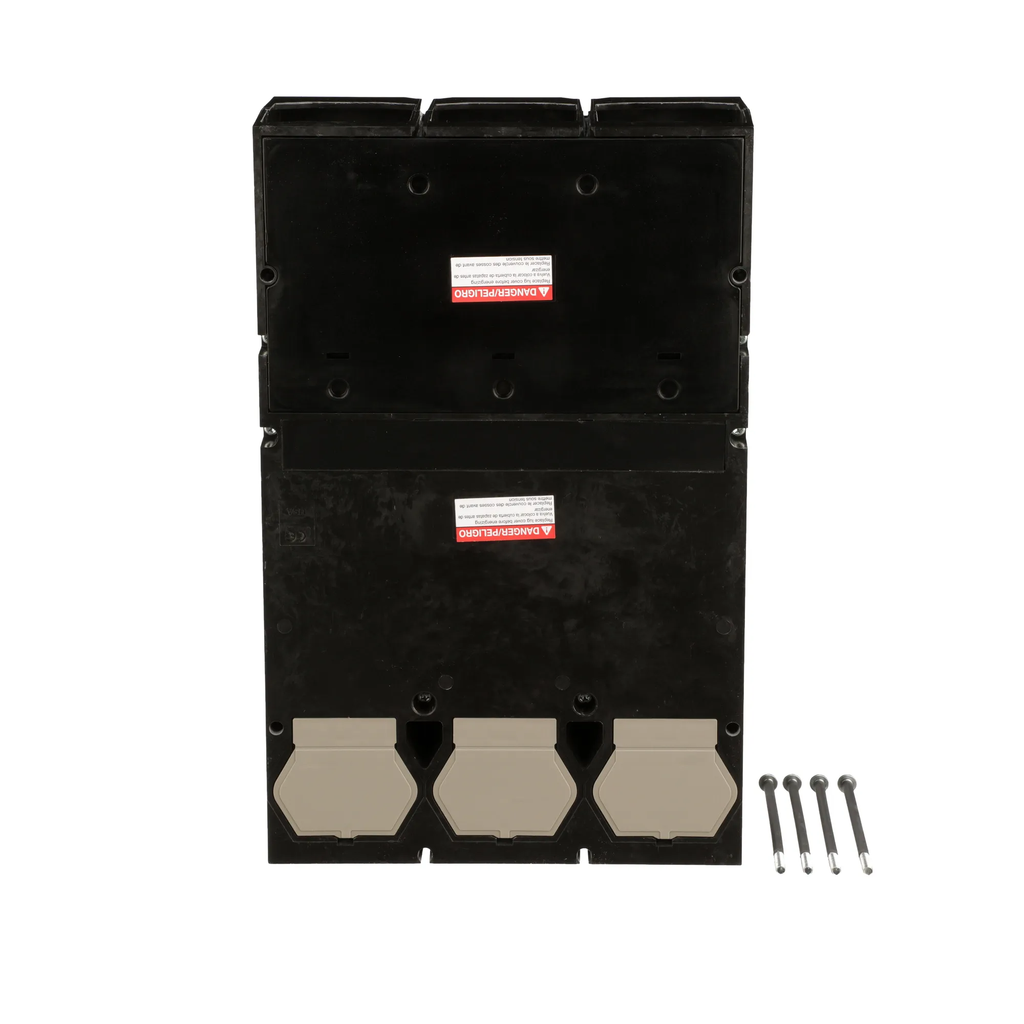

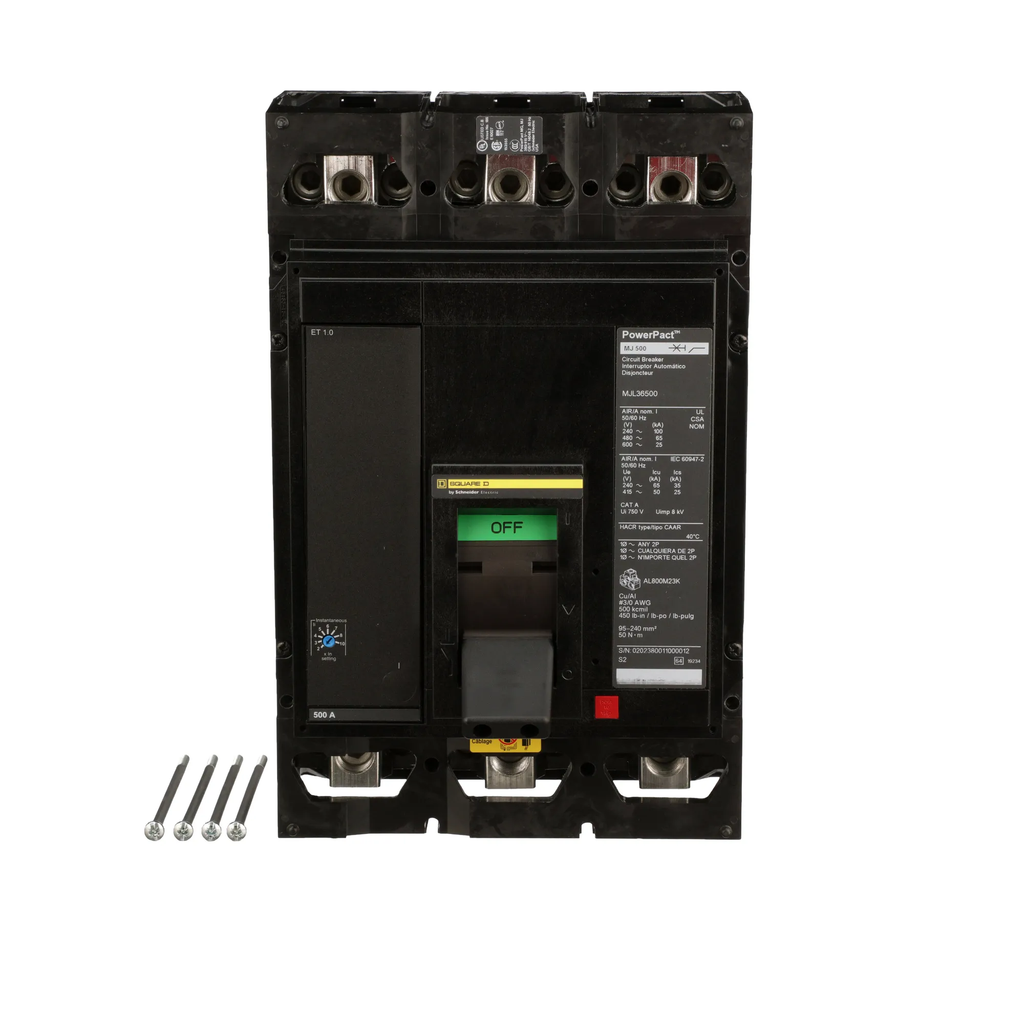

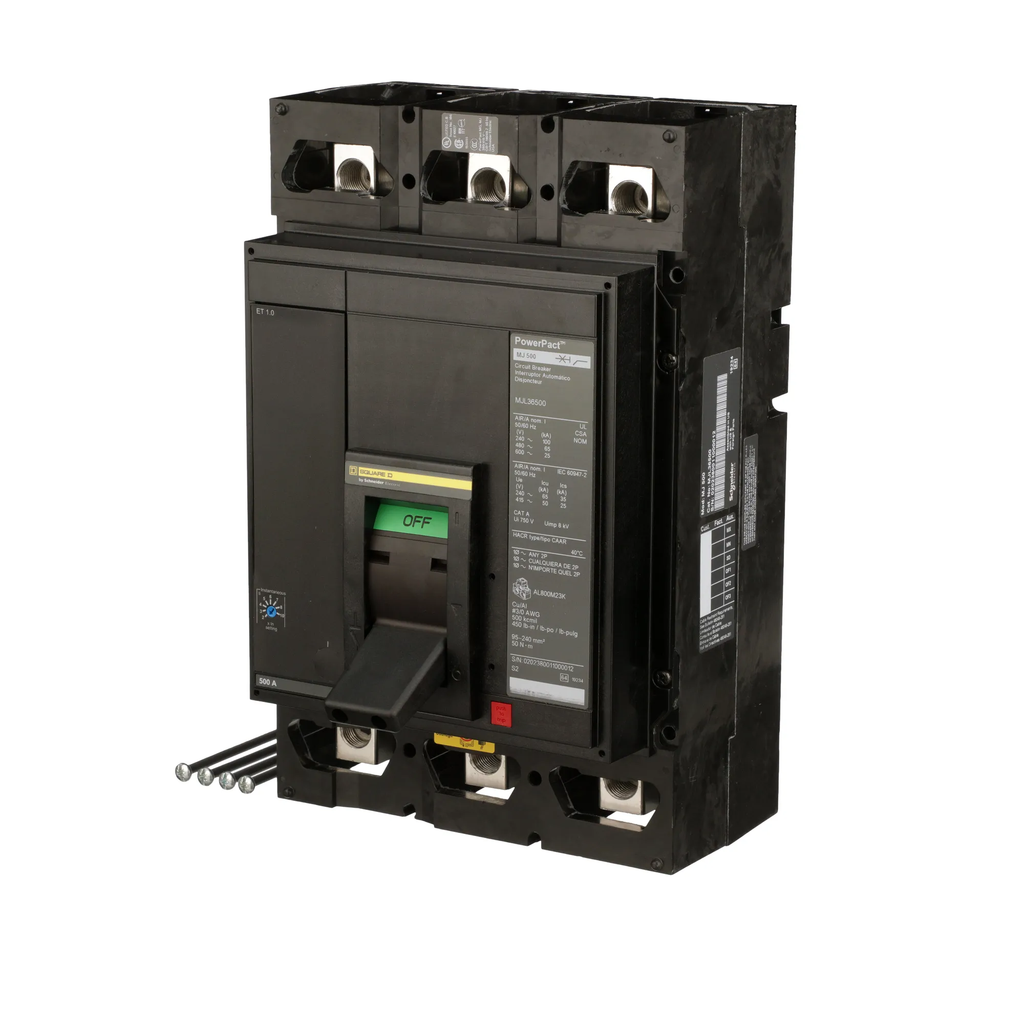

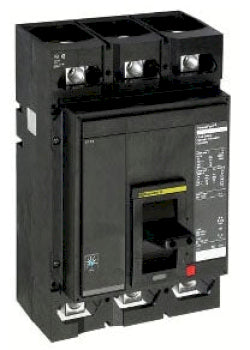

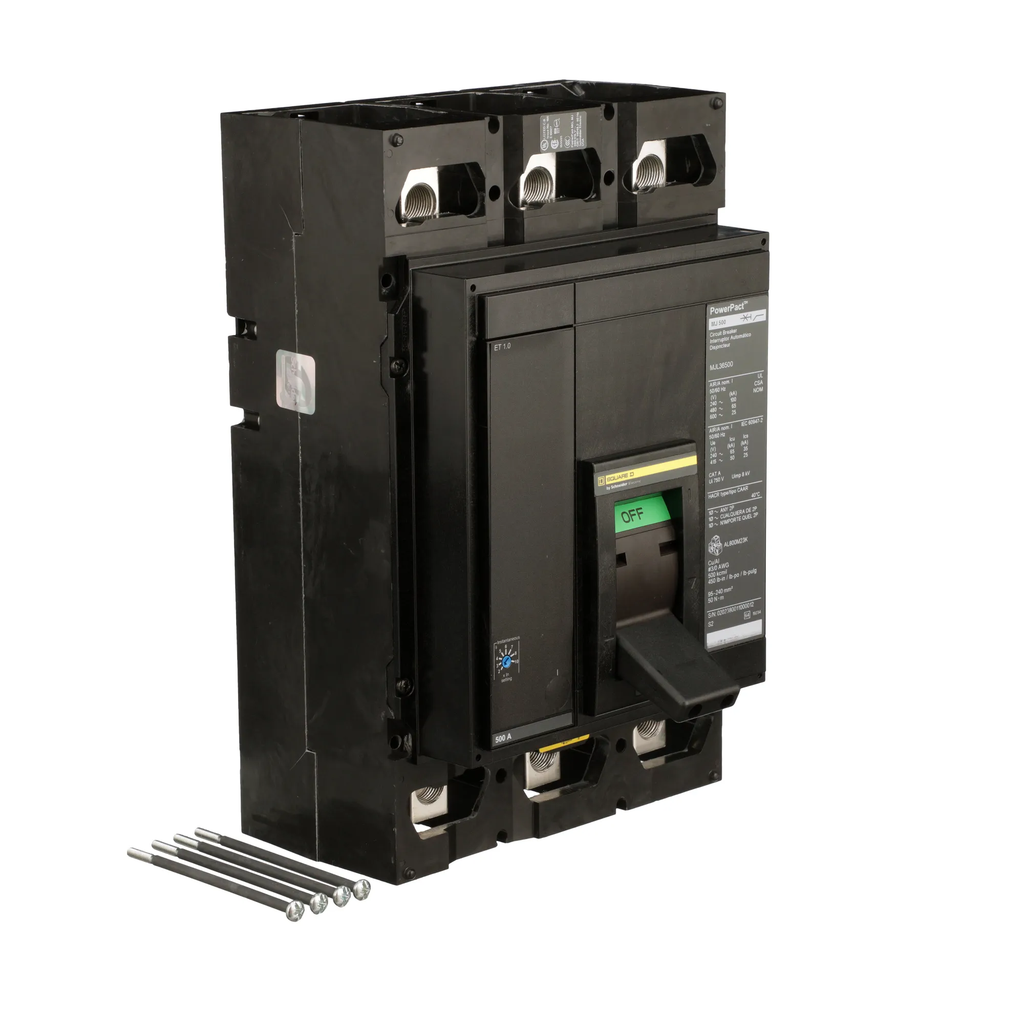

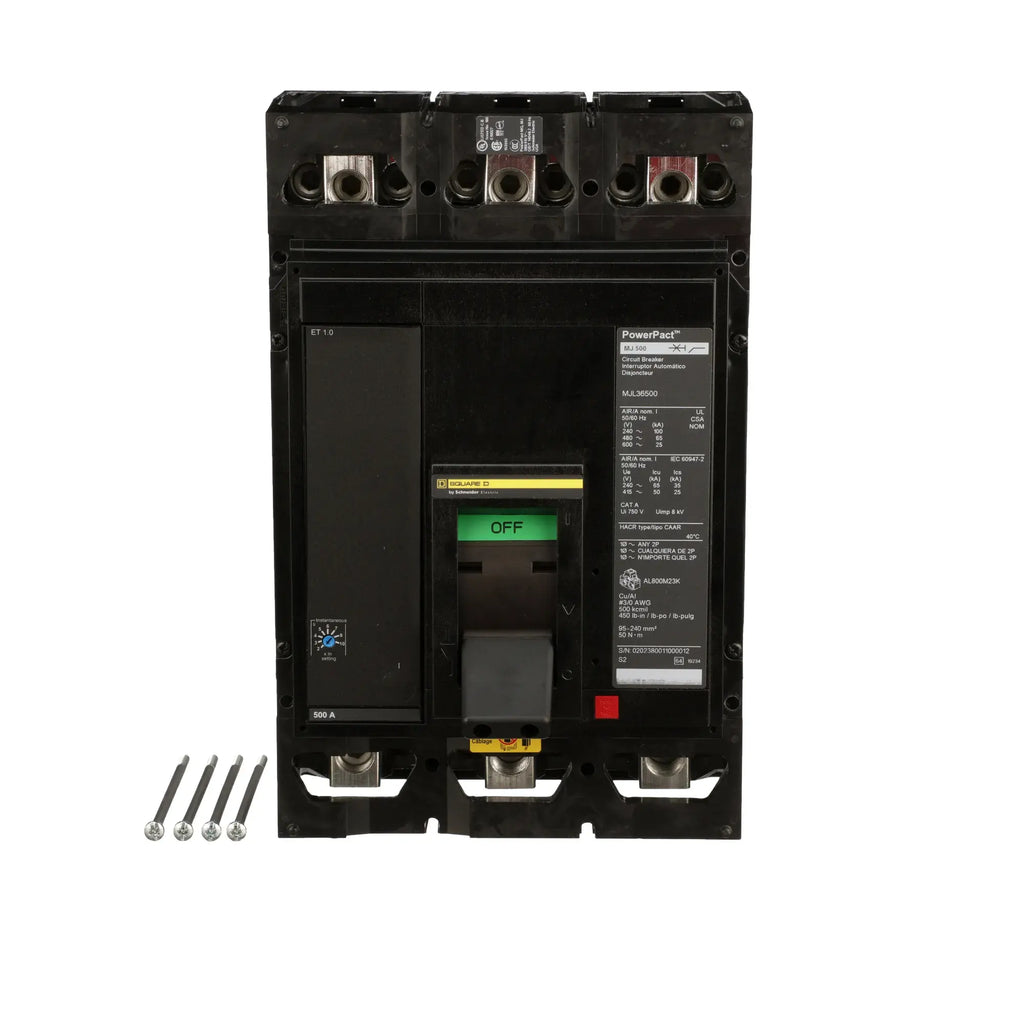

MJL36500 - Square D 500A 600V 3 Pole Molded Case Circuit Breaker MJL Frame Bolt-On

MJL36500

MJL36500 is a Square D 3 pole, 500 amp, 600 volt molded case circuit breaker designed for bolt-on mounting.This thermal magnetic circuit breaker features a basic electronic trip unit with a 25kA interrupt rating at 600VAC. It is part of the MJL frame series and is UL, CSA, and CE certified. The breaker is designed for panel mount applications with box lug terminal connections.

• Amperage: 500A
• Voltage: 600V AC
• Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 25kA at 600VAC
• Frame/Series: MJL
• Trip Unit: Thermal Magnetic, Basic Electronic
• Terminal Connection: Box Lugs
• Certifications: UL, CSA, CE
• Dimensions (HxWxD): 12.86" x 8.27" x 8.05"
• Weight: 29 lbs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: MJL36500
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : MJL
• Voltage : 600
• Amperage : 500
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Lug In/Lug Out
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Box Lug
• Frame Size : 800A/M
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 3/0 AWG Max. Wire Size 500 MCM
• Breaker Type : Standard
• Protection : Solid State
• Phase Connection : CBA

Product Data

• UPC : 785901879947
• GTIN : 00785901570196
• Country of Origin : Mexico
• Dimensions : 12.86 in (326.64 mm) x 8.27 in (210.06 mm) x 8.05 in (204.47 mm) (Height x Width x Depth)
• Weight : 28.949
• Panel Type : Equipment Gear
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 3 x AWG 3/0...3 x 500 kcmil aluminium/copper
