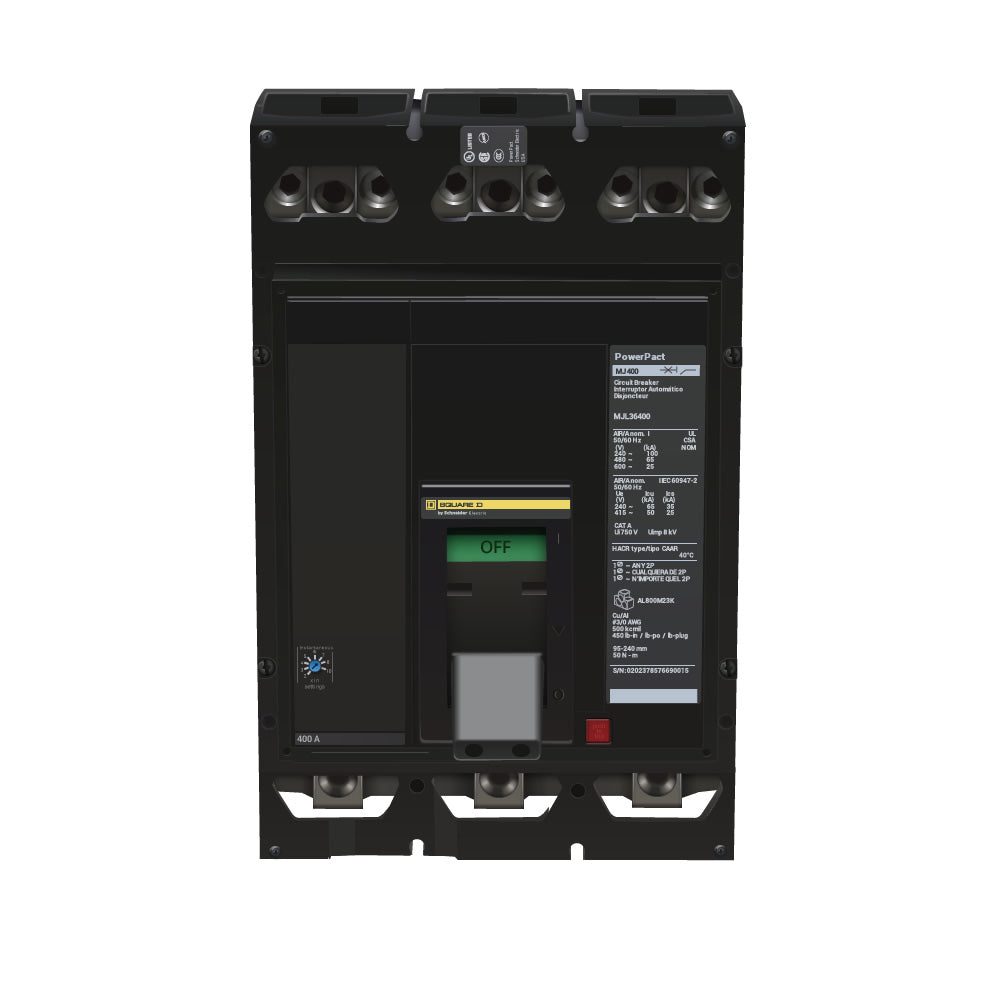

MJL36400 - Square D 400A 600V 3 Pole PowerPacT M Circuit Breaker with 25kA Interrupt Rating

MJL36400

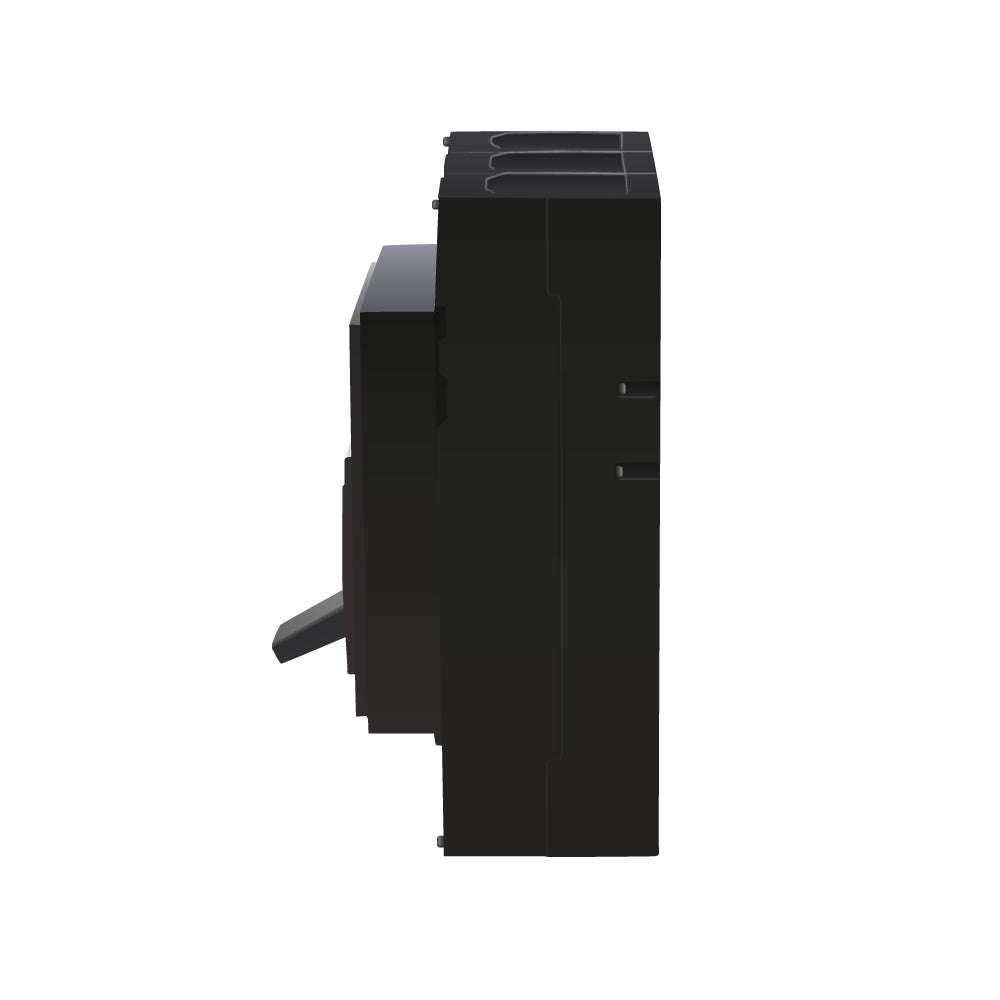

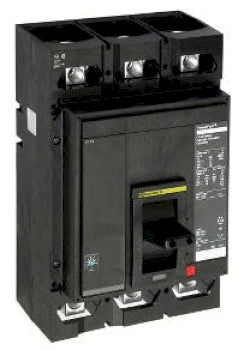

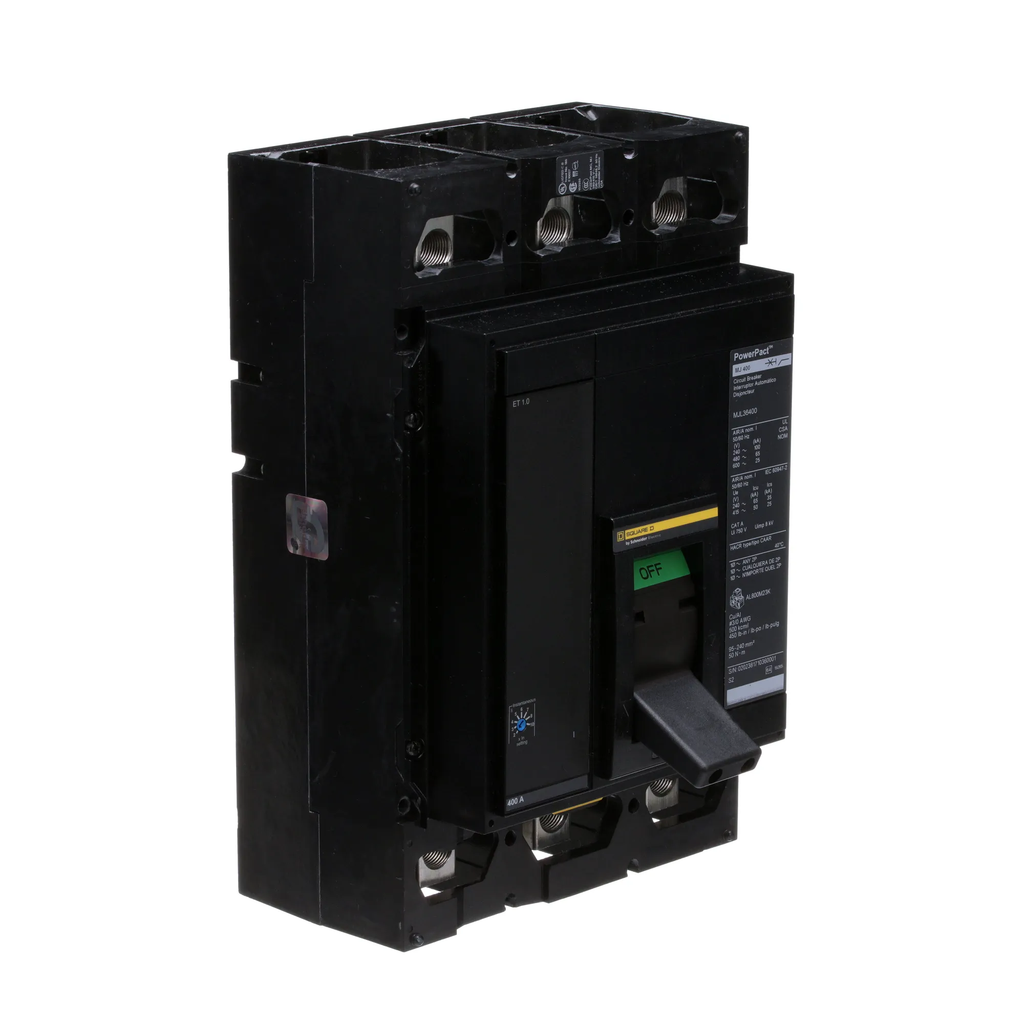

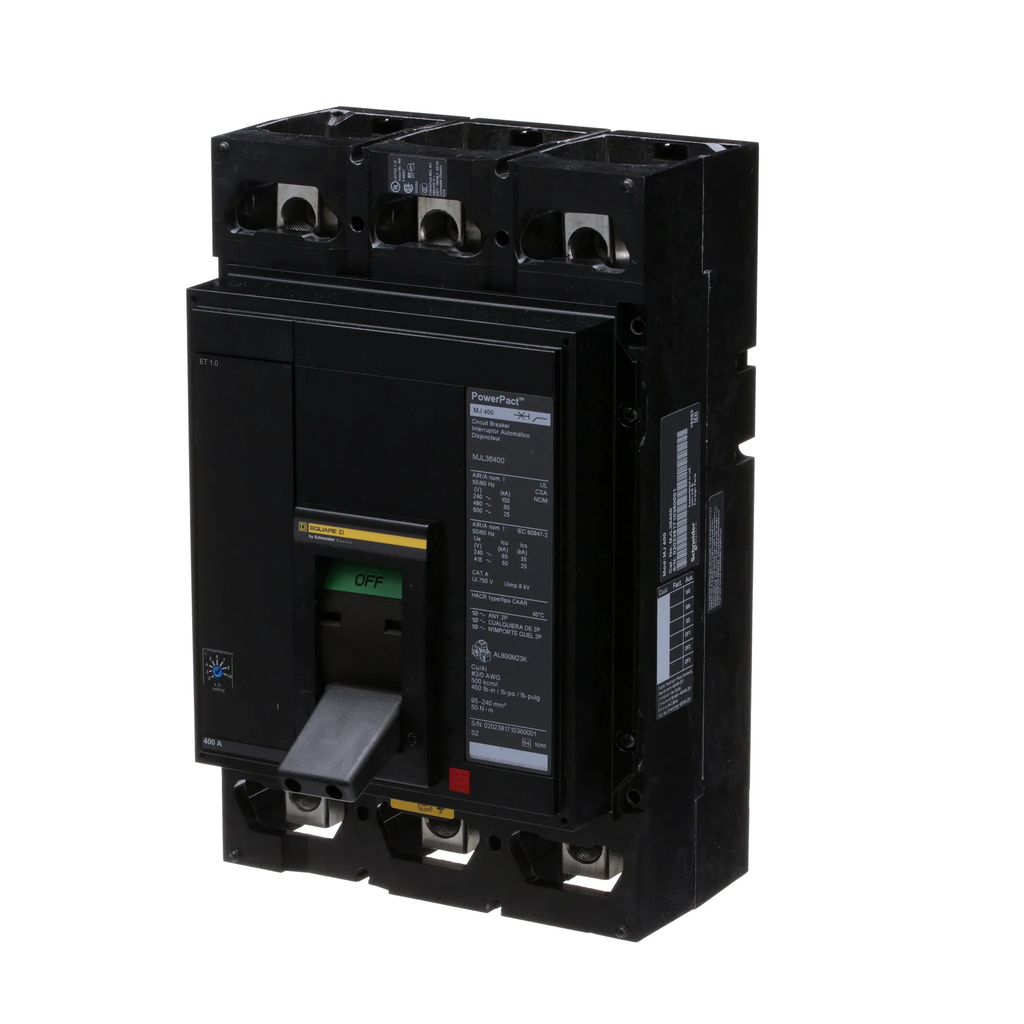

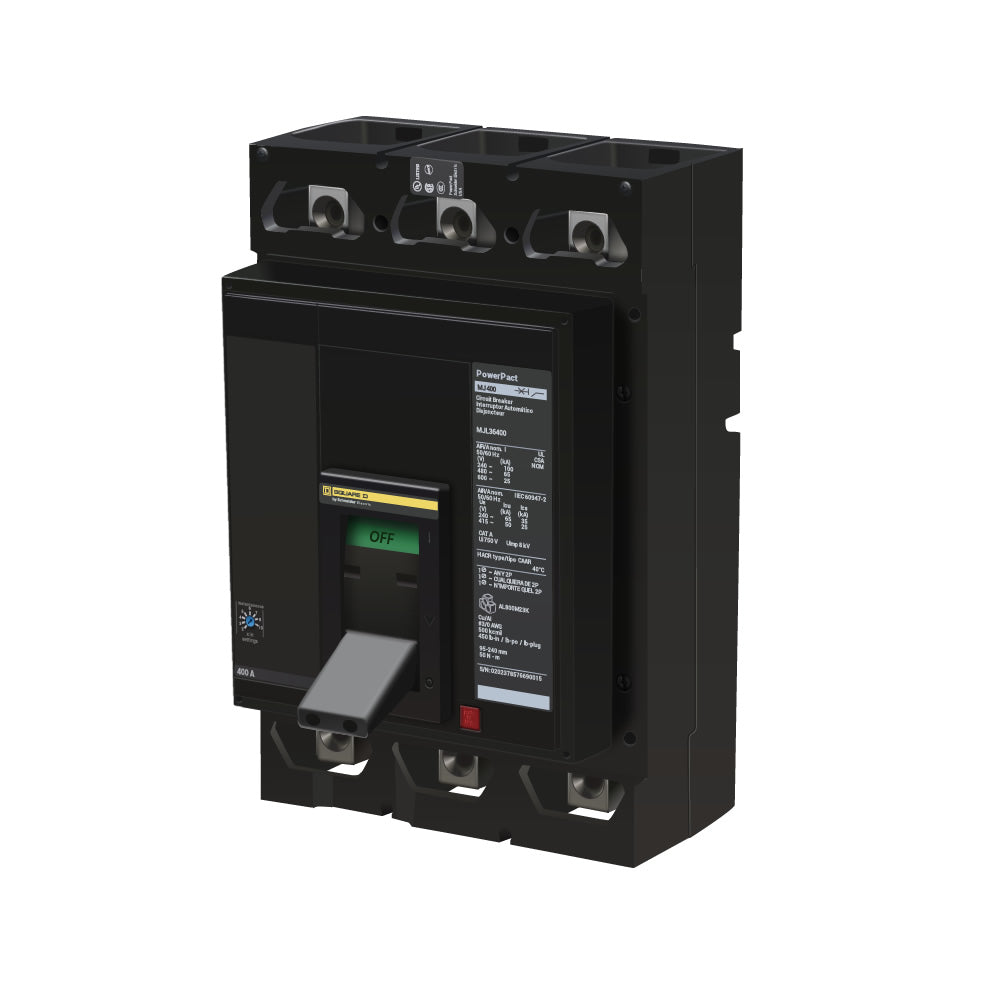

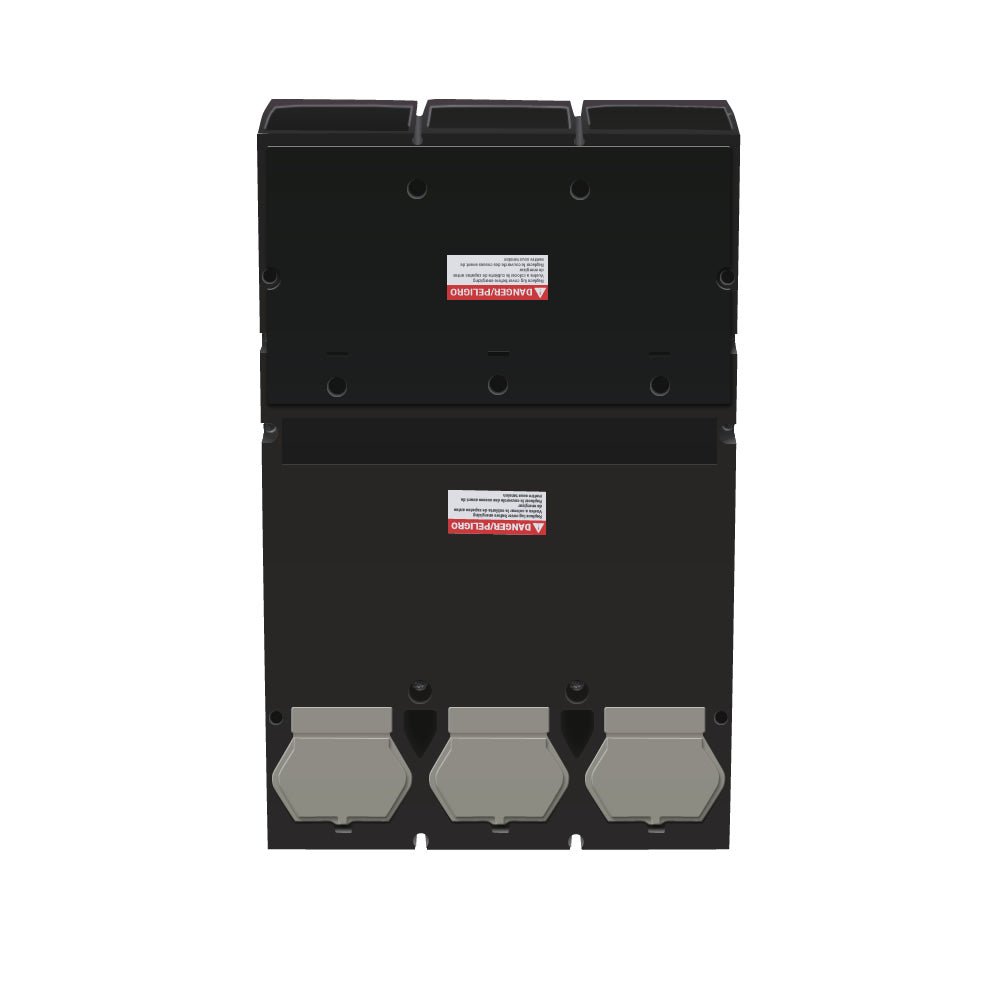

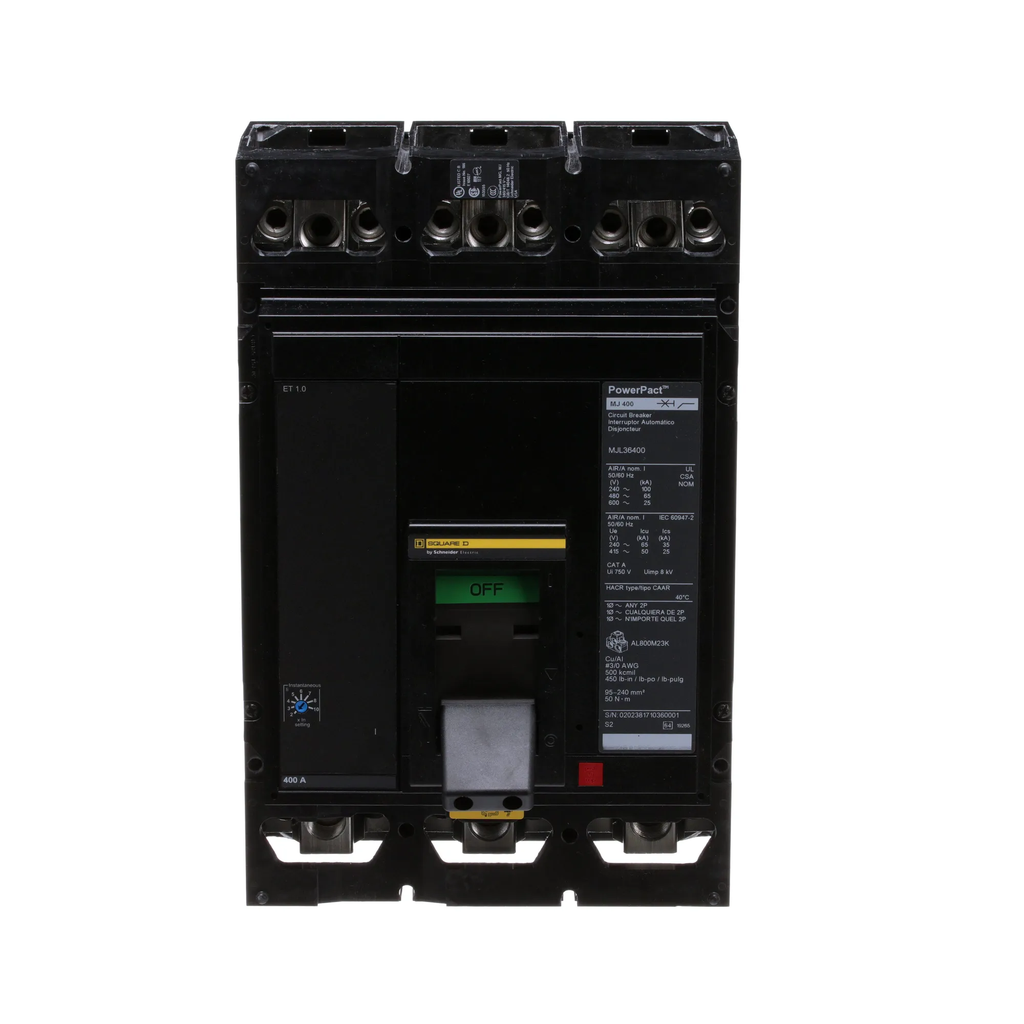

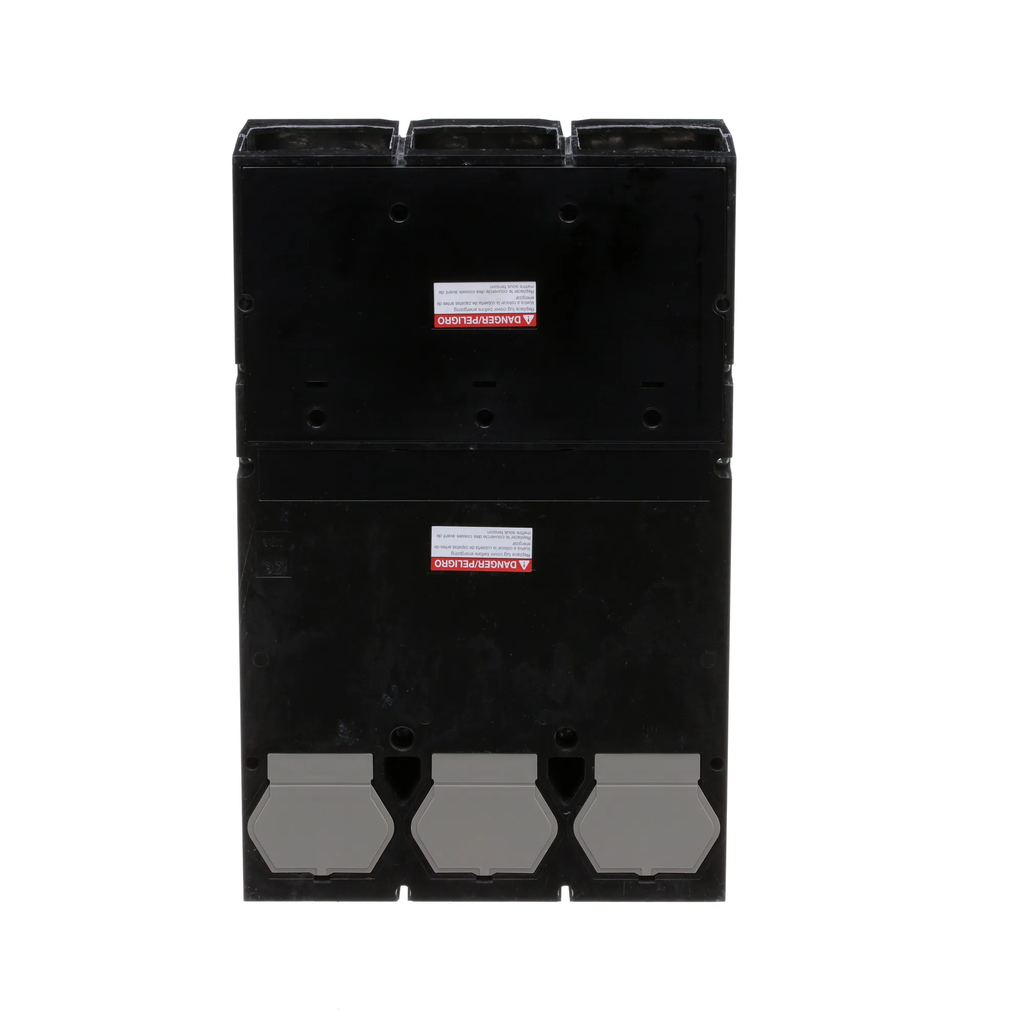

MJL36400 is a Square D PowerPacT M series 3 pole circuit breaker rated for 400 amps and 600 volts AC with a 25kA interrupt rating.This molded case circuit breaker features thermal magnetic trip units, panel mounting, and an 80% continuous current rating. It is UL, CSA, NMX, and IEC certified, designed for main lug panelboard terminations, and includes common mounting holes and handle locations for easy installation.

• Amperage: 400A
• Voltage: 600VAC
• Poles: 3
• Interrupt Rating: 25kA at 600VAC
• Series/Frame: PowerPacT M
• Mounting Type: Panel mount
• Trip Unit: Thermal magnetic
• Continuous Current Rating: 80%
• Certifications: UL 480 Listed, CSA, NMX, IEC
• Dimensions: 8.27" W x 8.05" D x 12.86" H

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: MJL36400
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : MJL
• Voltage : 600
• Amperage : 400
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Lug In/Lug Out
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Box Lug
• Frame Size : 800A/M
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 3/0 AWG Max. Wire Size 500 MCM
• Breaker Type : Standard
• Protection : Solid State
• Phase Connection : ABC

Product Data

• UPC : 785901701828
• GTIN : 00785901701828
• Country of Origin : Mexico
• Dimensions : 12.86 in (326.64 mm) x 8.27 in (210.06 mm) x 8.05 in (204.47 mm) (Height x Width x Depth)
• Weight : 28.85
• Panel Type : Equipment Gear
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 3 x AWG 3/0...3 x 500 kcmil aluminium/copper
