MJL36350 - Square D PowerPacT M-Frame 3 Pole 350A 600VAC Molded Case Circuit Breaker, 65kAIC @ 480V, Feed-Thru Mount, Electronic Trip, UL/CSA/CE/NEMA Certified

Save $4,215.53
SKU: MJL36350-New
Condition: New
Price:
$5,240.47 $9,456.00
Stock:
2 in stock
Limited availability — we'll confirm stock immediately after your order.

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

MJL36350 - Square D/ Schneider Electric Feed-Thru 350 Amp 3 Pole Circuit Breaker - Essential Electric Supply

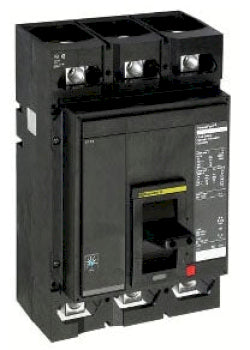

MJL36350 - Square D PowerPacT M-Frame 3 Pole 350A 600VAC Molded Case Circuit Breaker, 65kAIC @ 480V, Feed-Thru Mount, Electronic Trip, UL/CSA/CE/NEMA Certified - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only

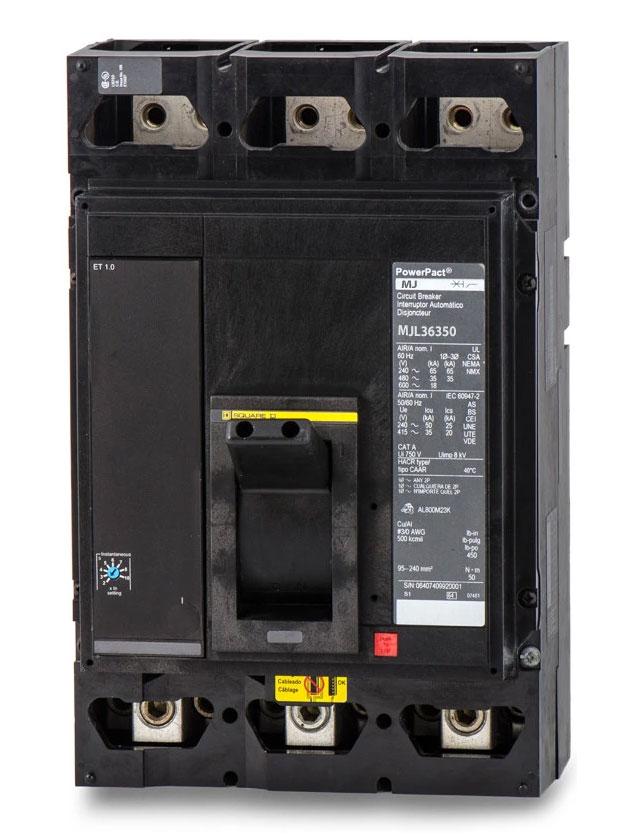

MJL36350 - Square D/ Schneider Electric Feed-Thru 350 Amp 3 Pole Circuit Breaker - Essential Electric Supply
MJL36350 - Square D PowerPacT M-Frame 3 Pole 350A 600VAC Molded Case Circuit Breaker, 65kAIC @ 480V, Feed-Thru Mount, Electronic Trip, UL/CSA/CE/NEMA Certified - Essential Electric Supply

Description

MJL36350


MJL36350 is a Square D PowerPacT M-Frame molded case circuit breaker designed for reliable protection in commercial and industrial power distribution systems.

This 3-pole, 3-phase circuit breaker features a 350A current rating, 600VAC voltage rating, and a solid-state electronic trip unit with long-time and instantaneous trip functions. It offers feed-thru mounting, line and load side lug terminals, and is mercury-free and PVC-free for environmentally responsible operation. The MJL36350 is engineered for high interrupting capacity and robust performance in demanding applications.

    Key Specifications
  • Part Number: MJL36350
  • Manufacturer: Square D
  • Series/Frame: PowerPacT M (MJL)
  • Amperage: 350A
  • Voltage: 600VAC
  • Poles: 3
  • Mounting Type: Feed-Thru (Unit Mount)
  • Interrupt Rating: 65kAIC @ 480VAC, 25kAIC @ 600VAC, 100kAIC @ 240VAC
  • Trip Unit: Electronic, Basic ET 1.0, Long-Time & Instantaneous
  • Certifications: UL, CSA, CE, NEMA, NOM, IEC, RoHS, HACR
  • Terminal Connection: Line and Load Side Lug
  • Wire Range: 3x AWG 3/0 to 3x 500 kcmil (Aluminum/Copper)
  • Temperature Rating: -25 to 70 °C

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: MJL36350
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : Powerpact
  • Type : MJL
  • Voltage : 600
  • Amperage : 350
  • Phase : 3
  • Poles : 3
  • AIC rating : 65kA@480V
  • Connection : Lug In/Lug Out
  • Functions : Long Time and Instantaneous Trip
  • Terminal Connection : Box Lug
  • Frame Size : 800A/M
  • Temp Rating : -13–158 °F (-25–70 °C)
  • MCM Size : Min. Wire Size 3/0 AWG Max. Wire Size 500 MCM
  • Breaker Type : Standard
  • Protection : Solid State
  • Phase Connection : CBA

Product Data

  • UPC : 785901879947
  • GTIN : 00785901879947
  • Country of Origin : United States
  • Dimensions : 12.86 in (326.64 mm) x 8.27 in (210.06 mm) x 8.05 in (204.47 mm) (Height x Width x Depth)
  • Weight : 29
  • Panel Type : Equipment Gear
  • Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Certification : UL, CSA, NOM
  • Wire Size : 3 x AWG 3/0...3 x 500 kcmil aluminium/copper
