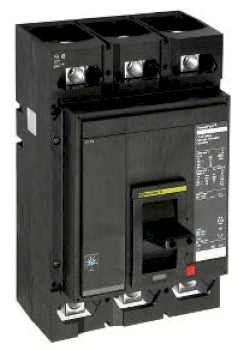

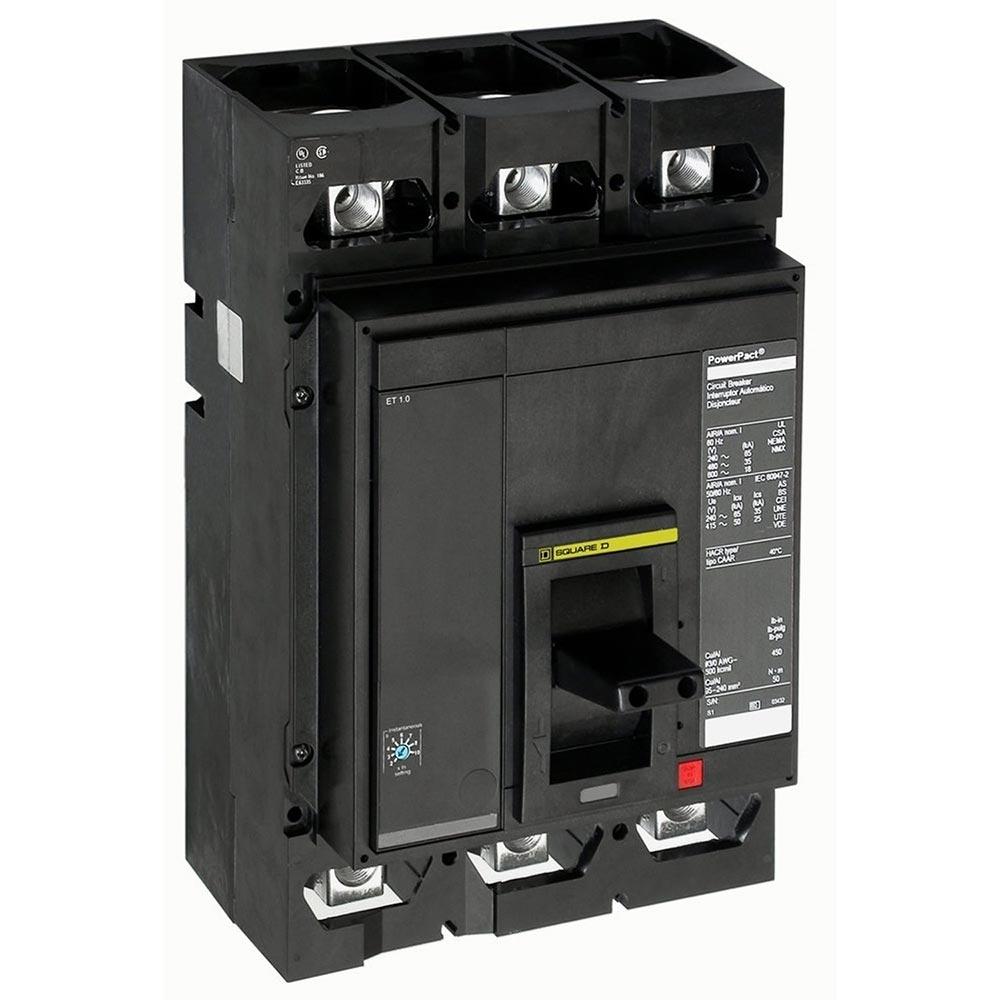

MJL36300 - Square D 300A 600VAC 3 Pole PowerPact M Molded Case Circuit Breaker

Save $4,355.82
SKU: MJL36300-New
Condition: New
Price:
$5,100.18 $9,456.00
Stock:
6 In stock, ready to be shipped

Same-Day Shipping

Most items ship same-day if ordered by 1:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

MJL36300 - Schneider Electric/ Square D Feed-Thru 300 Amp 3 Pole Circuit Breaker - Essential Electric Supply
MJL36300 - Square D 300A 600VAC 3 Pole PowerPact M Molded Case Circuit Breaker - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
MJL36300 - Schneider Electric/ Square D Feed-Thru 300 Amp 3 Pole Circuit Breaker - Essential Electric Supply
MJL36300 - Square D 300A 600VAC 3 Pole PowerPact M Molded Case Circuit Breaker - Essential Electric Supply

Description

MJL36300


MJL36300 is a Square D 3 Pole molded case circuit breaker rated for 300 Amps and 600VAC, designed for reliable power distribution protection.This PowerPact M frame breaker features a solid state electronic trip unit with long time and instantaneous trip functions, providing robust overload and short circuit protection. It supports feed-thru connections with line and load side lug terminals and is suitable for unit mounting. The breaker has a 65kA interrupting rating at 480VAC and complies with UL, CSA, CE, NEMA, NOM, and IEC certifications.
    Key Specifications
    • Amperage: 300A
    • Voltage Rating: 600VAC
    • Poles: 3
    • Frame Type: PowerPact M (MJL)
    • Interrupting Rating: 65kAIC at 480VAC
    • Mounting Type: Unit Mounting
    • Trip Unit: Solid State Electronic with Long Time and Instantaneous
    • Connection Type: Feed-Thru with Line and Load Side Lugs
    • Wire Size Range: 3/0 AWG to 500 kcmil Aluminum/Copper
    • Approvals: UL, CSA, CE, NEMA, NOM, IEC
    • Operating Temperature: -25 to 70 °C
    • Dimensions (LxWxH): 8.05 x 8.27 x 12.86 inches
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: MJL36300
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : Powerpact
  • Type : MJL
  • Voltage : 600
  • Amperage : 300
  • Phase : 3
  • Poles : 3
  • AIC rating : 65kA@480V
  • Connection : Lug In/Lug Out
  • Functions : Long Time and Instantaneous Trip
  • Terminal Connection : Box Lug
  • Frame Size : 800A/M
  • Temp Rating : -13–158 °F (-25–70 °C)
  • MCM Size : Min. Wire Size 3/0 AWG Max. Wire Size 500 MCM
  • Breaker Type : Standard
  • Protection : Solid State
  • Phase Connection : CBA

Product Data

  • UPC : 785901879947
  • GTIN : 00785901507574
  • Country of Origin : Mexico
  • Dimensions : 12.86 in (326.64 mm) x 8.27 in (210.06 mm) x 8.05 in (204.47 mm) (Height x Width x Depth)
  • Weight : 29
  • Panel Type : Equipment Gear
  • Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Certification : UL, CSA, NOM
  • Wire Size : 3 x AWG 3/0...3 x 500 kcmil aluminium/copper
