MJA36800E10 - Square D 600V 800A 3 pole circuit breaker

MJA36800E10

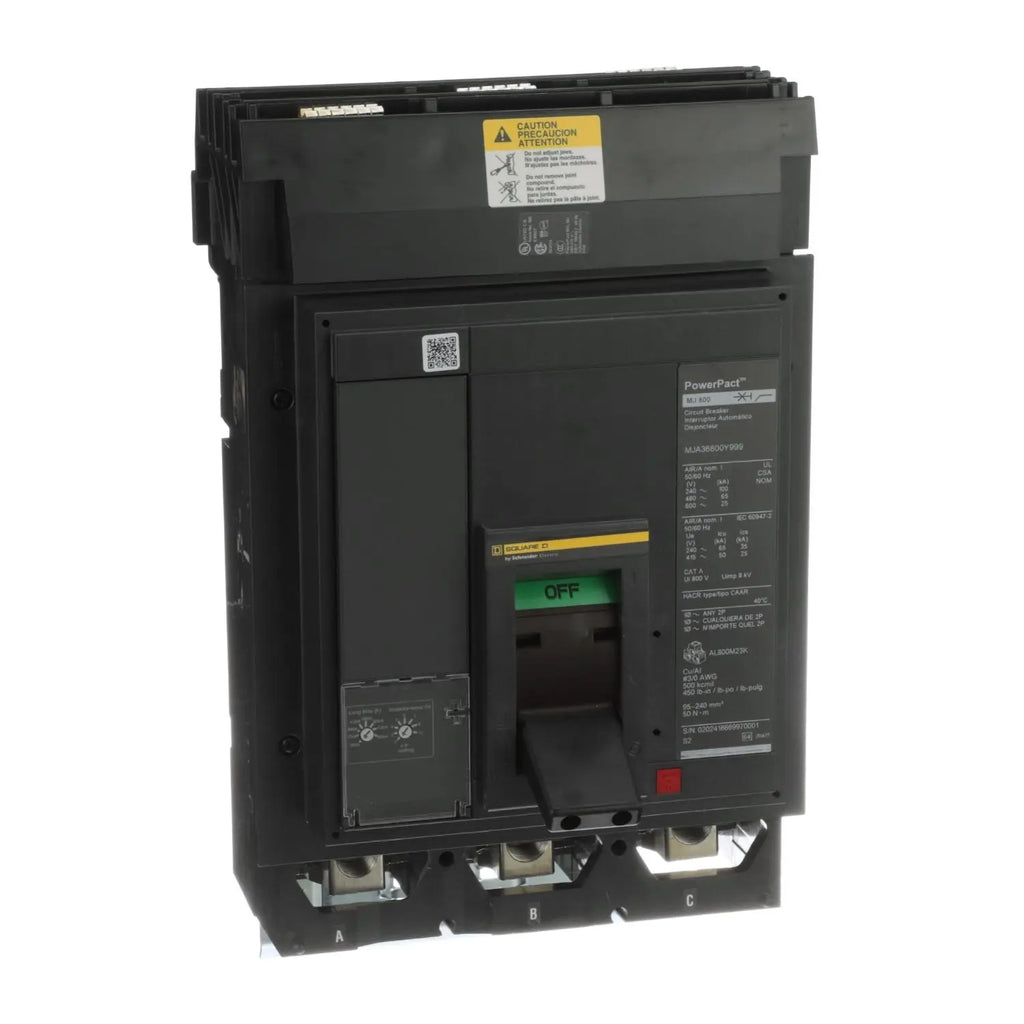

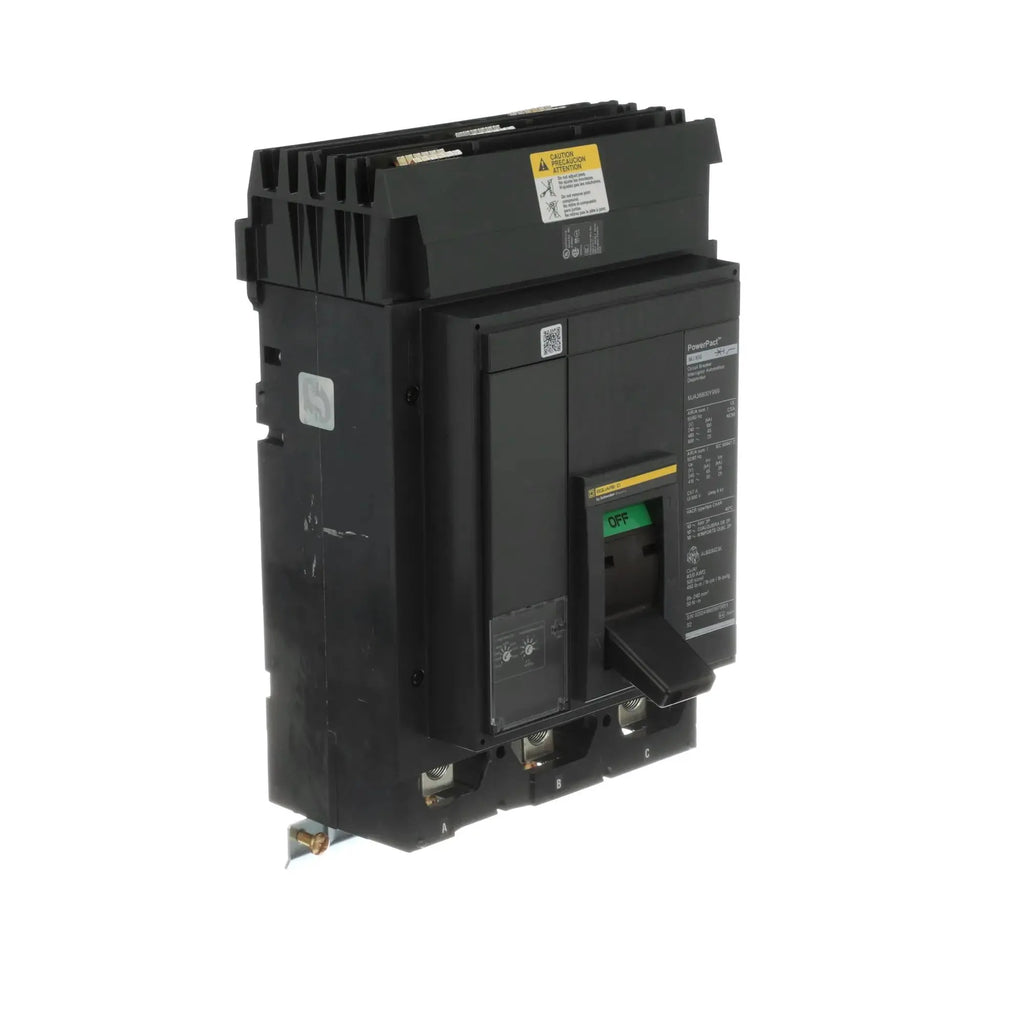

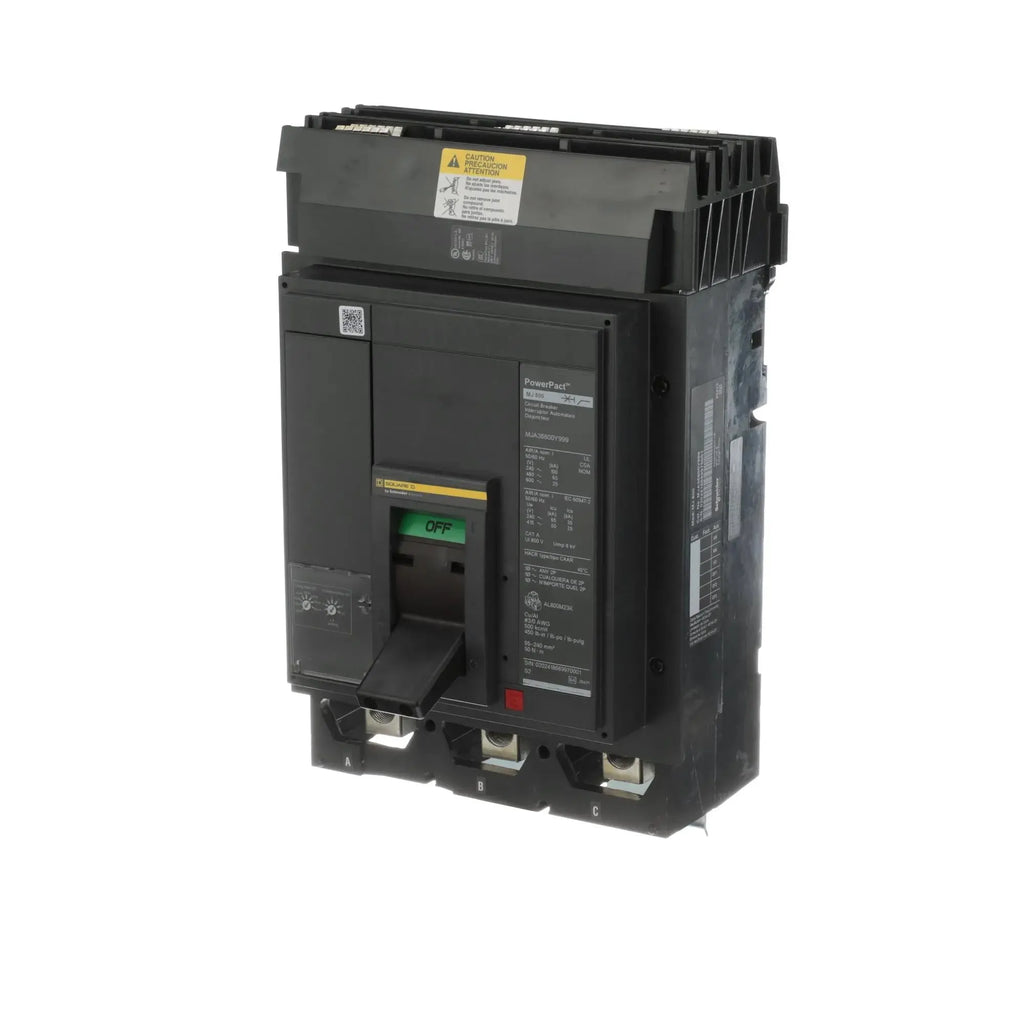

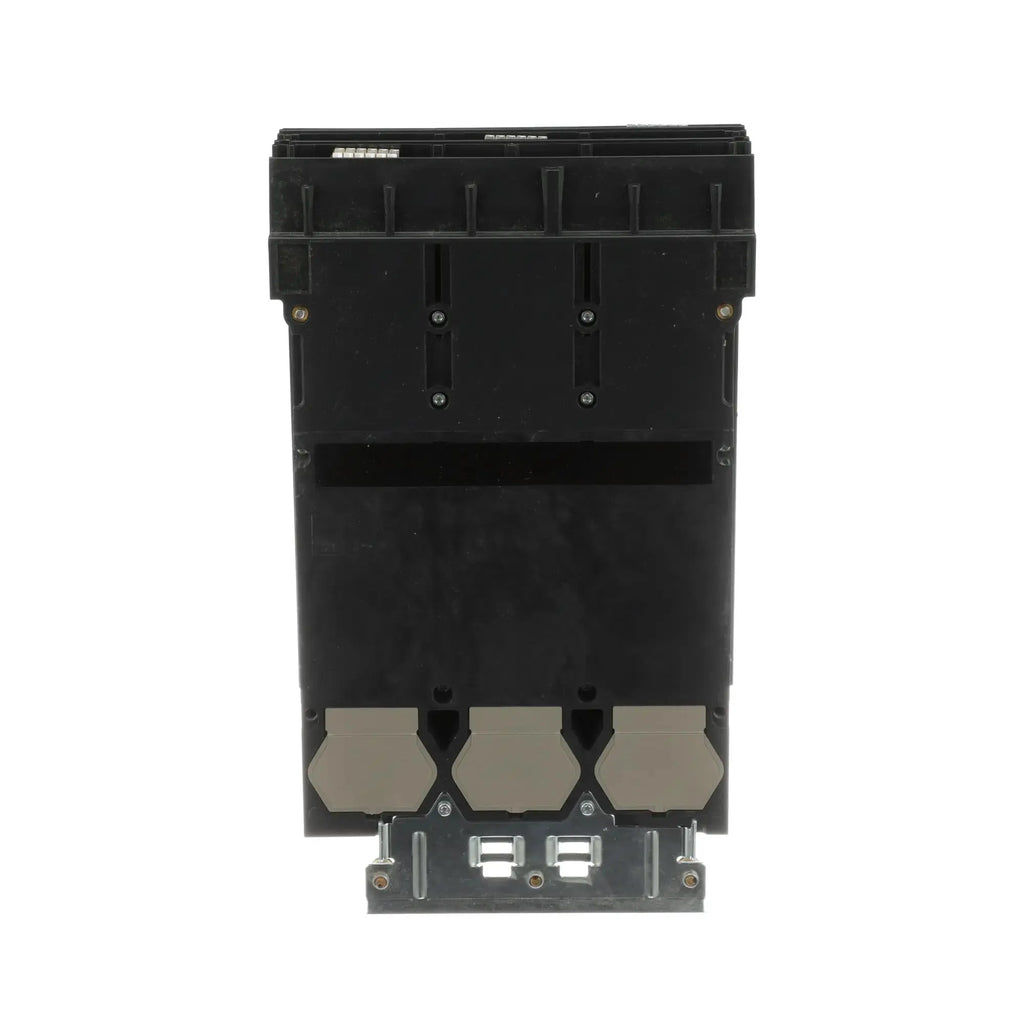

MJA36800E10 is a PowerPact M-frame molded case circuit breaker manufactured by Schneider Electric / Square D. It is a 3-pole, 800 A, 600 V AC breaker equipped with an electronic trip unit (E10) for advanced adjustable protection. The MJA36800E10 provides reliable overcurrent and short-circuit protection for commercial and industrial distribution systems.

• Manufacturer: Schneider Electric / Square D
• Series: PowerPact M-Frame
• Type: Electronic Trip Molded Case Circuit Breaker
• Poles: 3
• Amperage Rating: 800 A
• Voltage Rating: 600 V AC
• Trip Unit: E10 electronic trip unit with adjustable protection settings
• Interrupting Rating: Up to 100 kA at 480 V AC (depending on configuration)
• Mounting: Bolt-on / Panel mount
• Application: Power distribution and equipment protection
• Standards: UL 489 listed, CSA certified, IEC 60947-2 compliant

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: MJA36800E10
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Voltage : 600
• Amperage : 800
• Phase : 3
• Poles : 3
• Functions : Long Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Solid State

Product Data

• UPC : 60648221439
• GTIN : 3606482214392
• Country of Origin : United States
• Dimensions : 12.86 in (326.64 mm) x 8.27 in (210.06 mm) x 8.05 in (204.47 mm) (Height x Width x Depth)
• Weight : 29 lb
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 3 x AWG 3/0...3 x 500 kcmil aluminium/copper
