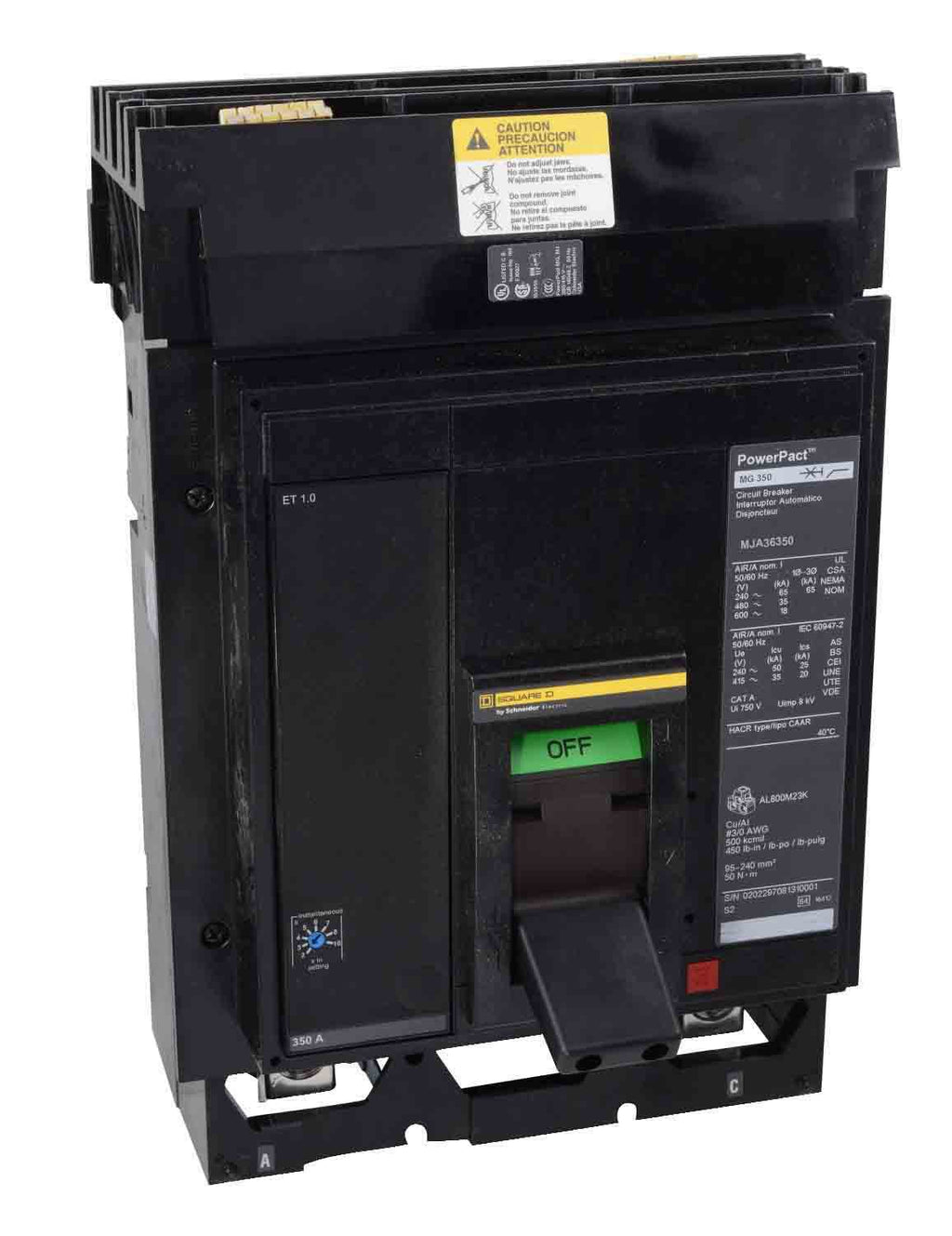

MJA36350 - Square D 350A 600V 3-Pole Molded Case Circuit Breaker MJA Frame Bolt-On

MJA36350

MJA36350 is a Square D 350 Amp, 600 Volt, 3-pole molded case circuit breaker designed for reliable circuit protection in industrial applications. MJA36350 features a bolt-on mounting type and is part of the MJA frame series. It provides thermal magnetic trip unit protection with a 25kA interrupt rating at 600VAC, suitable for power distribution and motor control. This breaker is UL and CSA certified for safety and performance.

• Amperage: 350A
• Voltage Rating: 600 VAC
• Poles: 3
• Mounting Type: Bolt-on
• Interrupt Rating: 25kA at 600VAC
• Frame/Series: MJA
• Trip Unit: Thermal Magnetic, Basic Electronic ET 1.0
• Certifications: UL, CSA
• Connection Type: Bolt-on
• Ground Fault: No
• Arc Fault: No
• Plug Neutral: No

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: MJA36350
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : MJA
• Voltage : 600
• Amperage : 350
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Panel Mount
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Box Lug
• Frame Size : 800A/M
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 3/0 AWG Max. Wire Size 500 MCM
• Breaker Type : Standard
• Protection : Solid State
• Phase Connection : ABC

Product Data

• UPC : 785901862000
• GTIN : 00785901689584
• Country of Origin : Mexico

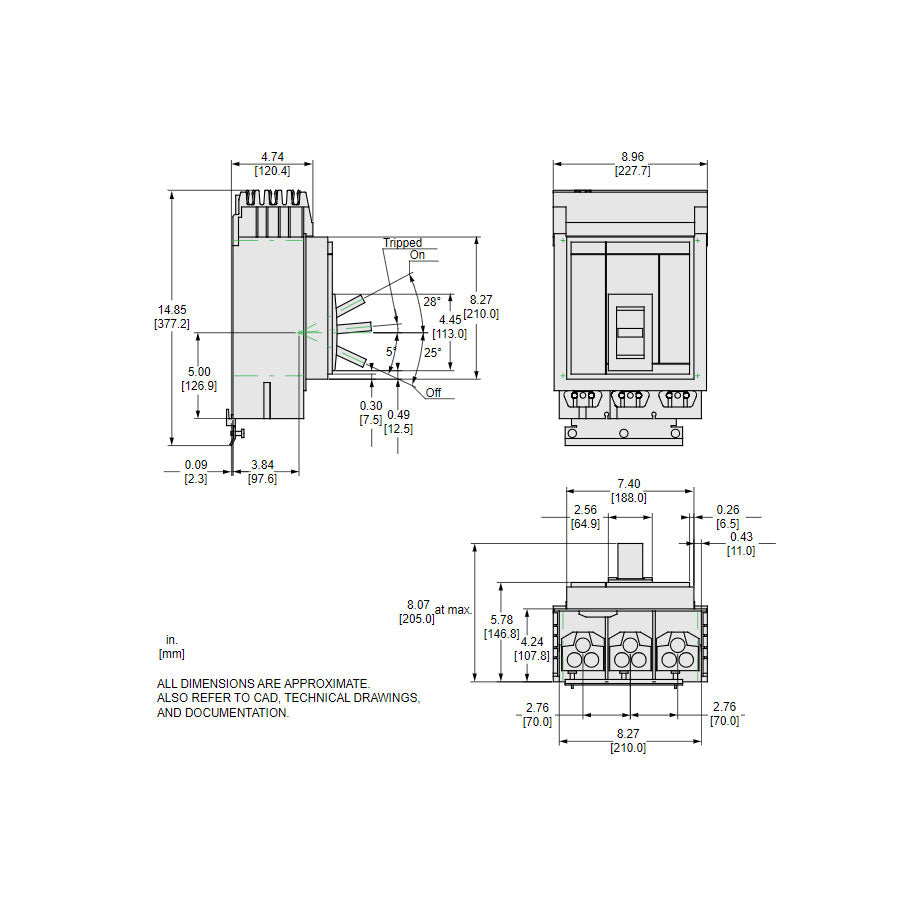

• Dimensions : 12.86 in (326.64 mm) x 8.27 in (210.06 mm) x 8.05 in (204.47 mm) (Height x Width x Depth)
• Weight : 28.396
• Panel Type : I Line Panelboards
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 3 x AWG 3/0...3 x 500 kcmil aluminium/copper
