Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage
Description

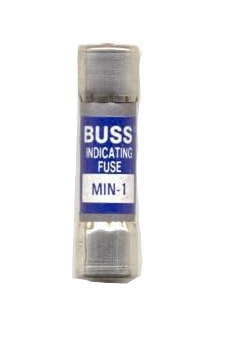

MIN-1
MIN-1 is a fast-acting midget fuse from Eaton designed for low voltage circuit protection.MIN-1 features a 1 ampere rating, 250 volts AC maximum voltage, and a 35 amp interrupt rating. It has a single pole configuration with a fiber tube body and nickel-plated bronze ferrules. This fuse is part of Eaton's MIN series, known for its pin indication with a red end pin for quick visual identification of fuse operation. It is UL listed to standard 248-14 and CSA certified, suitable for use in power electronic circuits requiring fast fuse opening and clear indication.
- Key Specifications
- Amperage: 1 Amp
- Voltage Rating: 250 Volts AC
- Poles: 1
- Fuse Type: Fast-Acting
- Interrupt Rating: 35 Amps
- Body Material: Fiber Tube
- Ferrule Material: Bronze with Nickel Plating
- Mounting Type: Fuse Holder (Clip Termination)
- Series: MIN Series
- Certifications: UL Listed, CSA Certified
- Pin Indication: Red Pin for Visual Fuse Operation
Specifications
- Part Number: MIN-1
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage
- Family : MIC Series
- Type : MIC
- Voltage : 250
- Amperage : 1
- AIC rating : 35kA@250V
- Diameter : 0.41
- Class Rating : Midget
- Barrels : 1
Product Data
- UPC : 051712726658
- GTIN : 051712726658
- Weight : 0.15
- Certification : Csa Certified Ce Marked
