Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

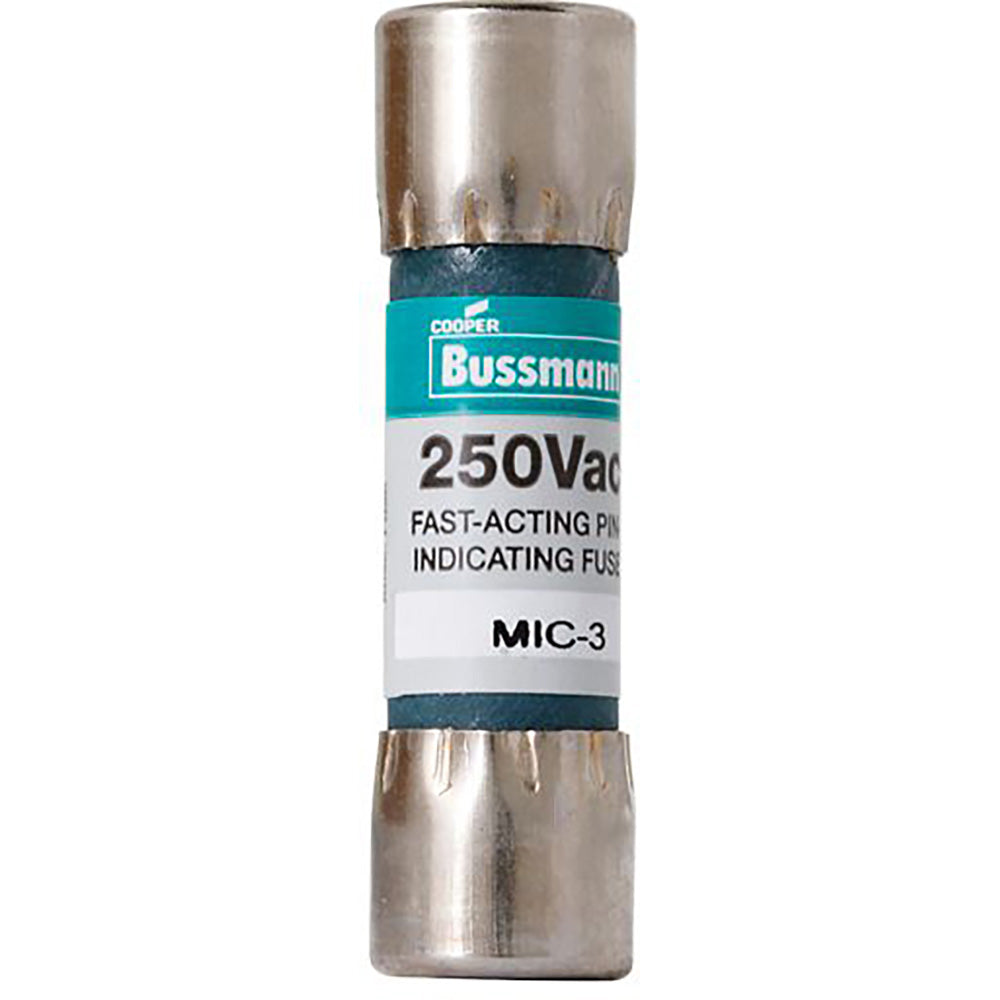

MIC-3
MIC-3 is an Eaton Bussmann series fast-acting midget fuse designed for control circuits, PLC circuits, and electronic applications. This supplemental fuse features a 3-ampere rating at 250 volts AC with a 100 AIC interrupt rating, making it suitable for protecting sensitive electronic equipment and control systems. The fuse utilizes a fiber tube body with nickel-plated bronze ferrule end connections and includes an electrically isolated end cap for enhanced safety and performance in demanding applications.
- Amperage Rating: 3 A
- Voltage Rating: 250 VAC
- Interrupt Rating: 100 AIC at 250 Vac
- Fuse Type: Fast-Acting
- Size: 5AG Midget (13/32 inch x 1-1/2 inch)
- Connection: Ferrule end x ferrule end
- Body Material: Fiber tube
- Ferrule Material: Nickel-plated bronze
- Fuse Indicator: Non-indicating
- Certifications: UL Listed, CSA Certified, CE Marked
- Catalog Number: MIC-3
- UPC: 051712726443
Specifications
- Part Number: MIC-3
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : MIC Series
- Type : MIC
- Voltage : 250
- Amperage : 3
- AIC rating : 100kA@250V
- Diameter : 0.41
- Class Rating : Midget
- Barrels : 1
Product Data
- UPC : 051712726443
- GTIN : 00051712726443
- Dimensions : 1.813 in x 0.47 in x 0.47 in (Length/Depth x Height x Width)
- Weight : 1.5
