Product Info
- Manufacturer:Square D
- Sub-Category:Molded Case
Description
MHL36100040DC1680

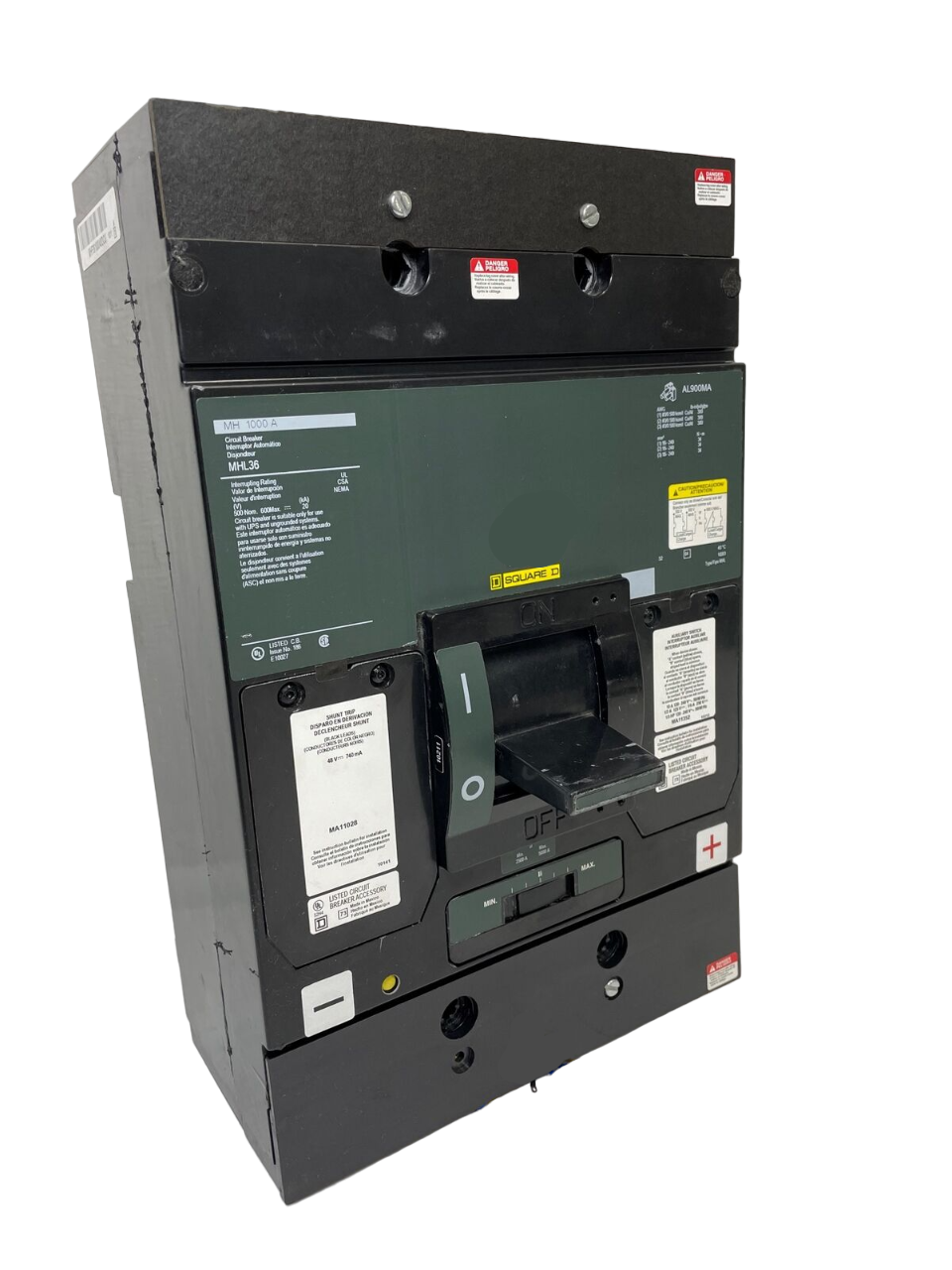

MHL36100040DC1680 is a 3 pole, 1000 amp, 600 volt molded case circuit breaker from Square D designed for high-performance electrical protection.This circuit breaker features a thermal magnetic trip unit with long-time and instantaneous (LI) trip functions, suitable for feed-thru connection. It has an interrupt rating of 20kA at 500 VDC, making it reliable for demanding DC applications. The breaker is part of the MHL series, known for robust construction and consistent performance in industrial environments.
- Key Specifications
- Amperage: 1000 Amp
- Voltage: 600 Volt
- Poles: 3
- Trip Unit: Thermal Magnetic with Long-Time and Instantaneous (LI) functions
- Connection Type: Feed-Thru
- Interrupt Rating: 20kA @ 500 VDC
- Series/Frame: MHL
- Part Number: MHL36100040DC1680
- Manufacturer : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : MHL Series
- Type : MHL
- Voltage : 600
- Amperage : 1000
- Phase : 3
- Poles : 3
- AIC rating : 20kA@500VDC
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Frame Size : M Frame
- Protection : Thermal Magnetic
- Dimensions : Depth 8.05 in (204.47 mm) Width 8.27 in (210.06 mm) Height 12.86 in (326.64 mm)
- Weight : 40
