Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
MGL36800

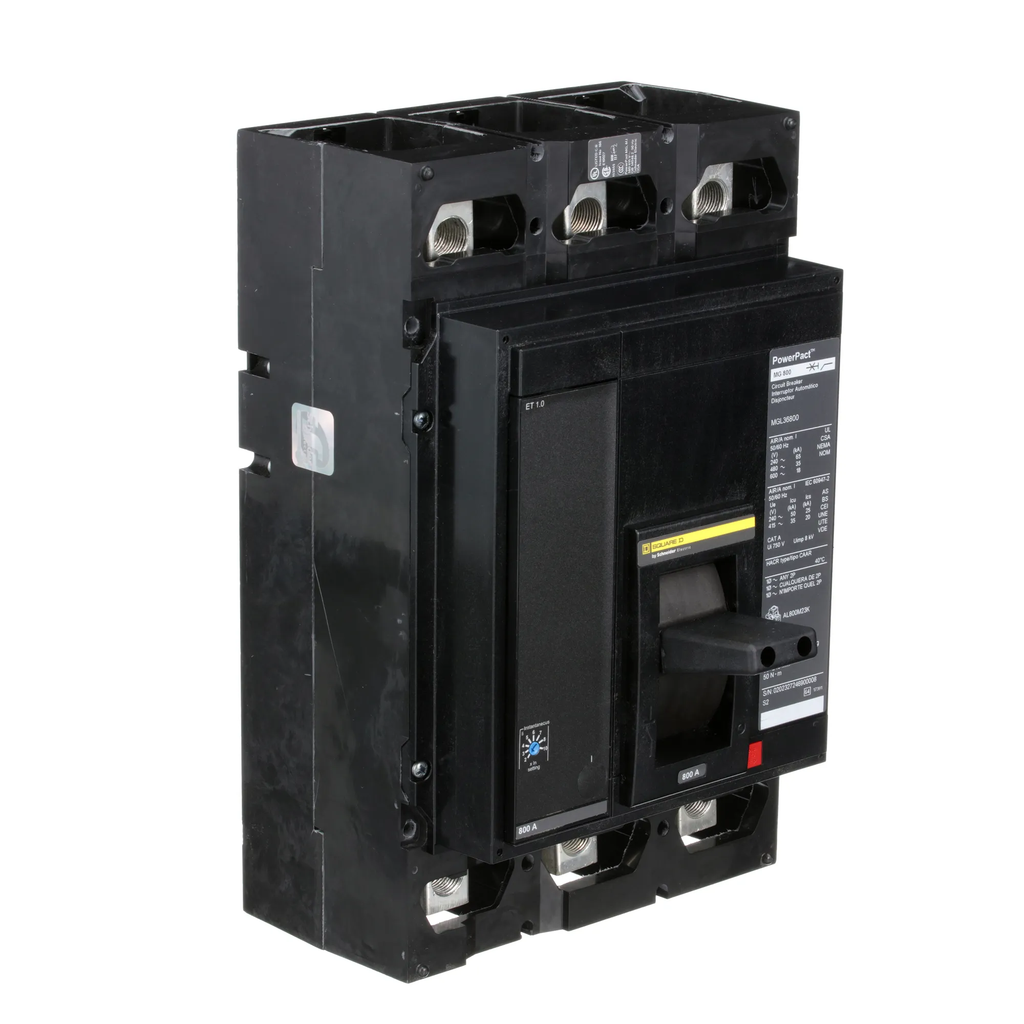

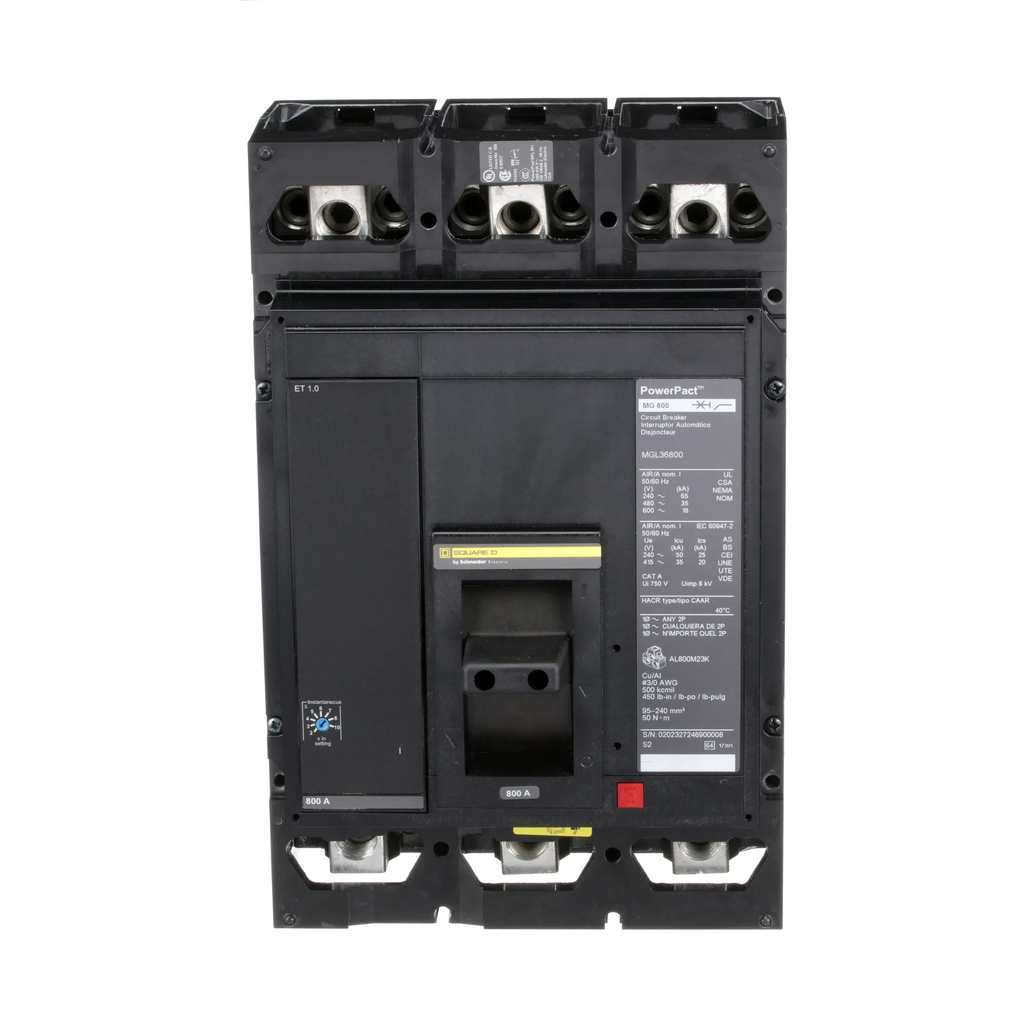

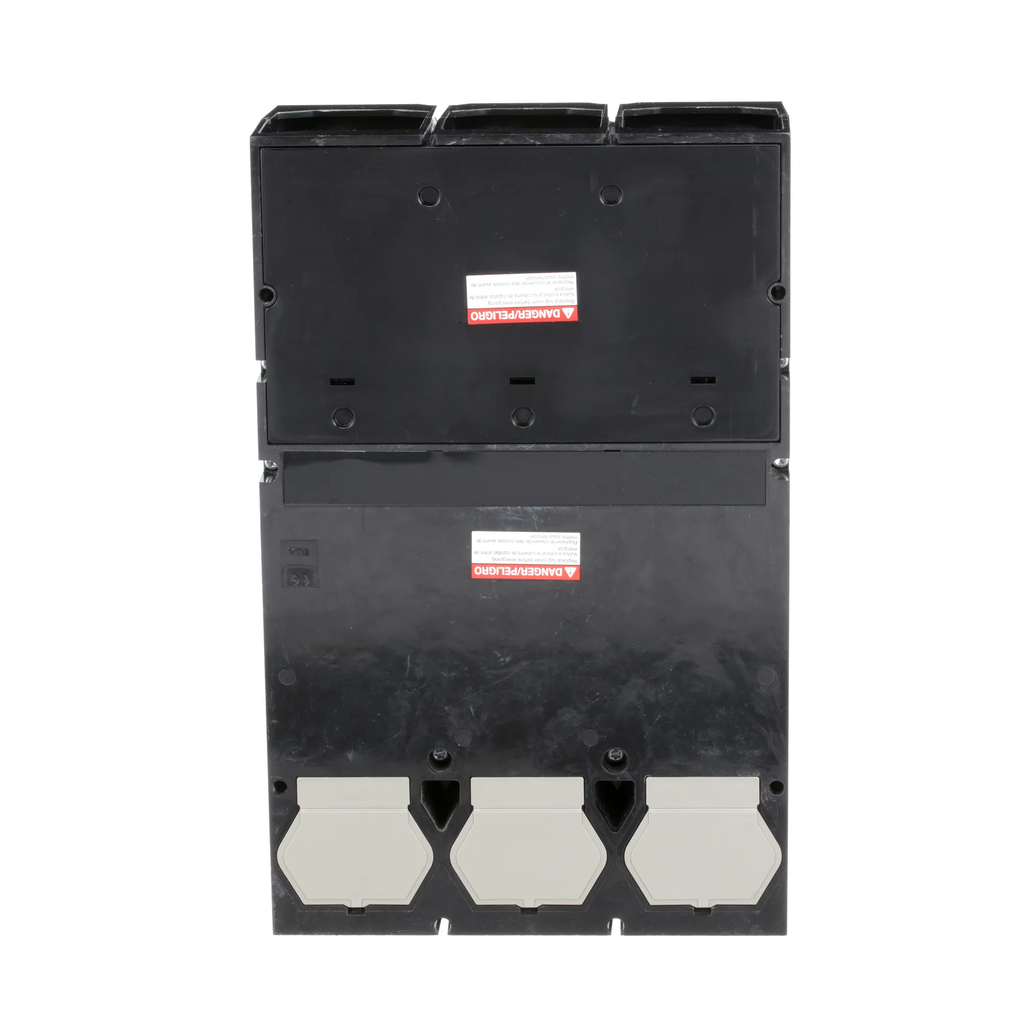

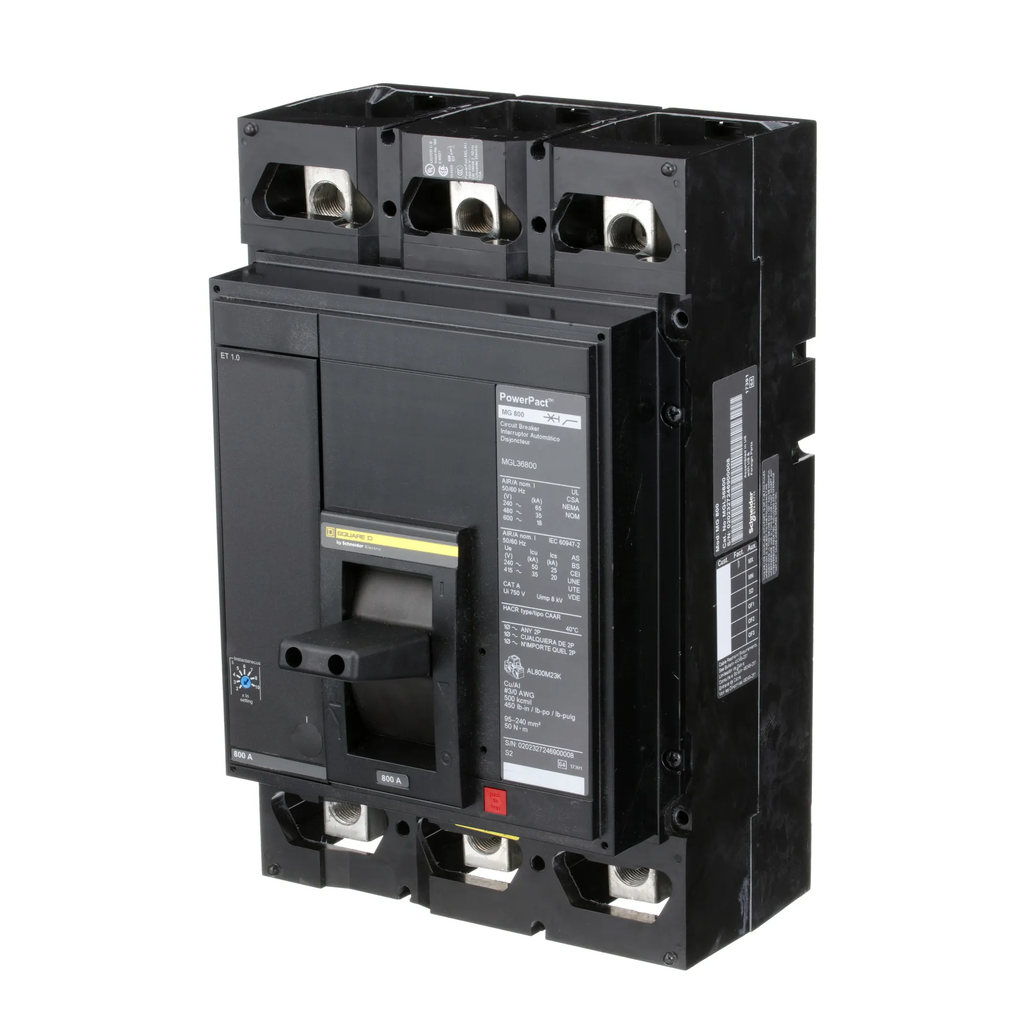

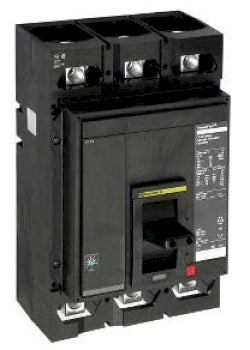

MGL36800 is a Square D PowerPact M Frame molded case circuit breaker rated for 800 amps and 600 volts with 3 poles.This 3-pole circuit breaker features an electronic trip unit designed to protect electrical systems from overloads and short circuits. It is UL 489, CSA, IEC, and CE certified, suitable for 50/60 Hz applications, and offers a 25 kA interrupt rating at 240 V AC. The breaker has common mounting holes and handle locations for easy installation and is part of the PowerPact M series with an 80% standard rating.
- Key Specifications
- Amperage: 800 A
- Voltage Rating: 600 V AC
- Number of Poles: 3
- Frame Type: PowerPact M (MGL)
- Trip Unit: Electronic
- Interrupt Rating: 25 kA at 240 V AC
- Frequency: 50/60 Hz
- Certifications: UL 489, CSA, IEC, CE
- Mounting Type: Unit Mount
- Dimensions (HxWxD): 12.86 x 8.27 x 8.05 inches
- Standard 80% rating
Specifications
- Part Number: MGL36800
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Powerpact
- Type : MGL
- Voltage : 600
- Amperage : 800
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Lug In/Lug Out
- Functions : LI - Long-Time and Instantaneous
- Terminal Connection : Box Lug
- Frame Size : 800A/M
- Temp Rating : -13–158 °F (-25–70 °C)
- MCM Size : Min. Wire Size 3/0 AWG Max. Wire Size 500 MCM
- Breaker Type : Standard
- Protection : Solid State
- Phase Connection : ABC
Product Data
- UPC : 785901607199
- GTIN : 00785901575801
- Country of Origin : United States
- Dimensions : 12.86 in (326.64 mm) x 8.27 in (210.06 mm) x 8.05 in (204.47 mm) (Height x Width x Depth)
- Weight : 28.9 lb
- Panel Type : Equipment Gear
- Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
- Certification : UL, CSA, NOM
- Wire Size : 3 x AWG 3/0...3 x 500 kcmil aluminium/copper
