MGL36700 - Square D 700 Amp 600 Volt 3 Pole Molded Case Circuit Breaker M Frame Bolt-On

Save $5,819.40
SKU: MGL36700-New
Condition: New
Price:
$4,107.60 $9,927.00
Stock:
17 In stock, ready to be shipped

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

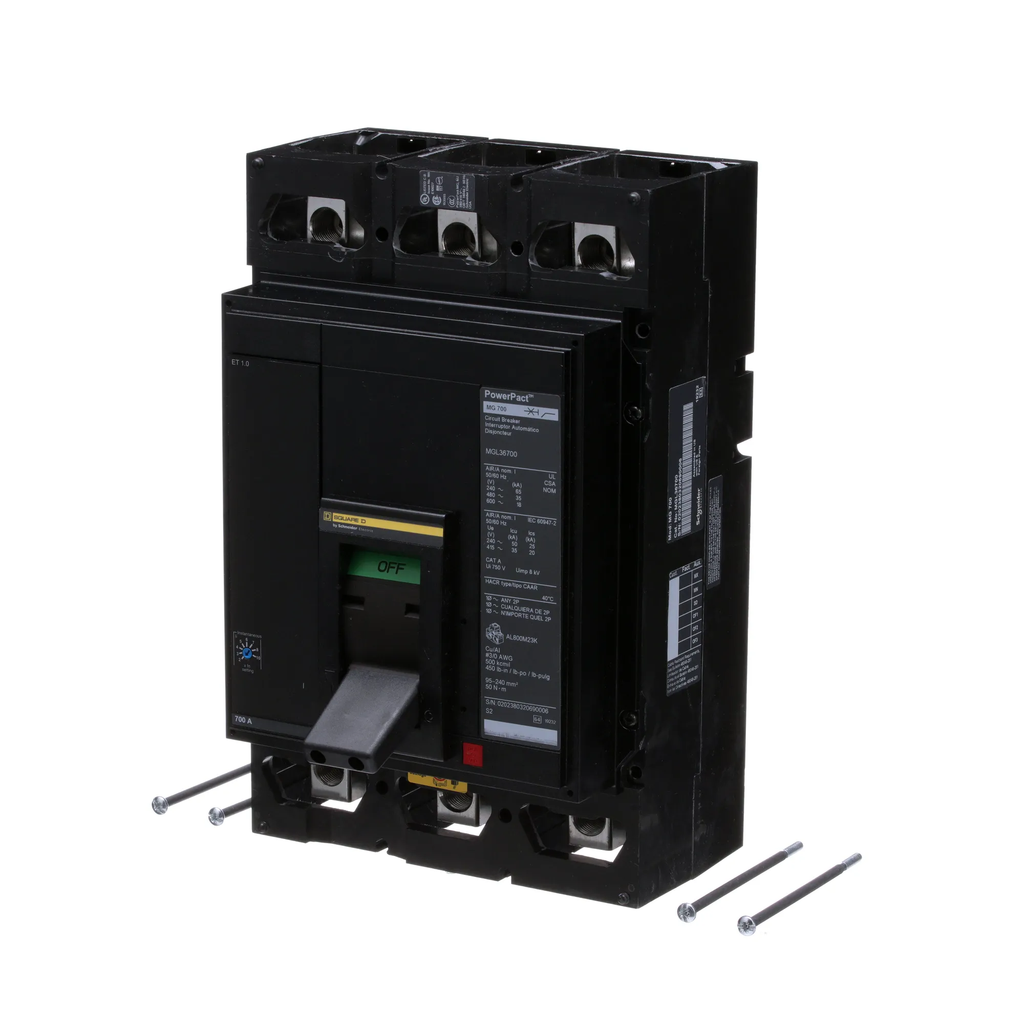

MGL36700 - Schneider Electric/ Square D Feed-Thru 700 Amp 3 Pole Circuit Breaker - Essential Electric Supply

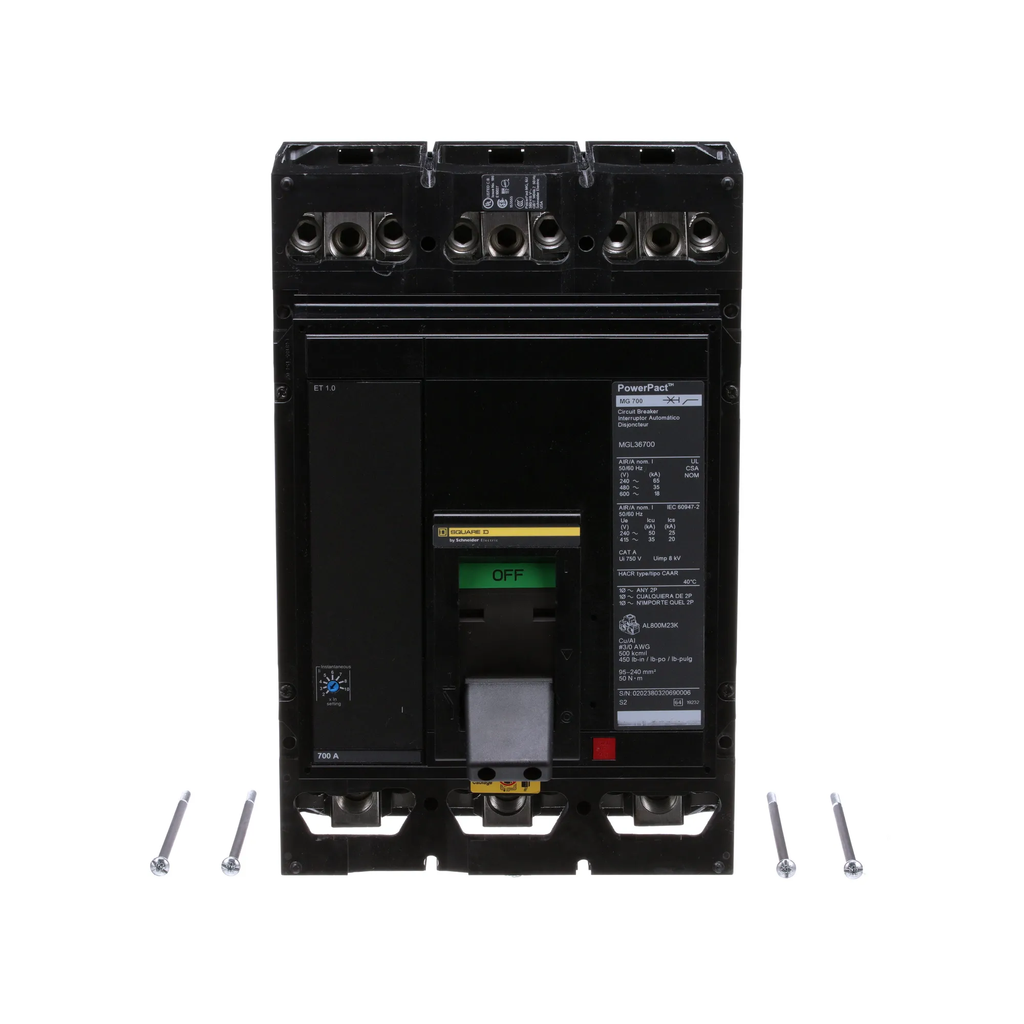

MGL36700 - Square D 700 Amp 600 Volt 3 Pole Molded Case Circuit Breaker M Frame Bolt-On - Essential Electric Supply

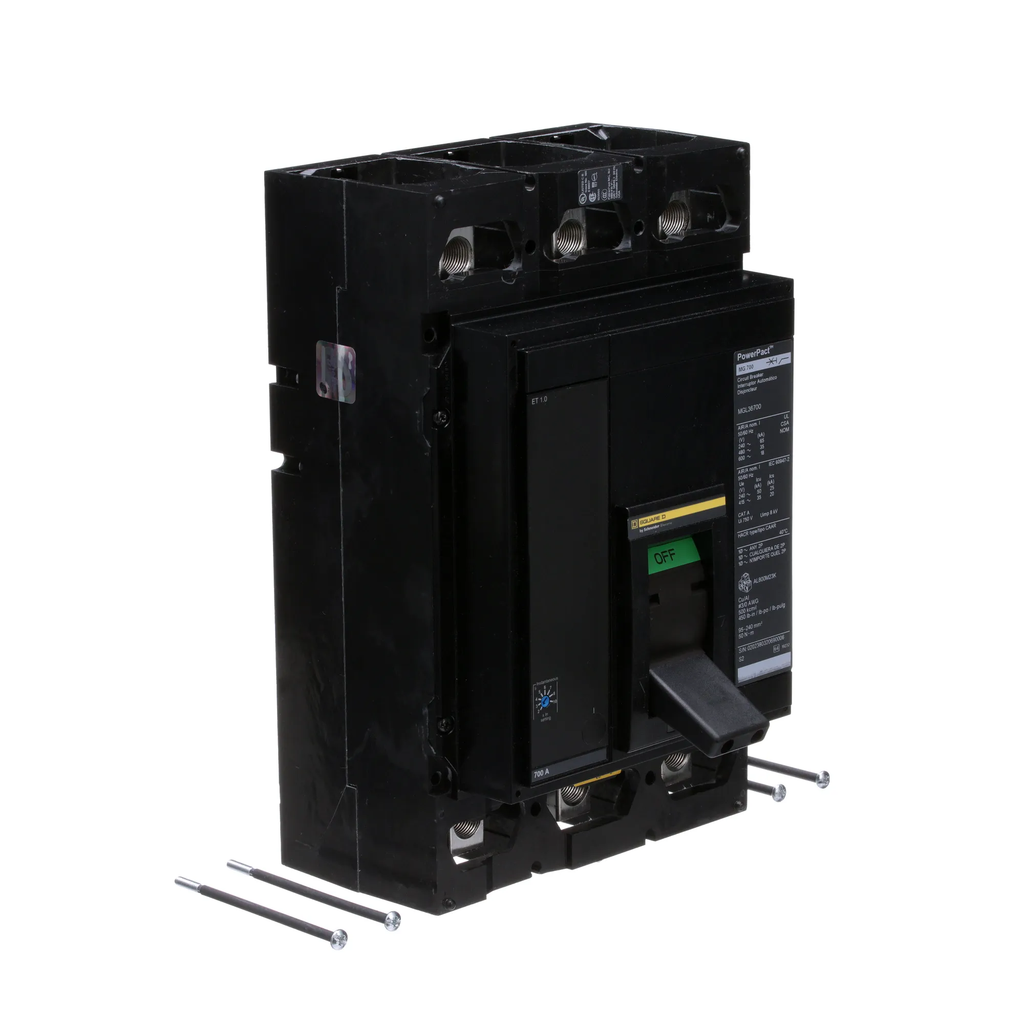

MGL36700 - Square D 700 Amp 600 Volt 3 Pole Molded Case Circuit Breaker M Frame Bolt-On - Essential Electric Supply

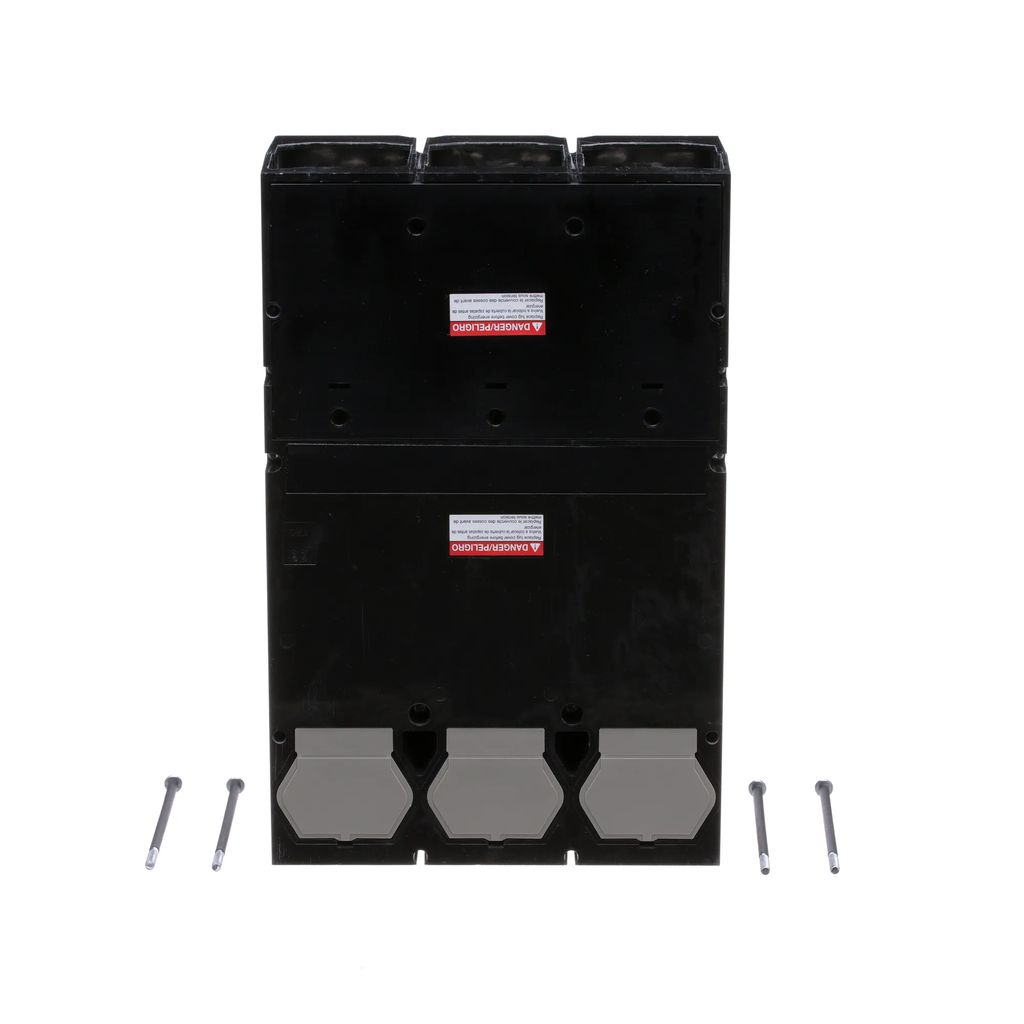

MGL36700 - Square D 700 Amp 600 Volt 3 Pole Molded Case Circuit Breaker M Frame Bolt-On - Essential Electric Supply

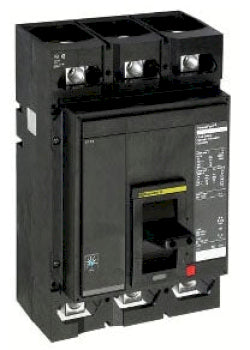

MGL36700 - Square D 700 Amp 600 Volt 3 Pole Molded Case Circuit Breaker M Frame Bolt-On - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
MGL36700 - Schneider Electric/ Square D Feed-Thru 700 Amp 3 Pole Circuit Breaker - Essential Electric Supply
MGL36700 - Square D 700 Amp 600 Volt 3 Pole Molded Case Circuit Breaker M Frame Bolt-On - Essential Electric Supply
MGL36700 - Square D 700 Amp 600 Volt 3 Pole Molded Case Circuit Breaker M Frame Bolt-On - Essential Electric Supply
MGL36700 - Square D 700 Amp 600 Volt 3 Pole Molded Case Circuit Breaker M Frame Bolt-On - Essential Electric Supply
MGL36700 - Square D 700 Amp 600 Volt 3 Pole Molded Case Circuit Breaker M Frame Bolt-On - Essential Electric Supply

Description

MGL36700


MGL36700 is a Square D 3 Pole Molded Case Circuit Breaker rated for 700 Amps and 600 Volts with a bolt-on mounting design.This Square D MGL36700 circuit breaker features a thermal magnetic trip unit with an M frame series, designed for reliable protection in industrial and commercial power distribution. It supports a 65 kA interrupt rating at 240 VAC and is UL, CSA, and CE certified. The breaker measures 8.27 inches wide by 8.05 inches deep by 12.86 inches high and includes line and load lug terminals.
    Key Specifications
    • Amperage: 700A
    • Voltage: 600 VAC
    • Poles: 3
    • Mounting Type: Bolt-On
    • Interrupt Rating: 65 kA at 240 VAC, 35 kA at 480 VAC, 18 kA at 600 VAC
    • Series/Frame: MGL (M Frame)
    • Trip Unit: Thermal Magnetic
    • Approvals: UL Listed, CSA Certified, CE Certified
    • Dimensions: 8.27" W x 8.05" D x 12.86" H
    • Terminal Type: Line and Load Lug
    At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

    Specifications

    • Part Number: MGL36700
    • Manufacturer : Schneider Electric
    • Brand : Square D
    • Category : Circuit Breaker
    • Item Subcategory : Molded Case
    • Family : Powerpact
    • Type : MGL
    • Voltage : 600
    • Amperage : 700
    • Phase : 3
    • Poles : 3
    • AIC rating : 35kA@480V
    • Connection : Lug In/Lug Out
    • Functions : LI - Long-Time and Instantaneous Trip
    • Terminal Connection : Box Lug
    • Frame Size : 800A/M
    • Temp Rating : -13–158 °F (-25–70 °C)
    • MCM Size : Min. Wire Size 3/0 AWG Max. Wire Size 500 MCM
    • Breaker Type : Standard
    • Protection : Solid State
    • Phase Connection : ABC

    Product Data

    • UPC : 785901607199
    • GTIN : 00785901607199
    • Country of Origin : Mexico
    • Dimensions : 12.86 in (326.64 mm) x 8.27 in (210.06 mm) x 8.05 in (204.47 mm) (Height x Width x Depth)
    • Weight : 28.601
    • Panel Type : Equipment Gear
    • Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
    • Certification : UL, CSA, NOM
    • Wire Size : 3 x AWG 3/0...3 x 500 kcmil aluminium/copper
