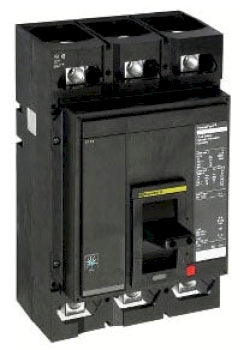

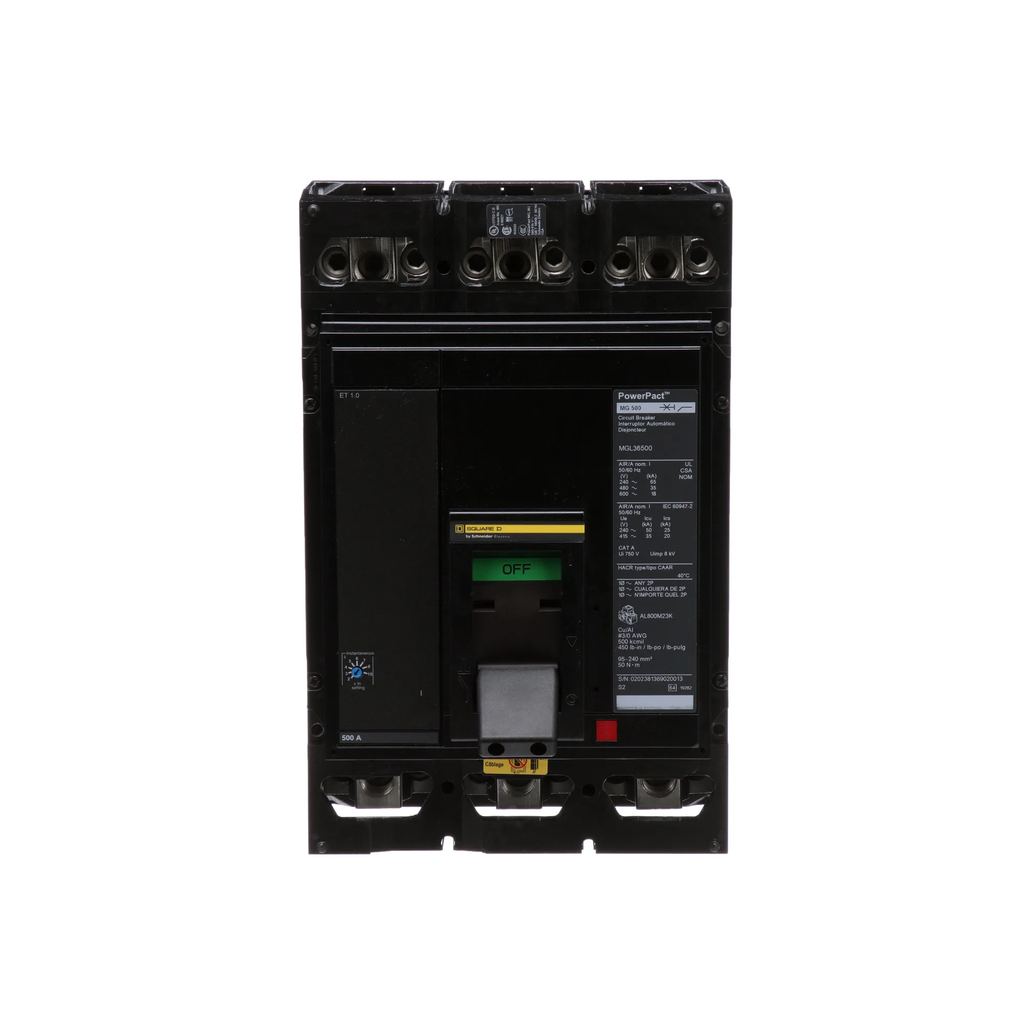

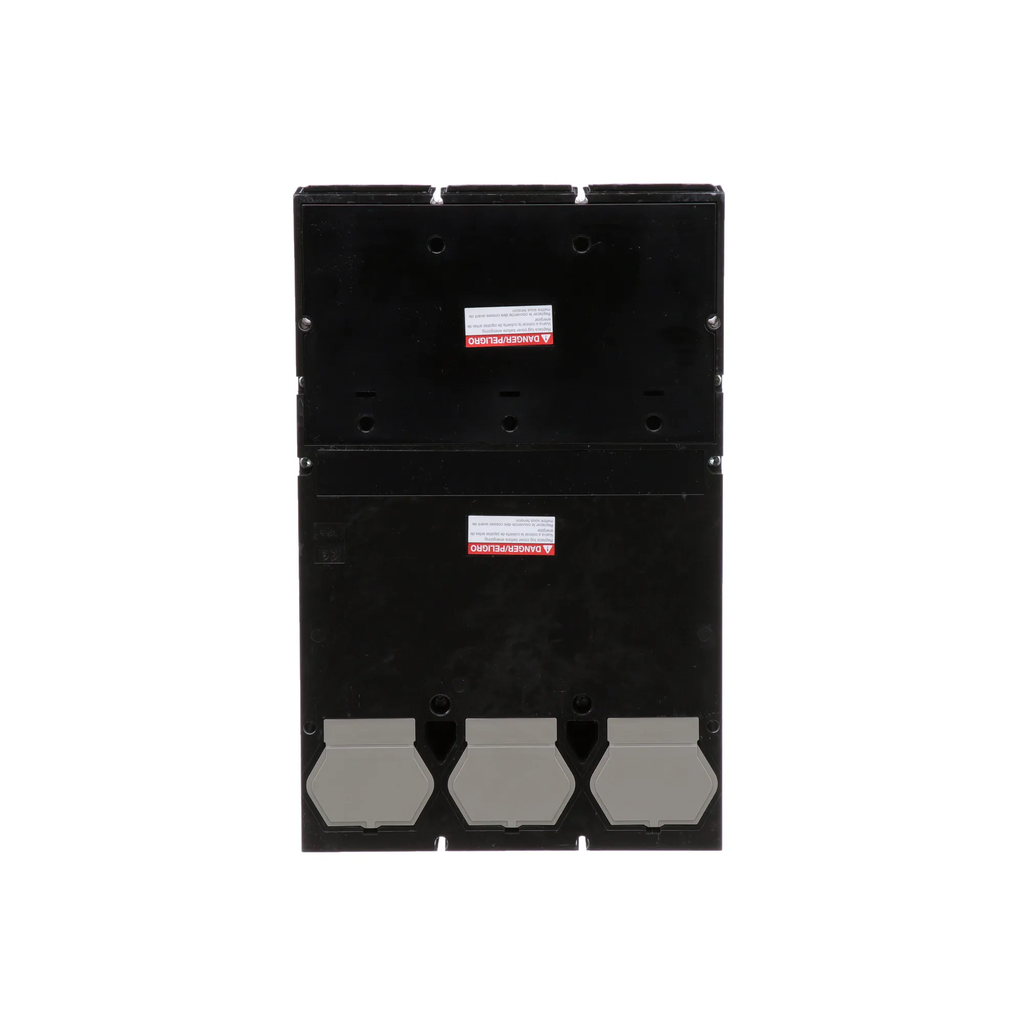

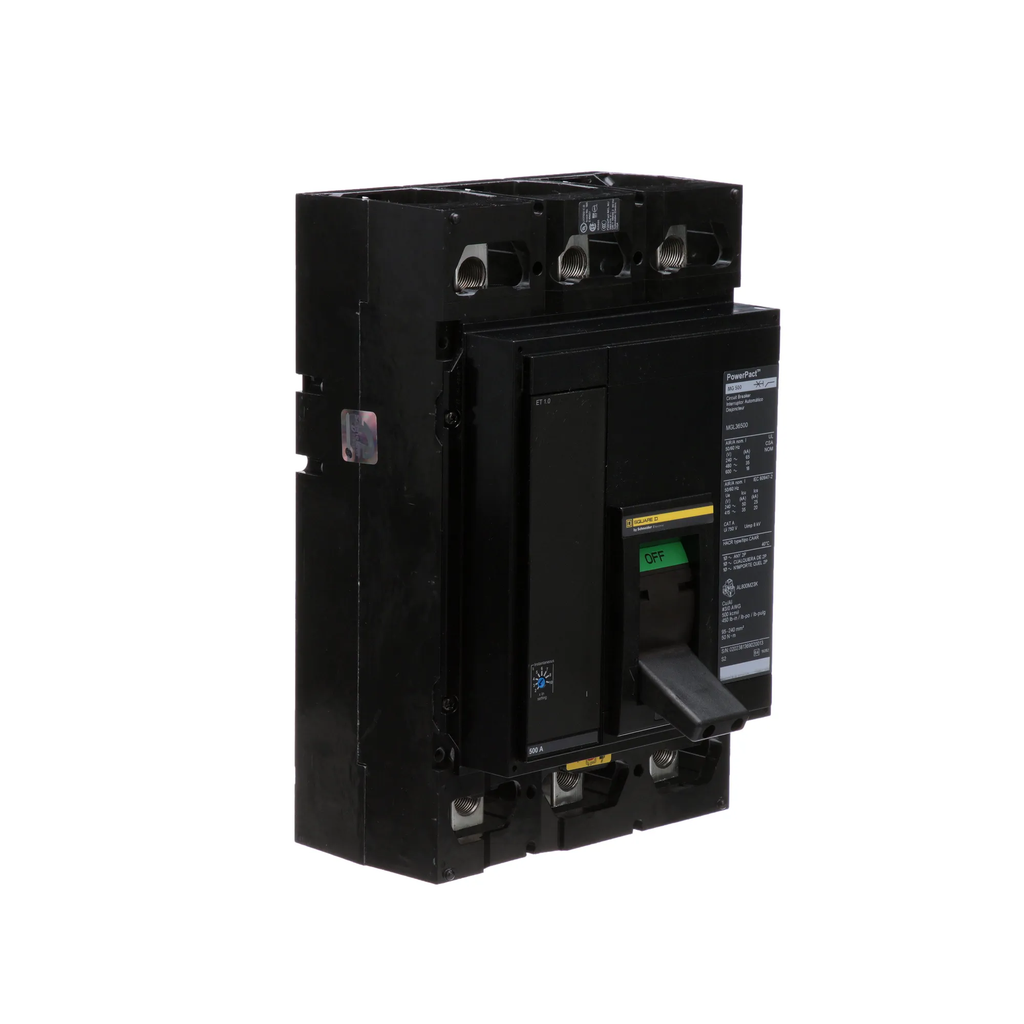

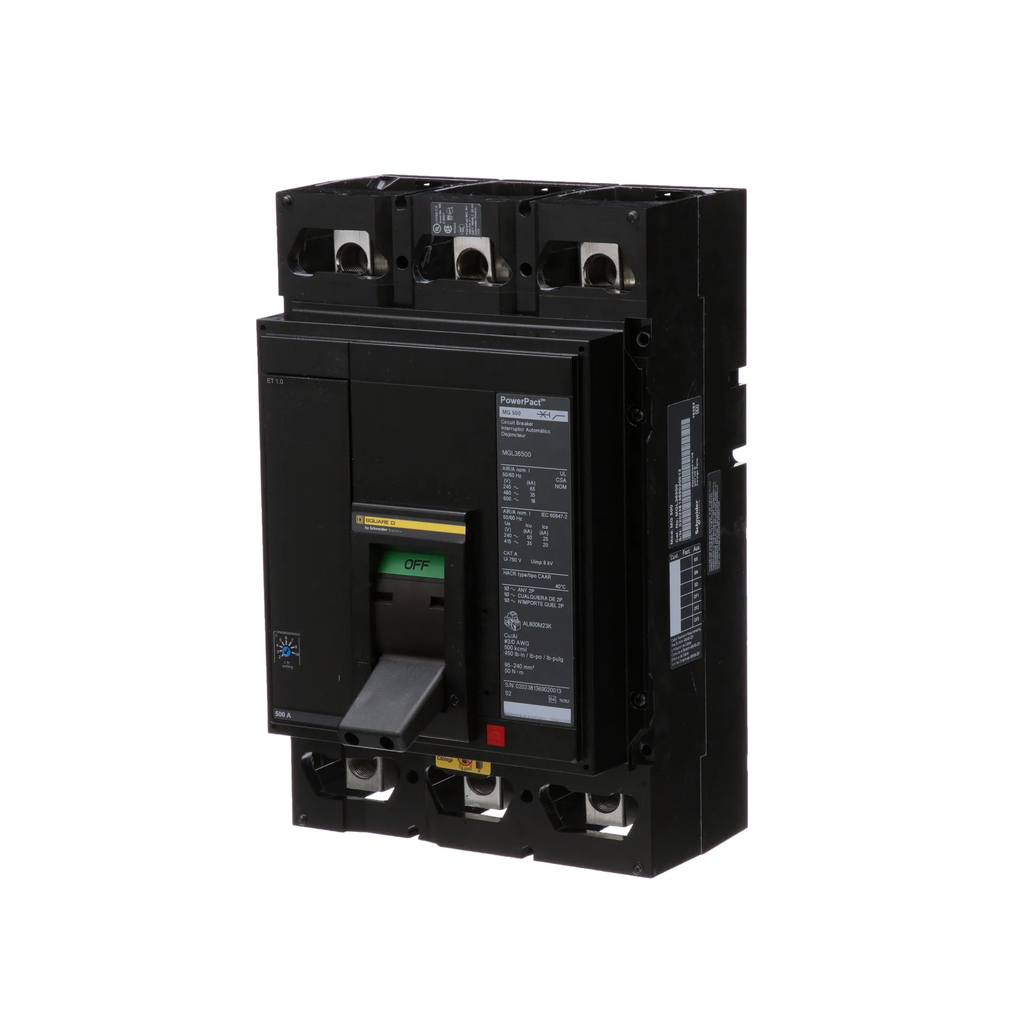

MGL36500 - Square D PowerPacT M 500A 3P 600VAC 18kA Interrupt Molded Case Circuit Breaker, M Frame, Electronic Trip, UL/CSA

MGL36500

MGL36500 is a Square D PowerPacT M series molded case circuit breaker designed for reliable overload and short circuit protection in commercial and industrial applications.

This 3-pole breaker features a 500A continuous current rating, 600VAC maximum voltage, and an 18kA interrupting rating at 600VAC. It is equipped with an electronic basic ET 1.0 trip unit, line and load side lug terminals, and is suitable for unit mounting. The MGL36500 is UL and CSA listed, ensuring compliance with North American safety standards.

Key Specifications
• Manufacturer: Square D
• Part Number: MGL36500
• Series/Frame: PowerPacT M (M Frame)
• Amperage: 500A
• Voltage: 600VAC (also rated 240VAC, 480VAC)
• Poles: 3
• Mounting Type: Unit mount, lug terminals
• Interrupt Rating: 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC
• Trip Unit: Electronic, basic ET 1.0 (300–800A adjustable)
• Certifications: UL 489 Listed, CSA
• Frequency: 50/60 Hz
• Wire Range: 3/0 AWG to 500 kcmil
• Continuous Current Rating: 80%

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: MGL36500
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : MGL
• Voltage : 600
• Amperage : 500
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Lug In/Lug Out
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Box Lug
• Frame Size : 800A/M
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 3/0 AWG Max. Wire Size 500 MCM
• Breaker Type : Standard
• Protection : Solid State
• Phase Connection : CBA

Product Data

• UPC : 785901661641
• GTIN : 00785901661641
• Country of Origin : Mexico
• Dimensions : 12.86 in (326.64 mm) x 8.27 in (210.06 mm) x 8.05 in (204.47 mm) (Height x Width x Depth)
• Weight : 28.751
• Panel Type : Equipment Gear
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 3 x AWG 3/0...3 x 500 kcmil aluminium/copper
