MGL26600 - Schneider Electric PowerPact M Molded Case Circuit Breaker 600A 2 Pole 600VAC 18kA Lugs ET 1.0 80% Rated

MGL26600

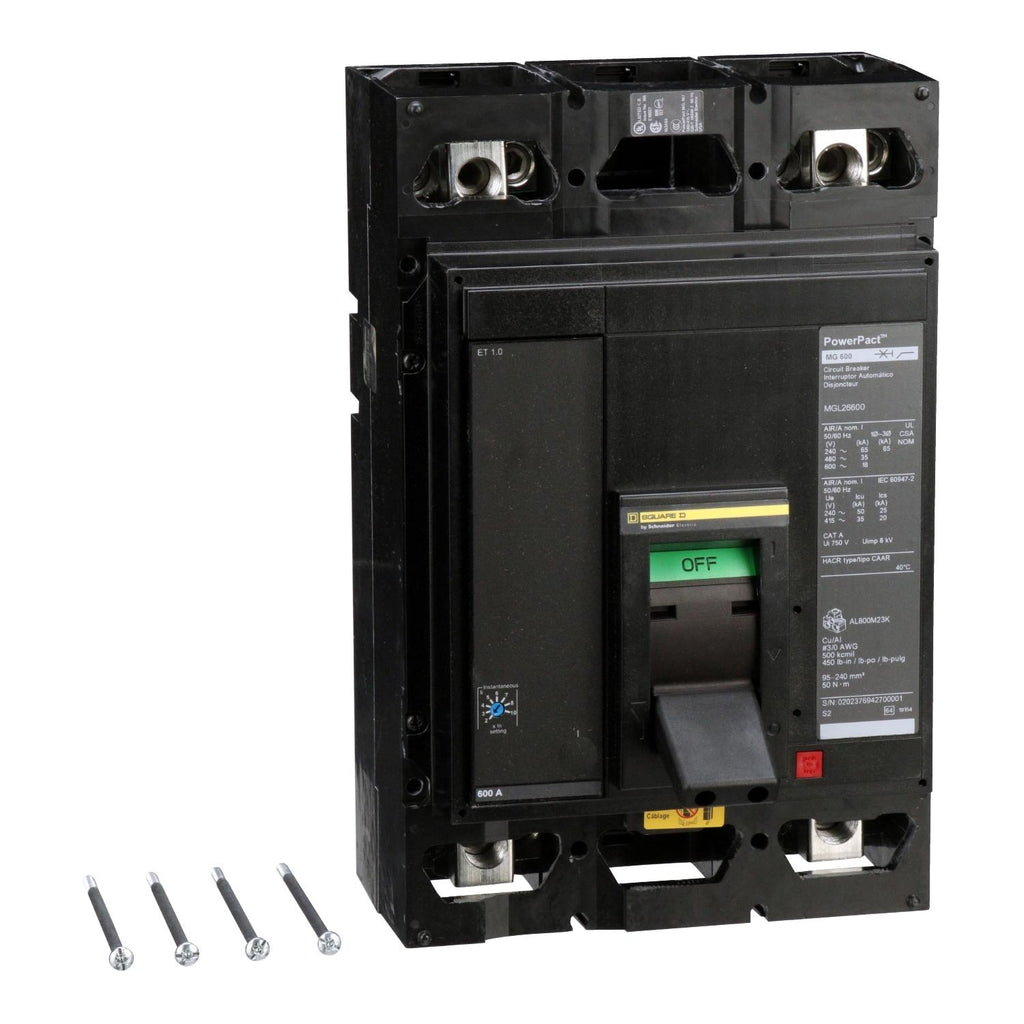

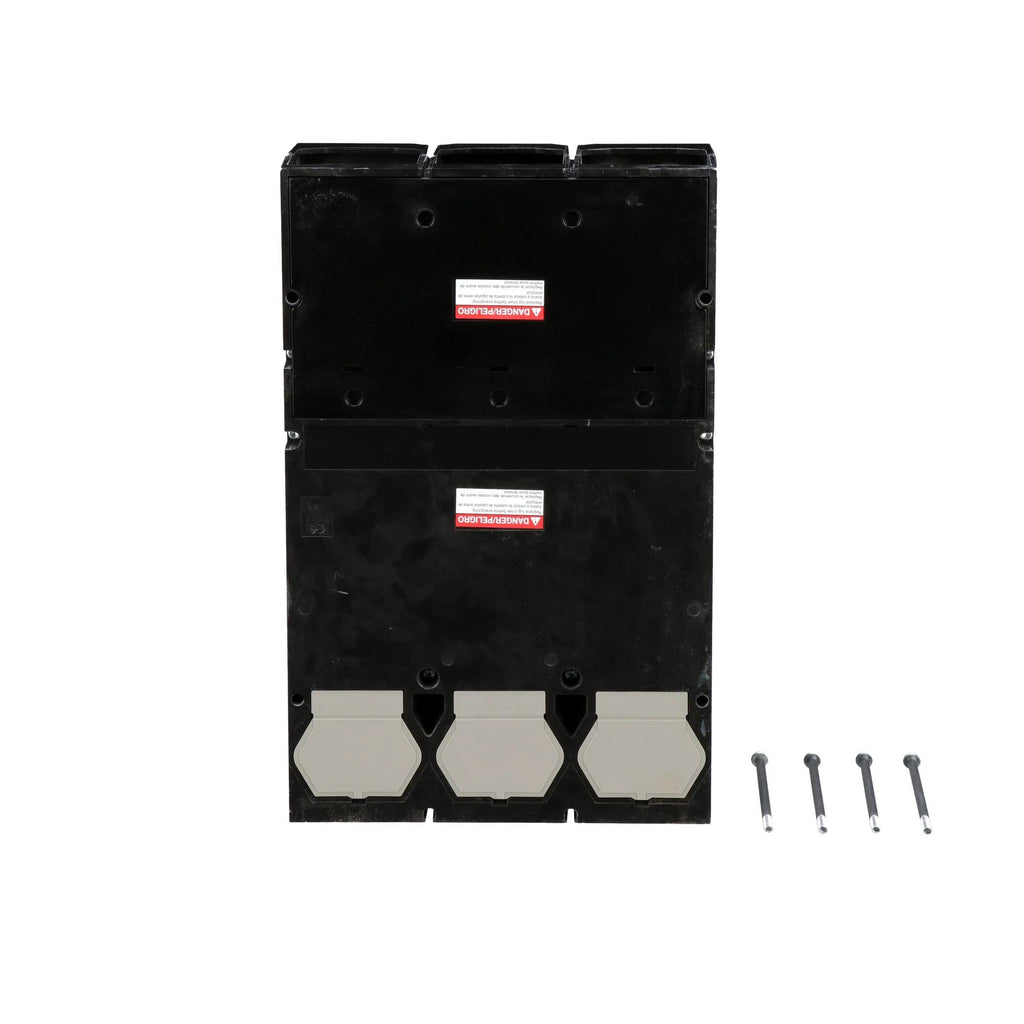

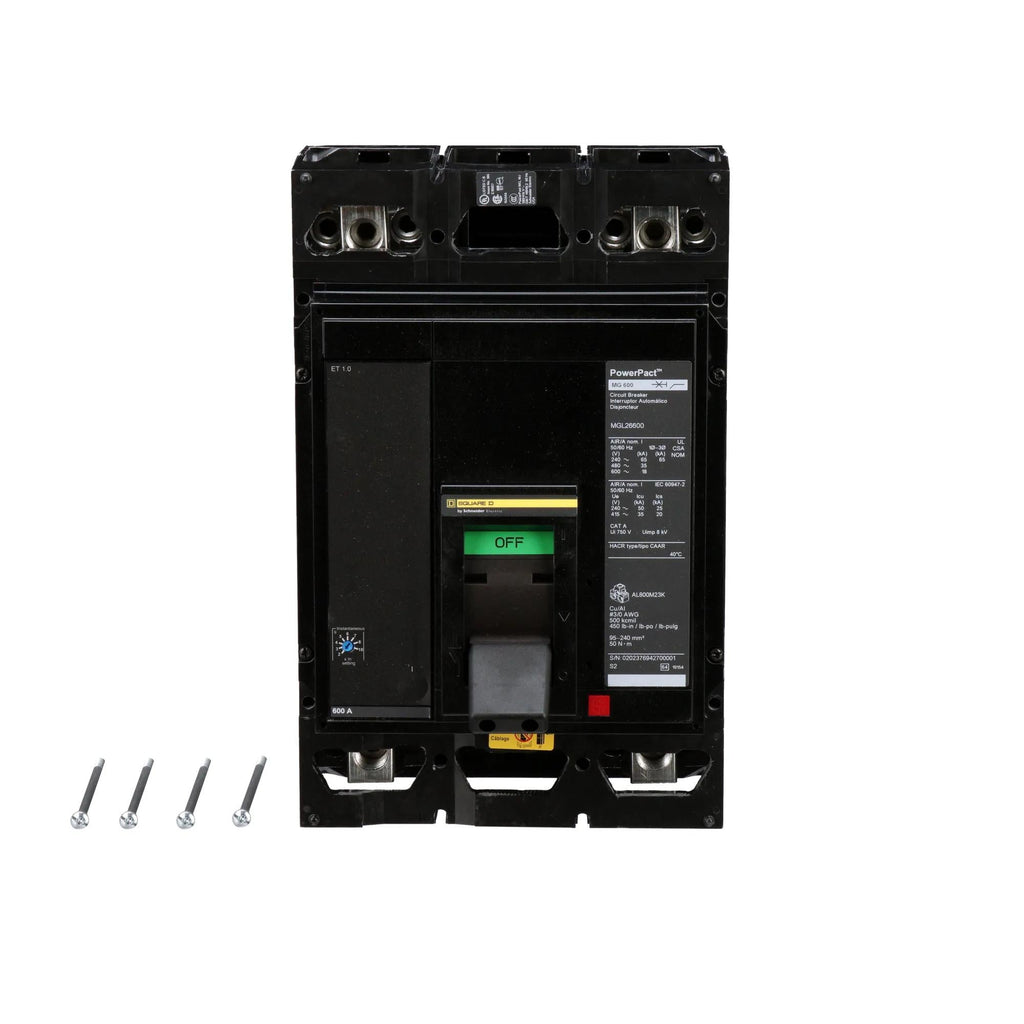

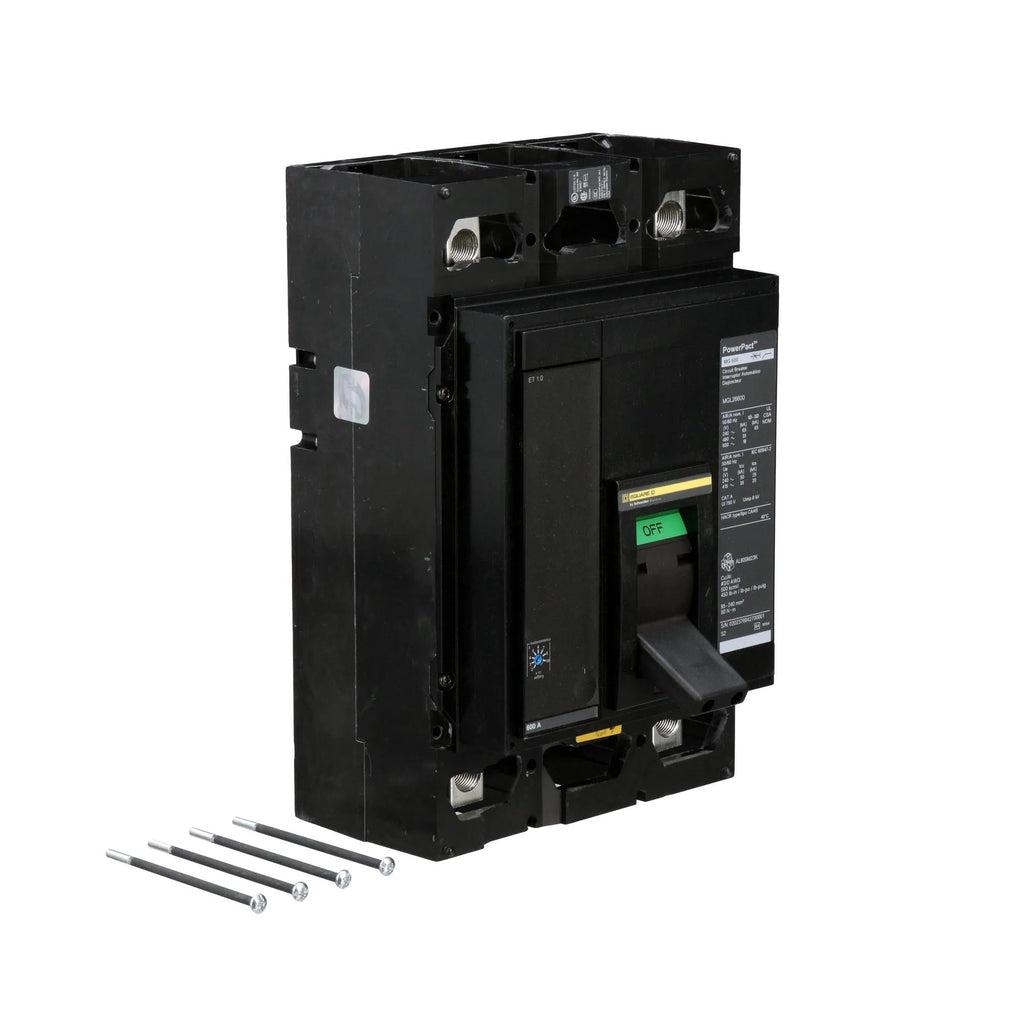

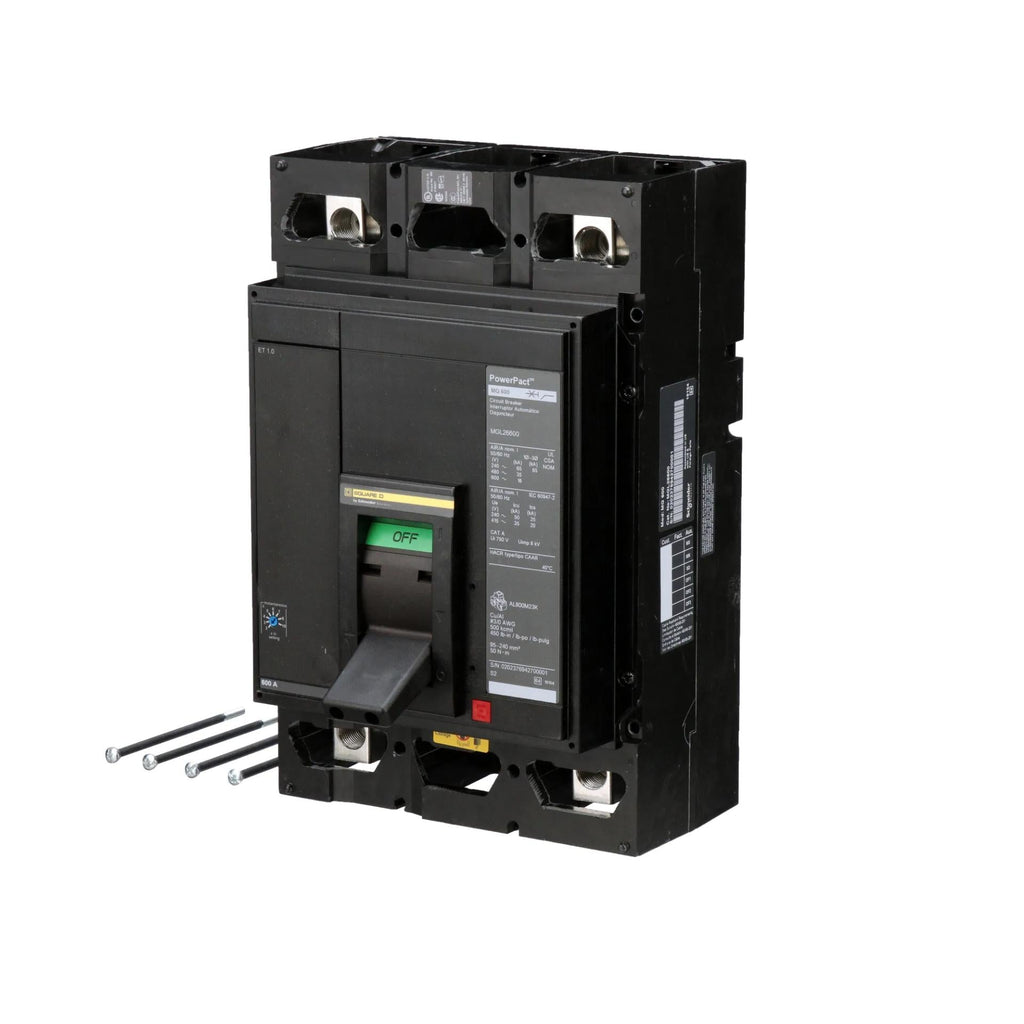

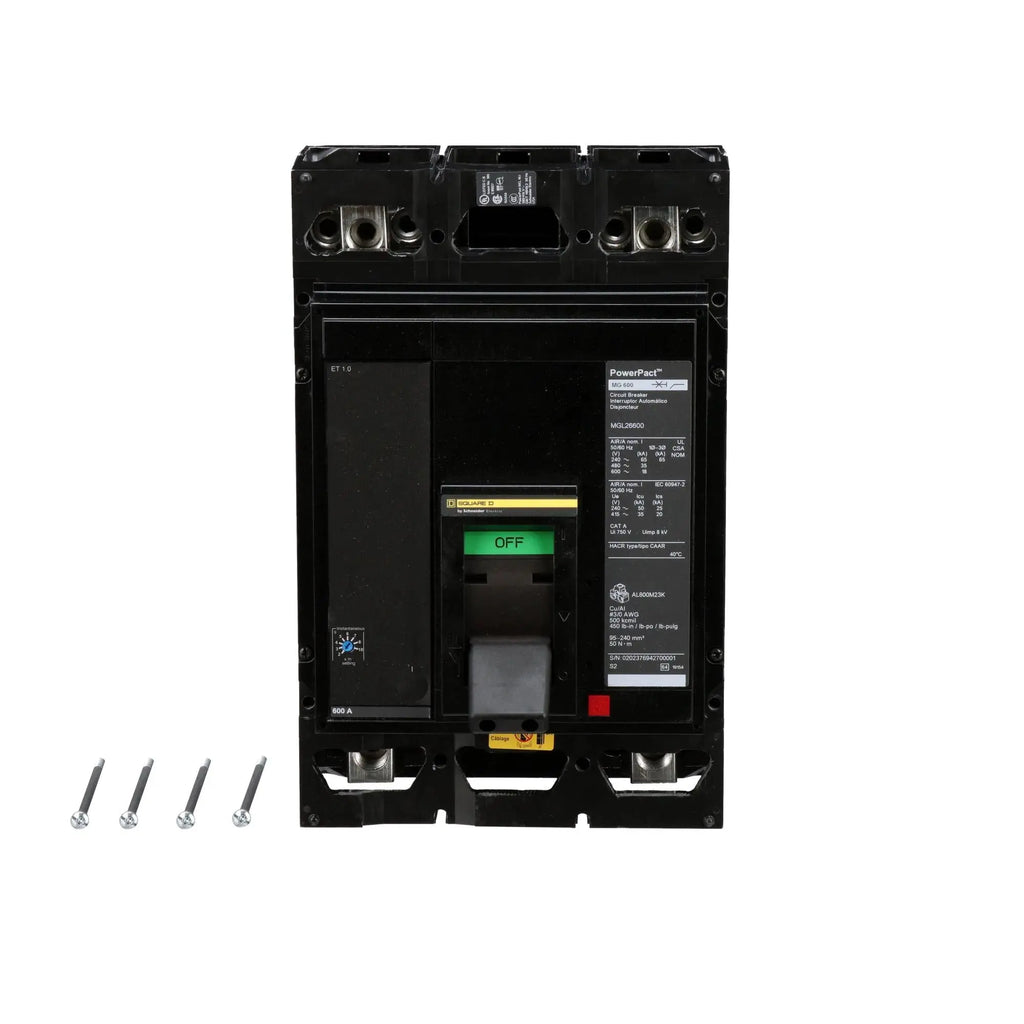

MGL26600 is a Schneider Electric PowerPact M molded case circuit breaker designed for reliable protection of electrical systems.This 600 amp, 2 pole circuit breaker operates at up to 600 VAC with an 18kA interrupt rating at 600 VAC and 65kA at 240 VAC. It features an electronic trip unit (ET 1.0) with an 80% continuous current rating and lugs for line and load connections. The breaker is UL 489 listed and certified by CSA, NMX, and IEC standards, suitable for main lug panelboard terminations with common mounting holes and handle locations.

Key Specifications
• Amperage: 600 A
• Voltage: 600 VAC
• Poles: 2
• Interrupt Rating: 18 kA at 600 VAC, 65 kA at 240 VAC
• Frame/Series: PowerPact M
• Trip Unit: Electronic Trip (ET 1.0)
• Mounting Type: Unit Mount
• Continuous Current Rating: 80%
• Line and Load Lugs
• Certifications: UL 489, CSA, NMX, IEC

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: MGL26600
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : MGL
• Voltage : 600
• Amperage : 600
• Phase : 1
• Poles : 2
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Protection : Solid State

Product Data

• UPC : 785901507604
• GTIN : 00785901507604
• Country of Origin : Mexico
• Dimensions : 12.86 in (326.64 mm) x 8.27 in (210.06 mm) x 8.05 in (204.47 mm) (Height x Width x Depth)
• Weight : 27.701
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 3 x AWG 3/0...3 x 500 kcmil aluminium/copper
