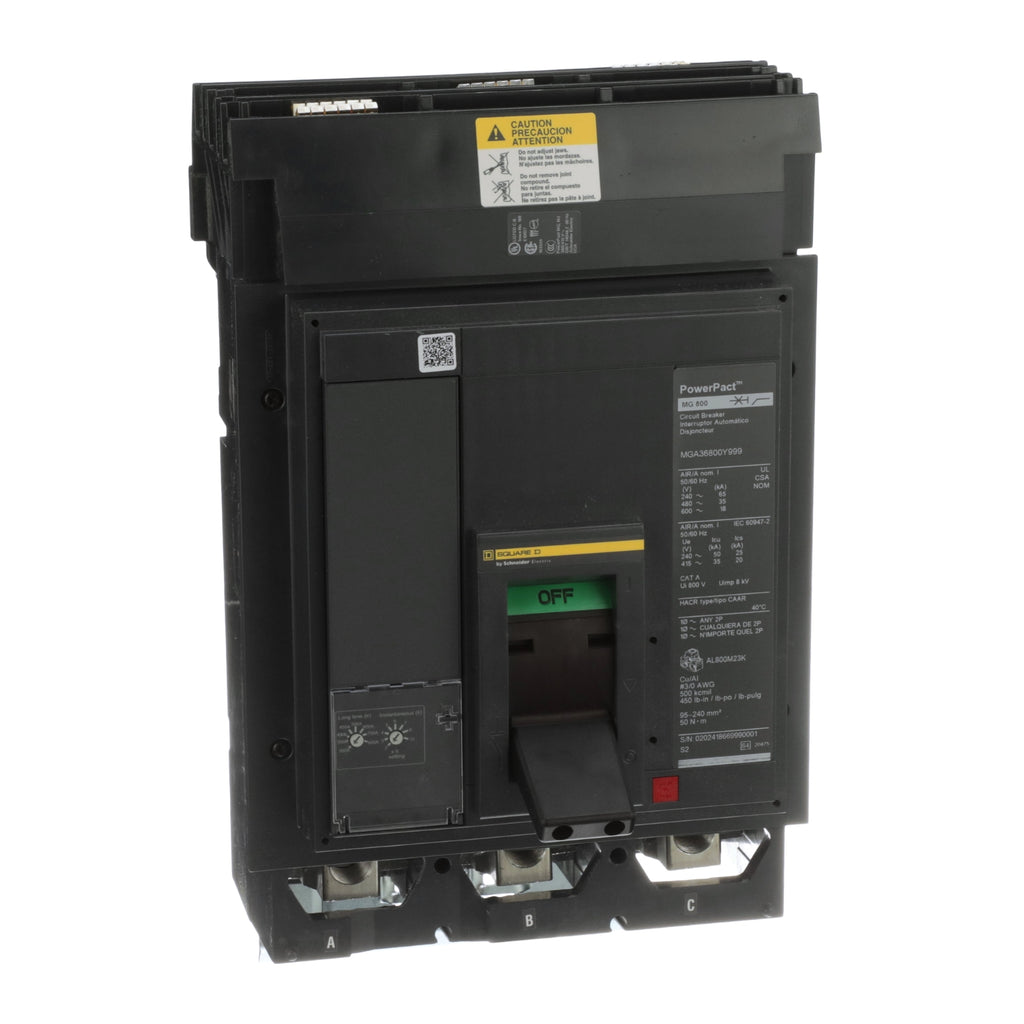

MGA36800E10 - Schneider Electric Square D 800A 600VAC 3-Pole PowerPacT M Circuit Breaker I-Line Adjustable Trip

MGA36800E10

MGA36800E10 is a Schneider Electric Square D PowerPacT M circuit breaker designed for 800 amp, 600 VAC applications with 3 poles and I-Line plug-in connection.This molded case circuit breaker features an adjustable trip unit with an 80% continuous current rating and an 18kA interrupting rating at 600 VAC. It is part of the PowerPacT M series, offering reliable protection and compatibility with common mounting holes and handle locations. The breaker is UL 480 Listed, CSA, NMX, and IEC certified, ensuring compliance with industry standards.

Key Specifications
• Amperage: 800 Amp
• Voltage: 600 VAC
• Poles: 3
• Mounting Type: I-Line Style Plug-In
• Interrupt Rating: 18kA at 600 VAC
• Series/Frame: PowerPacT M
• Trip Unit: Adjustable Trip, 80% continuous rating
• Certifications: UL 480 Listed, CSA, NMX, IEC
• Connection: I-Line plug-in
• Environmental: Packaging made with recycled cardboard, 57% recyclability potential

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: MGA36800E10
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : MGA
• Voltage : 600
• Amperage : 800
• Phase : 3
• Poles : 3
• AIC rating : 35kAIC@480V
• Connection : I-Line Style Plug-In
• Functions : Long Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Solid State
• Item QTY : 1
• Trip Type : Electronic, basic, ET 1.0,

Product Data

• UPC : 60648218518
• GTIN : 03606482185180
• Country of Origin : United States
• Dimensions : 12.86 in (326.64 mm) x 8.27 in (210.06 mm) x 8.05 in (204.47 mm) (Height x Width x Depth)
• Weight : 29 lb
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 3 x AWG 3/0...3 x 500 kcmil aluminium/copper
