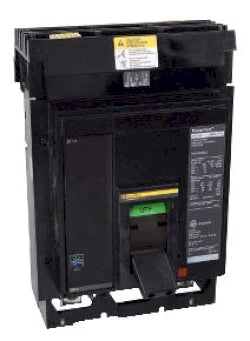

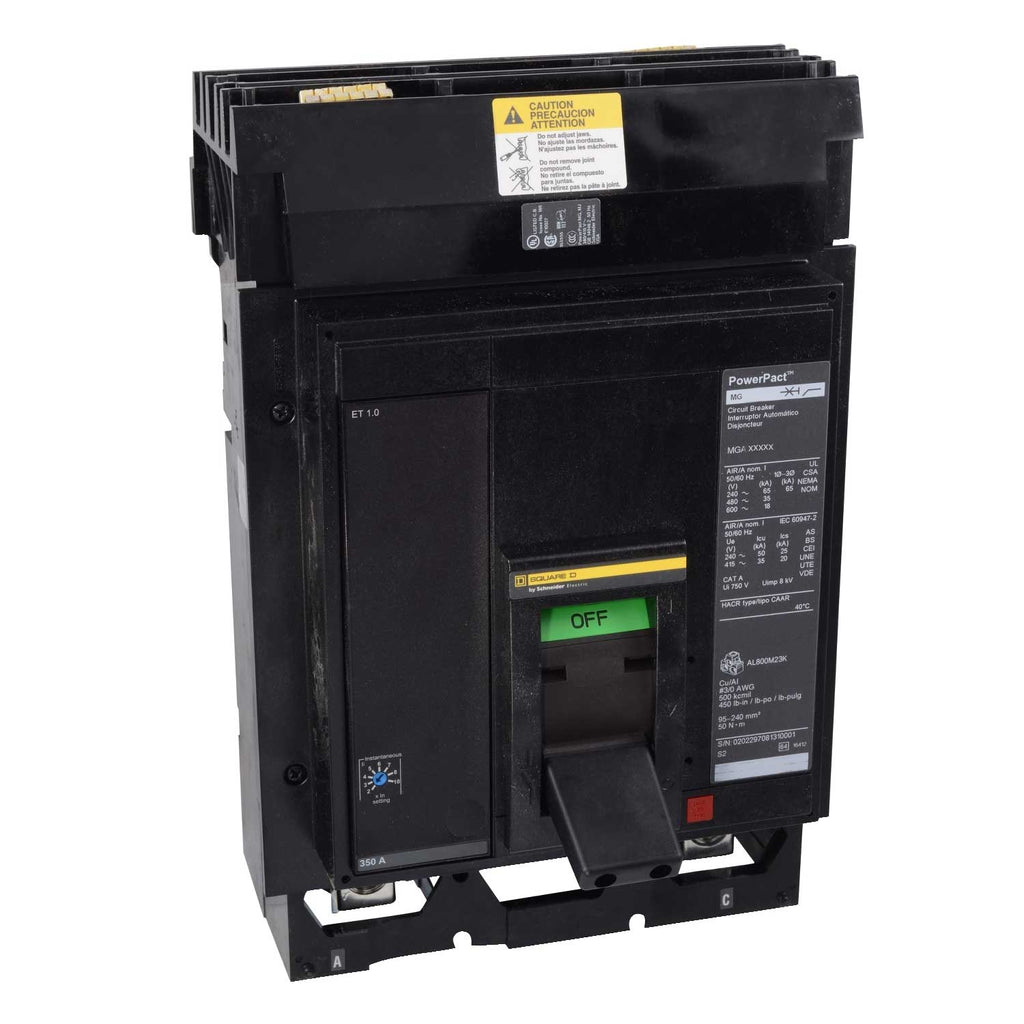

MGA36700 - Square D 700A 600V 3 Pole Molded Case Circuit Breaker M-Frame Electronic Trip

MGA36700

MGA36700 is a 3 pole molded case circuit breaker from Square D designed for power distribution with a 700 ampere rating and 600 volt maximum voltage.This Square D MGA36700 breaker features an M-frame design with electronic trip unit technology, providing reliable overload and short circuit protection for industrial and commercial applications.

Key Specifications
• Amperage: 700 Amps
• Voltage Rating: 600 VAC
• Poles: 3
• Frame Type: M-Frame
• Trip Unit: Electronic, Basic ET 1.0
• Mounting Type: Plug-On / I-Line
• Interrupt Rating: 65 kA at 240 VAC, 35 kA at 480 VAC, 18 kA at 600 VAC
• Phase: 3
• Certifications: UL Listed, CSA Certified
• NEMA Ratings: 1, 3R, 12, 4, 4X, 5
• UPC: 785901507512
• GTIN: 785901507512

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: MGA36700
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : MGA
• Voltage : 600
• Amperage : 700
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : I-Line, Lug
• Frame Size : M
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size (3) 3/0 AWG (Cu/Al) Max. Wire Size (3) 500 kcmil (Cu/Al)
• Protection : Solid State

Product Data

• UPC : 785901507512
• GTIN : 00785901507512
• Country of Origin : Mexico
• Dimensions : 12.86 in (326.64 mm) x 8.27 in (210.06 mm) x 8.05 in (204.47 mm) (Height x Width x Depth)
• Weight : 29
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 3 x AWG 3/0...3 x 500 kcmil aluminium/copper
