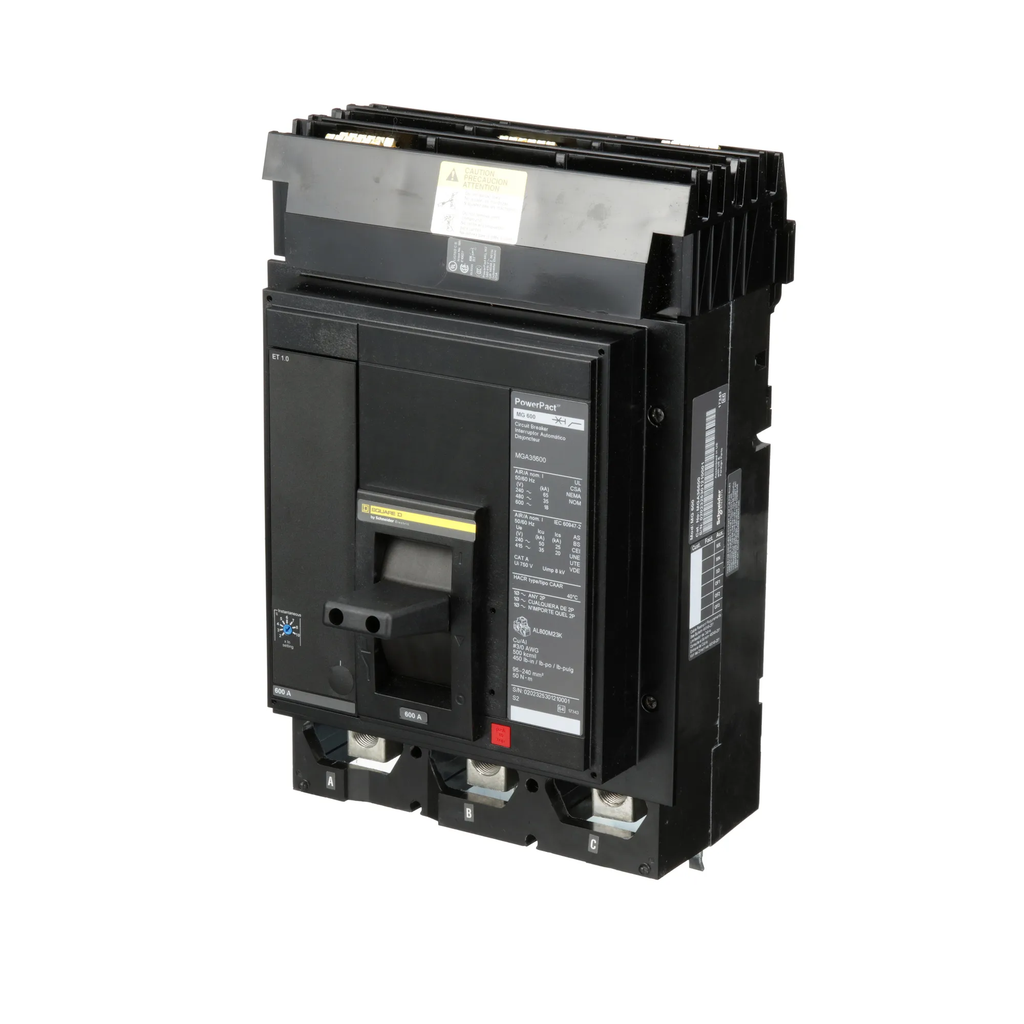

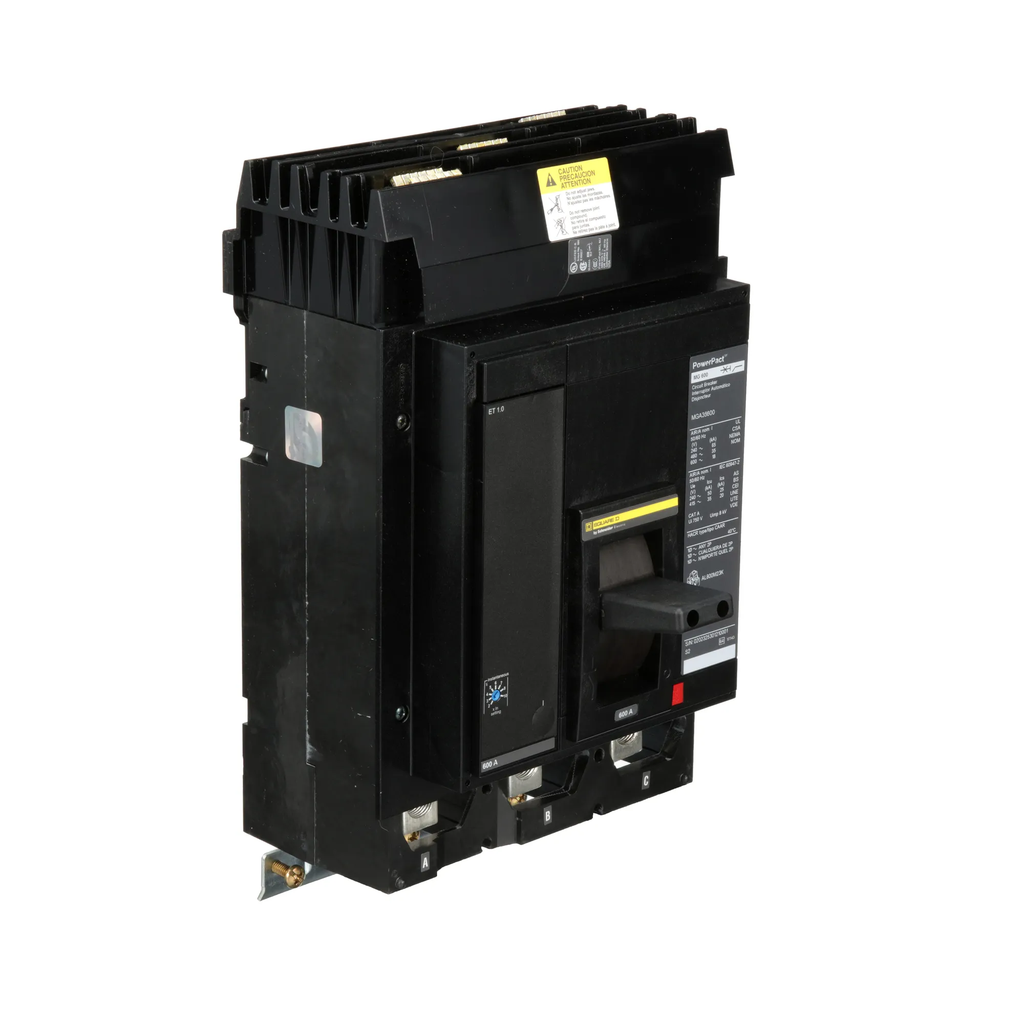

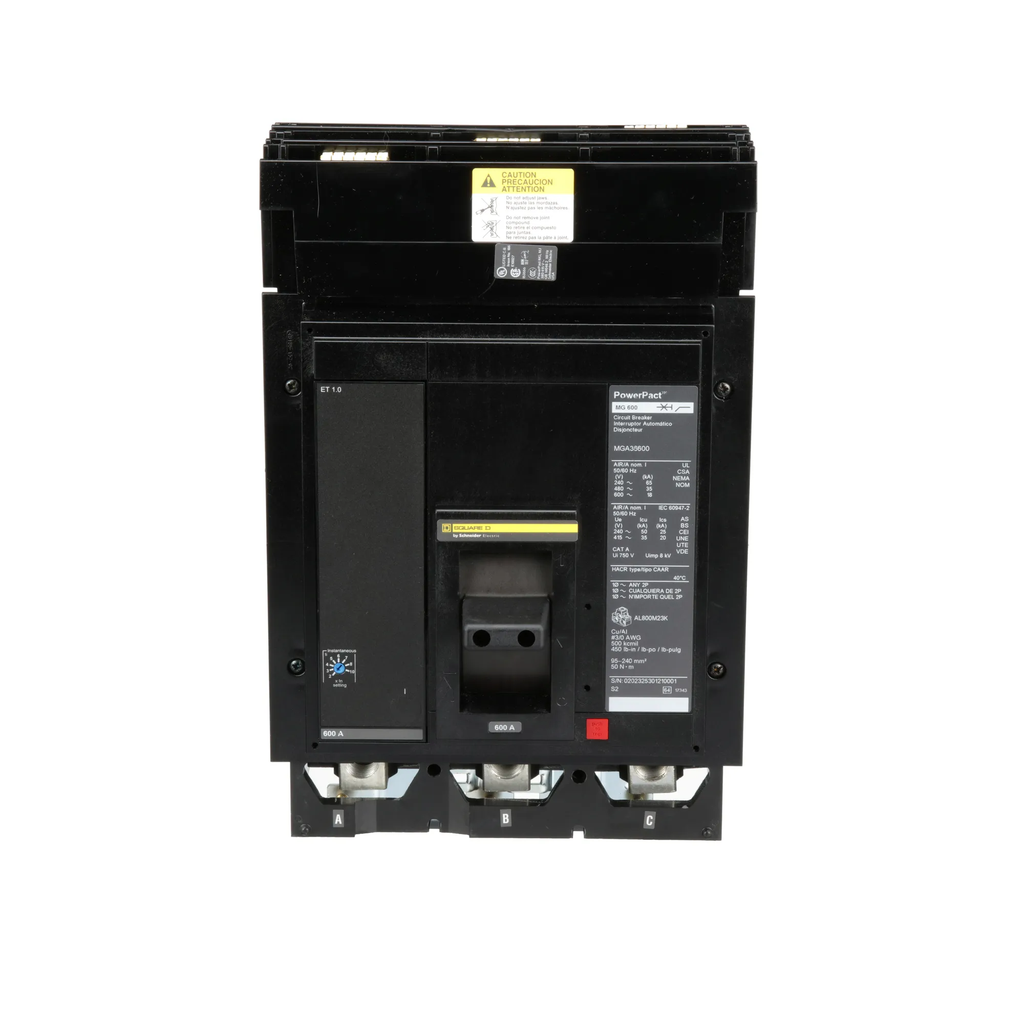

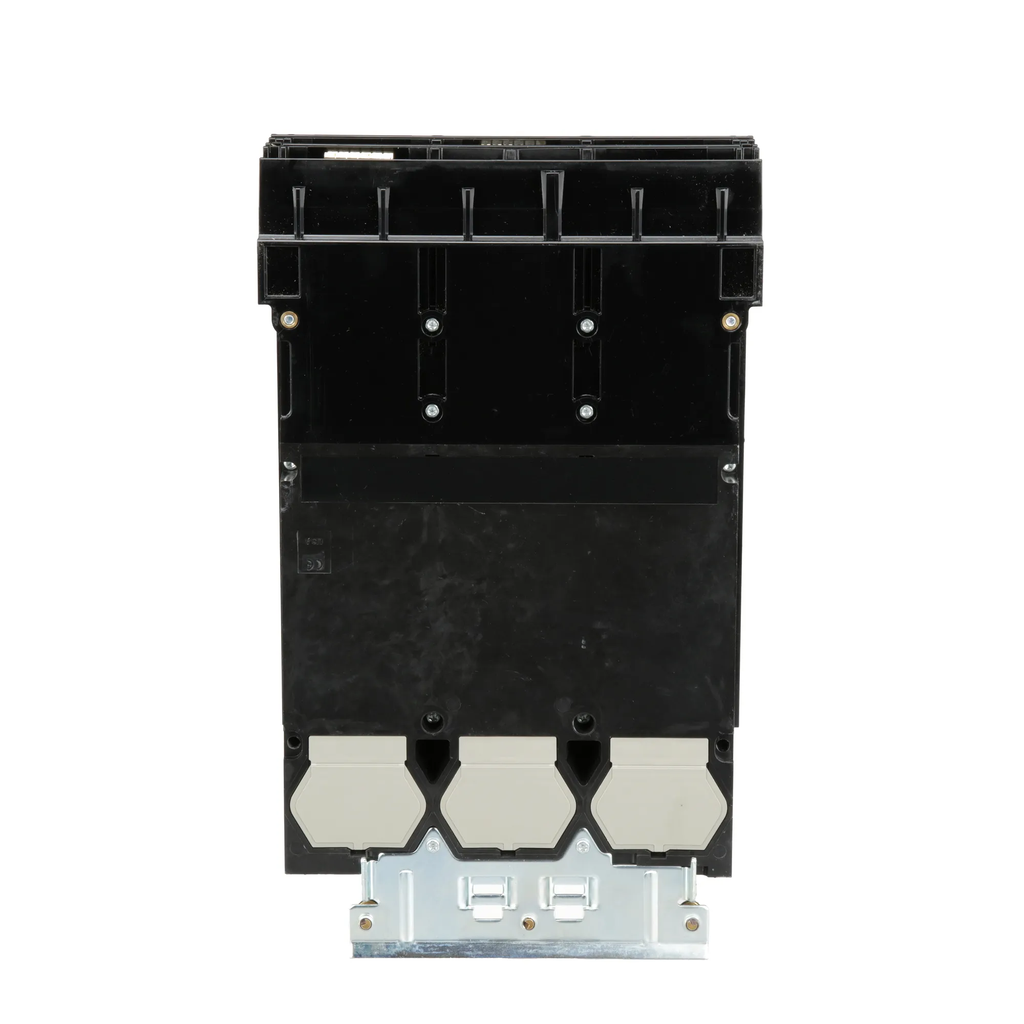

MGA36600 - Square D PowerPact M Molded Case Circuit Breaker 600A 600V 3 Pole I-Line M Frame

MGA36600

MGA36600 is a Square D PowerPact M molded case circuit breaker designed for reliable power distribution protection.This 3-pole circuit breaker features a 600 ampere rating and supports voltages up to 600 VAC. It is built on the M-frame platform with I-Line plug-on mounting, providing compatibility with standard panelboards. The breaker offers high interrupt ratings of 65 kA at 240 V, 35 kA at 480 V, and 18 kA at 600 V, ensuring robust short circuit protection. Certified to UL 489, IEC, CE, and CSA standards, it includes an 80% standard rating and common mounting holes for easy installation.

Key Specifications
• Amperage: 600 Amp
• Voltage: 600 VAC
• Poles: 3
• Mounting Type: I-Line Plug-On
• Interrupt Rating: 65 kA @ 240 V, 35 kA @ 480 V, 18 kA @ 600 V
• Frame/Series: PowerPact M Frame
• Trip Unit: Electronic (Micrologic compatible)
• Certifications: UL 489, IEC, CE, CSA
• Standard 80% rating
• Common mounting holes and handle locations
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: MGA36600
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : MGA
• Voltage : 600
• Amperage : 600
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : I-Line, Lug
• Frame Size : M
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size (3) 3/0 AWG (Cu/Al) Max. Wire Size (3) 500 kcmil (Cu/Al)
• Protection : Solid State



Product Data

• UPC : 785901428749
• GTIN : 00785901428749
• Country of Origin : United States

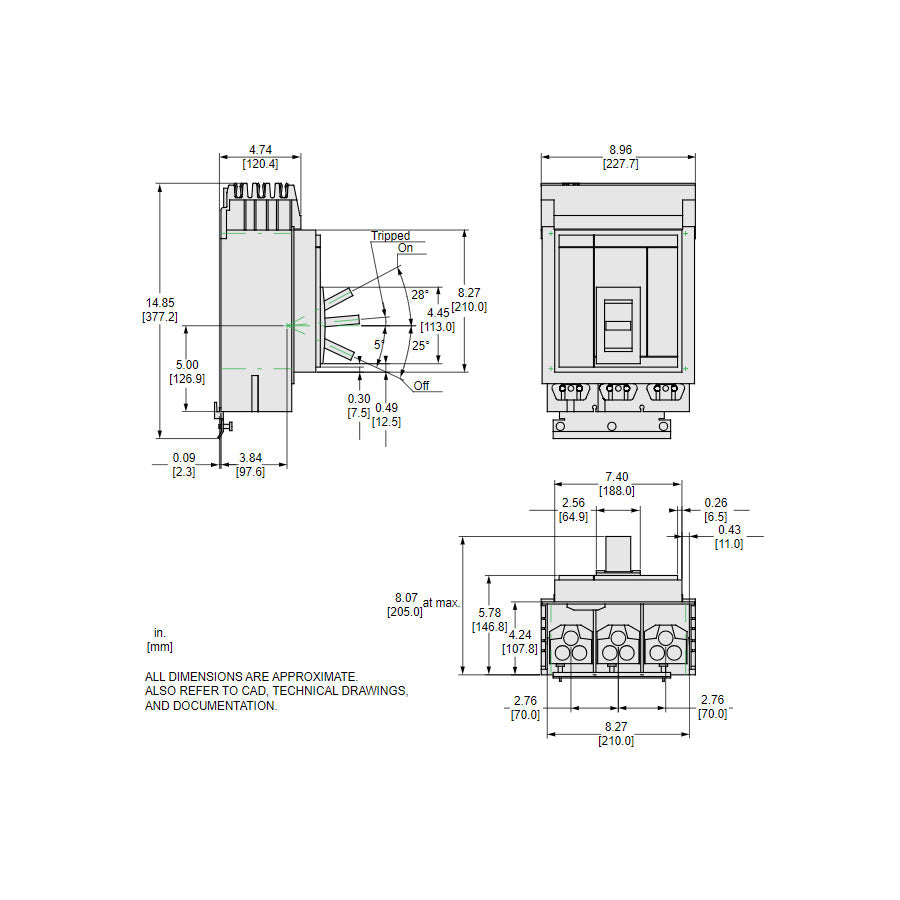

• Dimensions : 12.86 in (326.64 mm) x 8.27 in (210.06 mm) x 8.05 in (204.47 mm) (Height x Width x Depth)
• Weight : 28.7
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 3 x AWG 3/0...3 x 500 kcmil aluminium/copper
