MG3A0750RBSCHC0 - Hammond Power Solutions 750 kVA 3-Phase Transformer 2400V Primary 208Y/120V Secondary Type 3R Enclosure DOE 2016/NRCan 2019

Authorized Distributor - Hammond
Save $19,439.53
SKU: MG3A0750RBSCHC0-New
Condition: New
Price:
$43,690.47 $63,130.00
Stock:
Low inventory, please call for stock check
Factory Lead Time: 178-190 Working Days - (Non-Returnable) business days. Ships based on manufacturer availability when out of stock. All factory-ordered products are non-cancelable and non-returnable.

💡 Important Notice for Hammond Transformers

Hammond Transformer products are Non-Cancellable and Non-Returnable.

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

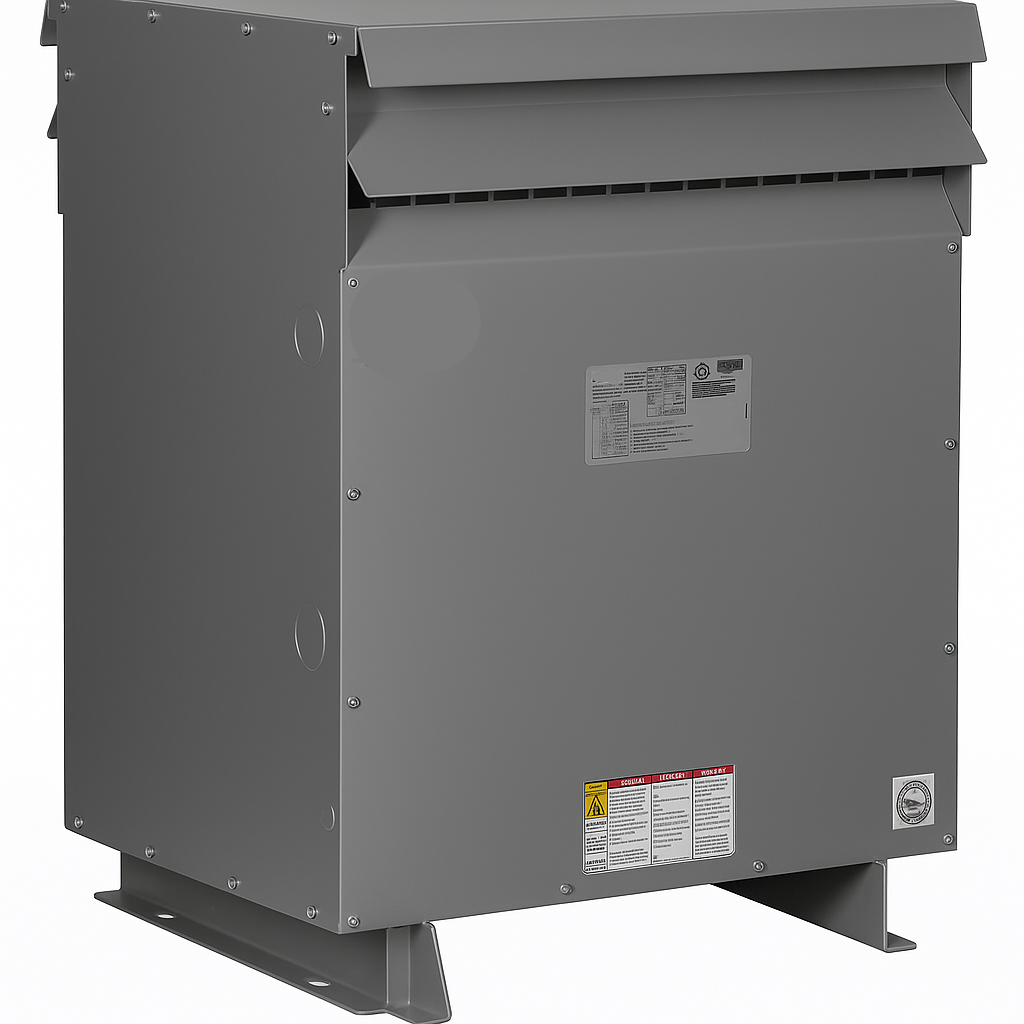

Hammond Power Solutions MG3A0750RBSCHC0 - 3-Phase Transformer 750kVA (208Y/120V) - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
Hammond Power Solutions MG3A0750RBSCHC0 - 3-Phase Transformer 750kVA (208Y/120V) - Essential Electric Supply

Description

MG3A0750RBSCHC0


MG3A0750RBSCHC0 is a 750 kVA 3-phase transformer by Hammond Power Solutions designed for medium voltage power distribution with a 2400V primary and 208Y/120V secondary voltage configuration in a Type 3R enclosure.This transformer features copper windings and meets DOE 2016 and NRCan 2019 energy efficiency standards. It is enclosed in a heavy-duty Type 3R rated enclosure suitable for outdoor use, providing protection against rain and environmental elements. The unit is designed for reliable performance in commercial and industrial applications requiring efficient voltage transformation and robust construction.
  • Manufacturer: Hammond Power Solutions
  • Part Number: MG3A0750RBSCHC0
  • Capacity: 750 kVA
  • Phase: 3-Phase
  • Primary Voltage: 2400V
  • Secondary Voltage: 208Y/120V
  • Enclosure Type: Type 3R (Outdoor Rated)
  • Winding Material: Copper
  • Energy Efficiency: DOE 2016 / NRCan 2019 Compliant
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: MG3A0750RBSCHC0
  • Manufacturer : Hammond Power Solutions
  • Brand : Hammond Power Solutions
  • Category : Transformer
  • Phase : 3
  • Enclosure Grade : Standard
  • Duty : General Duty
  • Frequency : 60Hz
  • Primary Voltage : 2400D
  • Primary Connection : Delta
  • Secondary Voltage : 208Y/120
  • Secondary Connection : Wye-N
  • Temperature Rise : 150°C
  • Insulation Class : 220°C
  • EKVA : 750
  • Efficiency Regulation : DOE 2016 (US), NRCAN 2019 (Canada), NMX 2021 (Mexico)
  • Seismic Compliance : IBC 2018 (Sds=2.0, z/h=0, lp=1.5)
  • Sound Level : 64 dBA (IEEE C57.12.01)
  • Impedance (Std) : 4% - 7.5%
  • Enclosure Type : Type 3R / IP24
  • Enclosure Finish : ANSI 61 Grey, UL50
  • Enclosure Dimensions : 82in/2083mm(H), 68in/1728mm(W), 47in/1194mm(D)
  • Nameplate : Standard
  • Standard kVA : 750
  • Vector Configuration : Dyn1 (-30°)
  • Seismic Standard Value : IBC 2018
  • OSHPD : No
  • Seismic IP : lp=1.5
  • Seismic ZH : z/h=0
  • Seismic SDS Value : Sds=2.0
  • Enclosure IR Window : No
  • Primary FCAN (Std) : 2x2.5%
  • Primary Termination (Std) : Mounting Pads

Product Data

  • UPC : 803423134051
  • Weight : 1600
  • Certification : CSA, UL
